• Model NO.：DVP-740
• Transport Package：Cartob Box
• Specification：As in Description
• Trademark：ALK
• Origin：Wuhan, China
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. DVP-740 Transport Package Cartob Box Specification As in Description Trademark ALK Origin Wuhan, China Production Capacity 1000 Sets/Month

Product Description

DVP-740 Single Fiber Fusion Splicer

Features

Compact & Light weight
Fully Automatic Operation
5000m altitude ensures Splice Quality
SYSTEM TEST ensures the best working condition
Color LCD monitor
Pause function, convenient for scientific research
Store 8000 groups of splice results
USB&DC interface
High battery capacity, up to 120 times of continuous splice and heat

Specifications


Applicable fibers	SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.
Fiber cleaved length	8-22mm
Average splice loss	0.02dB(SM),0.01dB(MM),0.05dB(DS),0.04dB(NZDS)
Return loss	≥60dB
Tension test	2.0N(200gf)(Standard)
Protection sleeve length	20mm, 40mm, 60mm  and more .
Splice Program	15 groups of preset programs, 1 group of manual setting
Language	English, Chinese, Korean, Russian, Spanish, Portuguese, German, French
Environment conditions	-25 ~ + 50ºC (operation temperature), 0 ~ 95%RH (humidity), 0 ~ 5000m (altitude)
Storage environment	-40~ +80ºC (temperature) , 0~95%RH (humidity)
Power supply	AC adaptor: 85~260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat
Dimensions/Weight	142(D)×122(W)×138(H)mm/1.95kg (with battery)

Standard Package

Fusion Splicer, Internal Battery, Charger, Spare Electrodes, Cooling Tray, Manual Instruction, Carry Case, Fiber Cleaver, Fiber Stripper, AC Adaptor, AC Power Cord

Guarantee period and limits
If the splicer becomes out of order within one year from the date of delivery, we will repair it free of charge. However, note that repairs will be charged for in the following cases regardless of the guarantee period:
(1)Trouble or damage due to natural disaster.
(2)Trouble or damage due to abnormal voltage supply.
(3)Trouble or damage due to mishandling.
(4)Trouble or damage due to handling in disregard of the operating procedures or instructions described in the instruction manual.
(5)Consumable items(discharge electrodes etc.)
2.Before sending the splicer, Please consult nearest us first.
3.Necessary information for the repair.
Attach papers to the splicer in order to inform us of details as described below.
(1) Your full name, section, division, company, address ,phone number, fax number and e-mail address.
(2)Model name and serial number of the splicer.
(3)Encountered Trouble
   ·What state did your splicer get into and when?
   ·What is its present state?
   ·The state of the monitor and the contents of the relevant error message.

Warnings and Cautions for transportation

Fiber fusion splicer is a precision machine, via a exactitude adjust and level. Do not come under strong shake or collide or else work mangle. Using the carrying case transportation or storing, The carrying case be capable of protect the facility prevent mangle,Shake,Concussion.
Check the belt and pothook before used the belt schlep , Or else induce the person damage or the facility mangle.
Do not set the fusion splicer at a instability or lopsided station, Or else be able to lose the facility balance and induce mangle.
If consign the equipment facility, Put in the carrying case and detach bale of the battery, When bale, The fusion splicer placed upwards and indicate the upwards mark, And inform the shipper item in time. For example: moisture-proof,Fireproofing,Defend high temperature,Defend inversion,Defend collide



Related Products


Item No.	Name	Specification	Package	Ref.picture
T1001	Kevlar scissors	WL-9011Z	1PCS/BOX

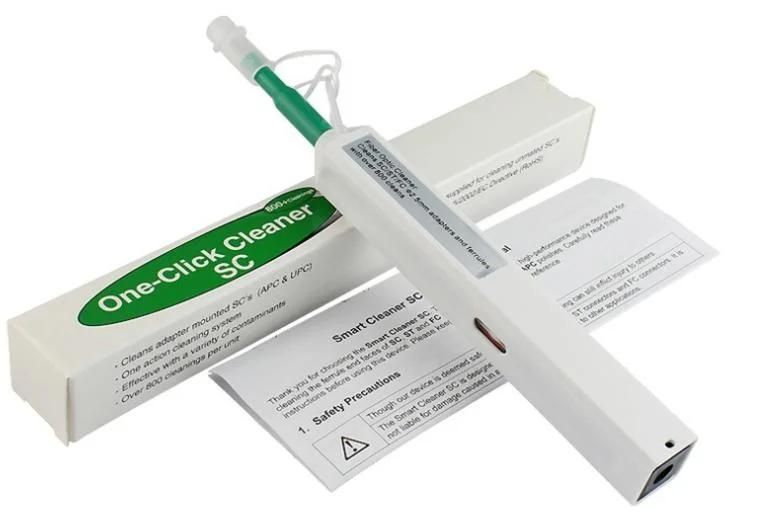

T1008	Fiber optic cleaner	Clean SC/ST/FC Φ2.5mm adapters and ferrules	1 PC/Box

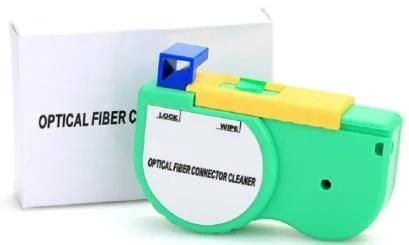

T1009	Fiber optic connector cleaner	Clean FC/SC/ST/E2000,LC/MU,MT etc.	2 PC/Box

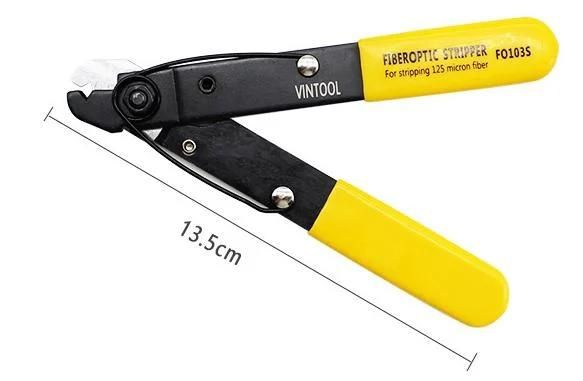

T1010	Fiber Optic Stripper	For 125μm Fiber	1 PC/box

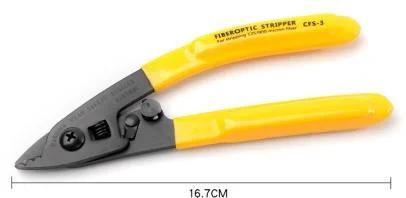

T1011	Fiber Optic Stripper	For 125/900μm Fiber	1 PC/box

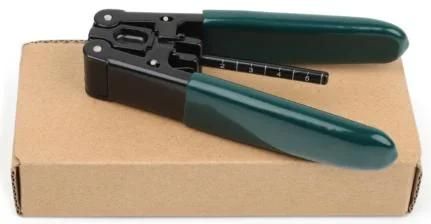

T1012	Fiber Optic Stripper	For 3.0×2.0mm Fiber Cable	1 PC/box

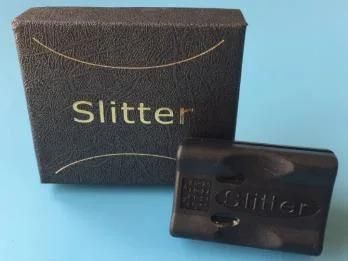

T1014	Fiber optic slitter (Longitudinal type)	For stripping fiber optice tubes of 1.5~1.9 mm,2.0~2.4mm,2.5~2.9mm,3.0~3.3mm	1 PC/box

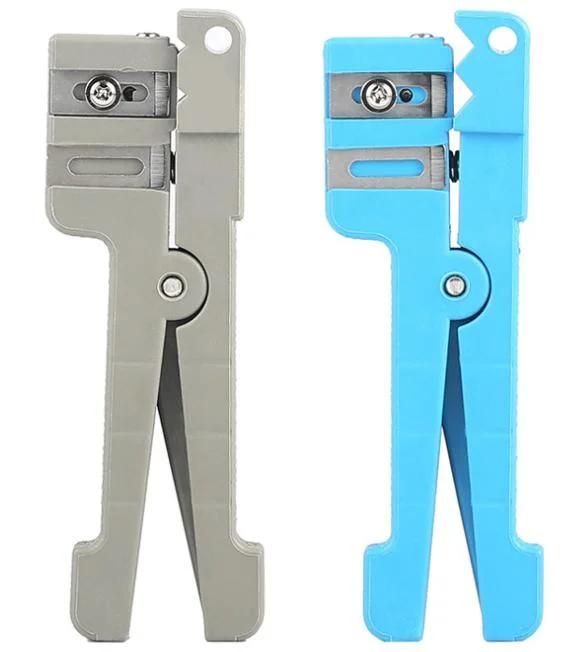

T1015	Fiber optic slitter (Transverse  type)	For stripping fiber 3.2mm-5.6mm	1 PC/box

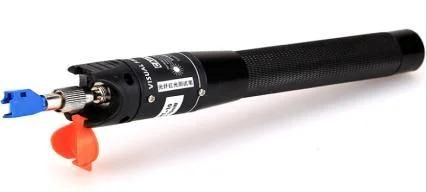

T1017	Visual Fault Locator	20kM

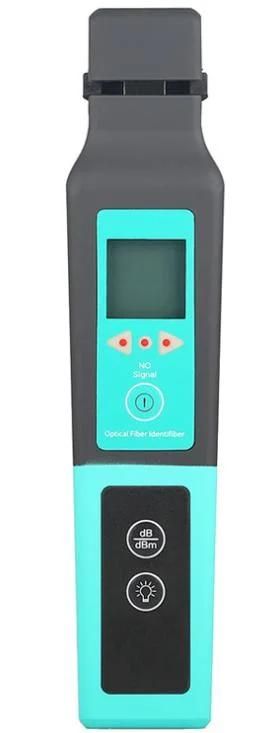

T1021	Optical Fiber Identifier	80nm-1700nm	1PC/Box

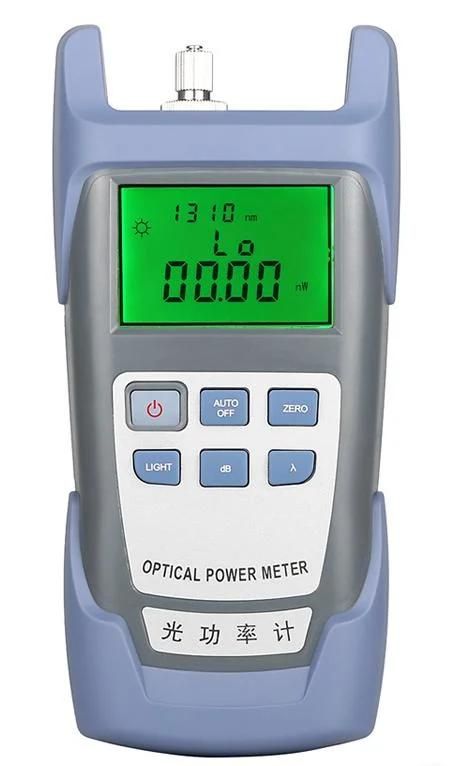

T1022	Optical Power Meter	850/980/1300/1310/1490/1550/1625nm	1PC/Box

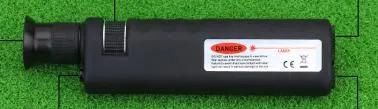

T1023	400 Times Optical Fiber Magnifier	To check SC-FC-ST	1PC/Box
