72 Core ADSS Long Span Aramid Yarn Optic Fiber Cable

DONGGUAN TW-SCIE CO., LTD.
  • Application：Communication, Art, Sensor, Medicine, Probe, Glass Fiber
  • Type：Single More or Multimode
  • Connection Structure：Fiber Optic Cable
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：ADSS fiber optic cable
  • Core：Double Core
  • Certification：RoHS, ISO9001, Reach
  • Brand：OEM or Tw-Scie
  • Sheath Material：LSZH, HDPE, MDPE
  • Number of Core：72 Core ADSS
  • Strength Member：Aramid Yarn
  • Span Length：50m-1000m
  • Wind Speed：25m,S-35m,S
  • Outer Jacket：Black PE
  • Central Strengthen Member：FRP
  • Material of Loose Tube：PBT Multi Loose Tubes
  • Water Blocking System：Filling Compound,Dry Water Resistant
  • Transport Package：Wooden Drum
  • Specification：SGS ROHS REACH ISO
  • Trademark：TW-SCIE or OEM
  • Origin：Dongguan, China
  • HS Code：8544700000
  • Production Capacity：150km,Day

Description

Fiber count12FSpan length100mt
SM fiberFiber typeG652DConcentricity error≤0.5umMFD8.6~9.8umCladding non-circularity≤0.7%Cladding diameter124.8±0.7umFiber colorstandard spectrumCentral strength memberMaterialFRPDiameter2.0mmLoose TubeMaterialPBTDiameter2.0mmTube-fillingMateialFilling compoundWater blocking systemMateialFilling gelInner sheathMateialPEThickness1.0±0.05mmOuter strength memberMaterialKevlar yarnOuter SheathMaterialPEColorblackDiameter12.5±0.3mmThickness

2.0±0.05mm


5. Cable mechanical and environment chararcteristics

Maximum Tensile strength3000NExtra load0.5%-0.7%Wind speed45m/sIce5mmTemperature-40ºC~+70ºC


6. Fiber characteristics

Attenuation1310um≤0.36dB/km1550um≤0.22dB/km

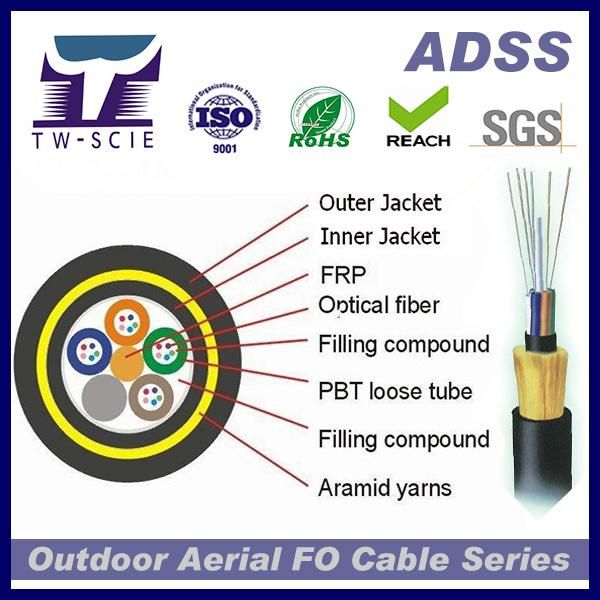

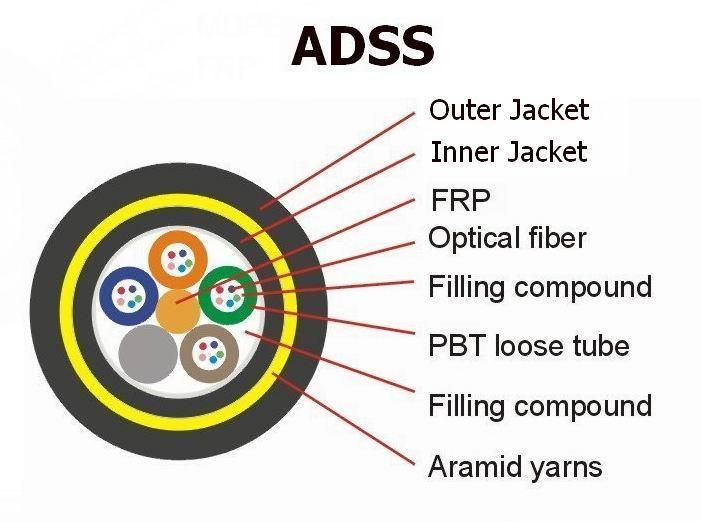

Structure Chart:
72 Core ADSS Long Span Aramid Yarn Optic Fiber Cable

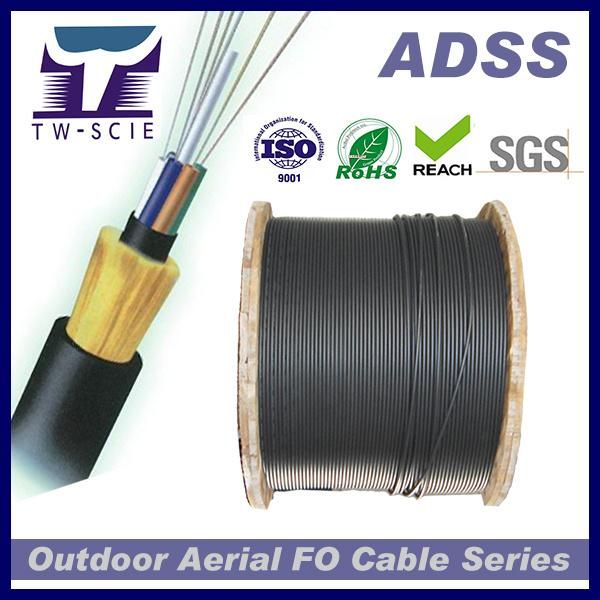

More Pictures:

72 Core ADSS Long Span Aramid Yarn Optic Fiber Cable72 Core ADSS Long Span Aramid Yarn Optic Fiber Cable


24 Core Span=300meter Dielectric Optical Cable (ADSS)

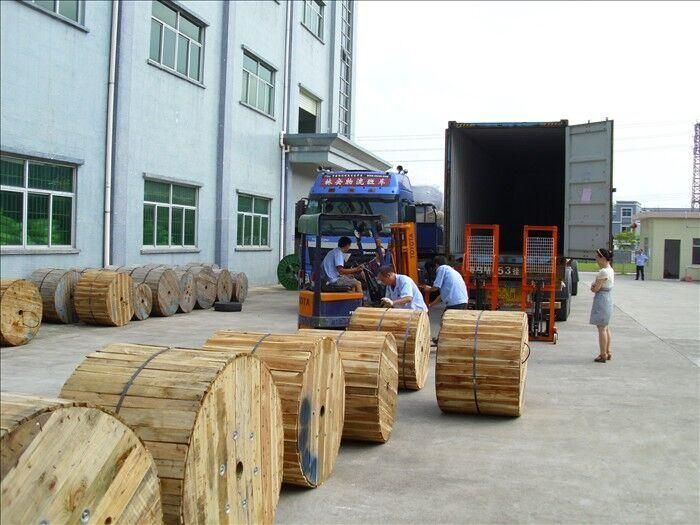

7. Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.

72 Core ADSS Long Span Aramid Yarn Optic Fiber Cable
