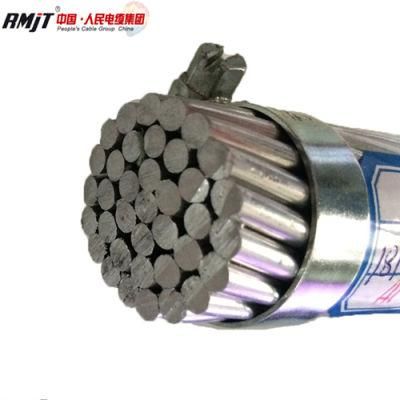

AAAC Conductor GB/T 1179-2008 Standard 120mm2 300mm2
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum Alloy
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：aaac conductor
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CCC, SGS BV
- Brand：Rmjt
- OEM：Yes
- Produceing Experience：More Than 30years
- Production Time：7-30days
- Test Support：SGS BV
- Transport Package：Export Drum
- Specification：1,0 2,0 3,0 4,0
- Trademark：RMJT
- Origin：Henan
- HS Code：761490000
- Production Capacity：3000km,Week
Description
Code NameArea Size & Stranding of ACSR with Equal Diameter No. & Diameter of wires Overall Diameter Weight Nominal Breaking Load Nominal Actual MCM mm2 AWG or MCM Al/Steel mm mm kg/km kN Akron 30.58 15.48 6 6/1 7/1.68 5.04 42.7 4.92 Alton 48.69 24.71 4 6/1 7/2.12 6.35 68.0 7.84 Ames 77.47 39.22 2 6/1 7/2.67 8.02 108 12.45 Azusa 123.3 62.38 1/0 6/1 7/3.37 10.11 172 18.97 Anaheim 155.4 78.65 2/0 6/1 7/3.78 11.35 217 23.93 Amherst 195.7 99.22 3/0 6/1 7/4.25 12.75 273 30.18 Alliance 246.9 125.1 4/0 6/1 7/4.77 14.31 345 38.05 Butte 312.8 158.6 266.8 26/7 19/3.26 16.30 437 48.76 Canton 394.5 199.9 336.4 26/7 19/3.66 18.30 551 58.91 Cairo 465.4 235.8 397.5 26/7 19/3.98 19.88 650 69.48 Darien 559.5 283.5 477.0 26/7 19/4.36 21.79 781 83.52 Elgin 652.4 330.6 556.5 26/7 19/4.71 23.54 911 97.42 Flint 740.8 375.3 636.0 26/7 37/3.59 25.16 1035 108.21 Greely 927.2 469.8 795.0 26/7 37/4.02 28.14 1295 135.47
IEC 61089Code NumberA2 Conductor A3 Conductor Max.D.C. Resistance of Conductor at 20ºC Number of Wires Diameter of Wires Diameter of Conductor Approx. Weight Rated Strength Number of Wires Diameter of Wires Diameter of Conductor Approx. Weight Rated Strength mm² - mm mm kg/km daN - mm mm kg/km daN Ω/km 16 7 1.83 5.49 50.4 5.43 7 1.84 5.52 50.8 6.04 1.7896 25 7 2.29 6.87 78.7 8.49 7 2.30 6.9 79.5 9.44 1.1453 40 7 2.89 8.67 125.9 13.58 7 2.91 8.73 127.1 15.1 0.7158 63 7 3.63 10.8 198.3 21.39 7 3.65 10.95 200.2 23.06 0.4545 100 19 2.78 13.9 316.3 33.95 19 2.79 13.95 319.3 37.76 0.2877 125 19 3.10 15.5 395.4 42.44 19 3.12 15.6 399.2 47.20 0.2302 160 19 3.51 17.55 506.1 54.32 19 3.53 17.65 511.0 58.56 0.1798 200 19 3.93 19.65 623.7 67.91 19 3.95 19.75 638.7 73.20 0.1439 250 19 4.39 21.95 790.8 84.68 19 4.41 22.05 798.4 91.50 0.1151 315 37 3.53 24.71 998.9 106.95 37 3.55 24.85 1008.4 115.29 0.0916 400 37 3.98 27.86 1268.4 135.81 37 4.0 28 1280.5 146.4o 0.0721 450 37 4.22 29.54 1426.9 152.79 37 4.24 29.68 1440.5 164.70 0.0641 500 37 4.45 31.15 1585.5 169.76 37 4.47 31.29 1600.6 183.oo 0.0577 560 61 3.67 33.03 1778.4 190.14 61 3.69 33.21 1795.3 204.95 0.0516 630 61 3.89 35.01 2000.7 213.90 61 3.91 35.19 2019.8 230.58 0.0458 710 61 4.13 37.17 2254.8 241.07 61 4.15 37.35 2276.2 259.86 0.0407 800 61 4.38 39.42 2540.6 271.62 61 4.4 39.6 2564.8 282.80 0.0361 900 91 3.81 41.91 2861.1 305.58 91 3.83 42.13 2888.3 329.40 0.0321 1000 91 4.01 44.11 3179.0 339.53 91 4.03 44.33 3209.3 366.00 0.0289 1120 91 4.25 46.75 3560.5 380.27 91 4.27 46.97 3594.4 409.92 0 0258 1250 91 4.49 49.39 3973.7 424.41 - - - -
BS EN50183
Din 48201

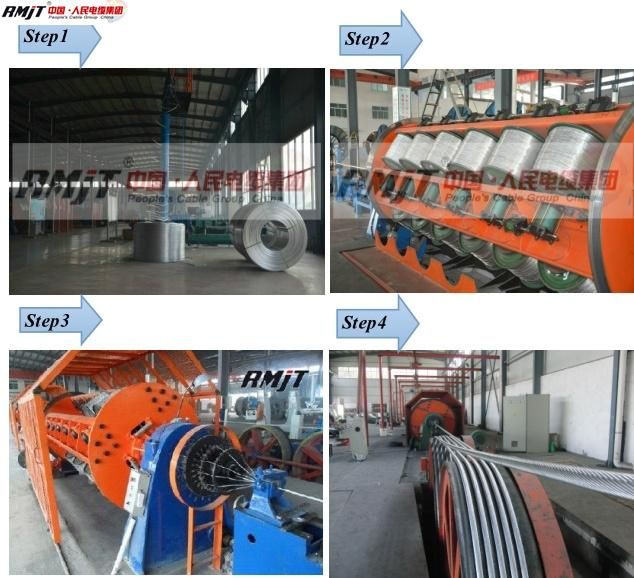

Production process

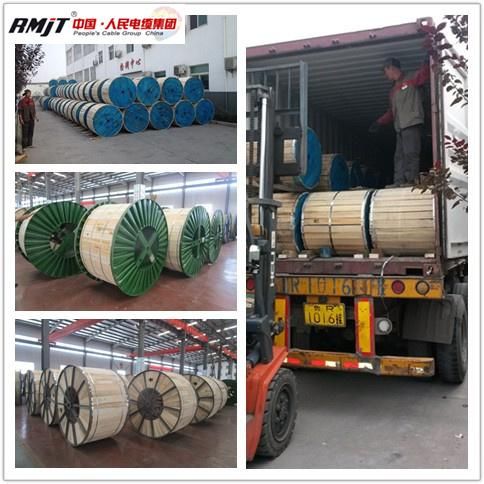

Package
Package in Export Wooden or Steel Wooden or Steel Drums

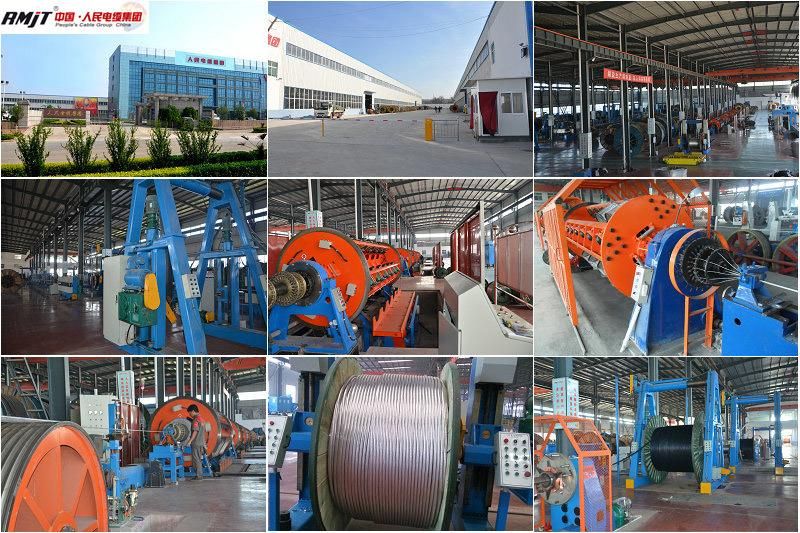

About us
We were founded in 2007, located in Gongyi Henan,China. We have 2 factories (Headquarters Factory-produce insulated cables and Zhulin branch-produce bare conductors), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Contact us
Sara Liu
TEL: +86-371-55632825
Mobile: +86 13526585094
Wtap: 008613526585094
IEC 61089Code Number
BS EN50183
| Code Name | Calculated Cross Section | No..Dia.of Wires | Overall Diameter | Weight | Rated Strength |
| mm² | No./mm | mm | kg/km | kN | |
| Box | 18.8 | 7/1.85 | 5.55 | 51.4 | 5.55 |
| Acacia | 23.8 | 7/2.08 | 6.24 | 64.9 | 7.02 |
| Almond | 30.1 | 7/2.34 | 7.02 | 82.2 | 8.88 |
| Cedar | 35.5 | 7/2.54 | 7.62 | 96.8 | 10.46 |
| Deodar | 42.2 | 7/2.77 | 8.31 | 115.2 | 12.44 |
| Fir | 47.8 | 7/2.95 | 8.85 | 130.6 | 14.11 |
| Hazel | 59.9 | 7/3.30 | 9.90 | 163.4 | 17.66 |
| Pine | 71.6 | 7/3.61 | 10.8 | 195.6 | 21.14 |
| Holly | 84.1 | 7/3.91 | 11.7 | 229.5 | 24.79 |
| Willow | 89.7 | 7/4.04 | 12.1 | 245,0 | 26.47 |
| Oak | 118.9 | 7/4.65 | 14.0 | 324.5 | 35.07 |
| Mulberry | 150.9 | 19/3.18 | 15.9 | 414.3 | 44.52 |
| Ash | 180.7 | 19/3.48 | 17.4 | 496.1 | 53.31 |
| Elm | 211.0 | 19/3.76 | 18.8 | 579.2 | 62.24 |
| Poplar | 239.4 | 37/2.87 | 20.1 | 659.4 | 70.61 |
| Sycamore | 303.2 | 37/3.23 | 22.6 | 835.2 | 89.40 |
| Upas | 362.1 | 37/3.53 | 24.7 | 997.5 | 106.82 |
| Yew | 479.0 | 37/4.06 | 28.4 | 1319.6 | 141.31 |
| Totara | 498.1 | 37/4.14 | 29.0 | 1372.1 | 146.93 |
| Rubus | 586.9 | 61/3.50 | 31.5 | 1622.0 | 173.13 |
| Sorbus | 659.4 | 61/3.71 | 33.4 | 1822.5 | 194.53 |
| Araucaria | 821.1 | 61/4.14 | 37.3 | 2269.4 | 242.24 |
| Redwood | 996.2 | 61/4.56 | 41.0 | 2753.2 | 293.88 |
Din 48201
| Code number | Calculated area | Number of wires | Diameter of wire | Overall diameter of conductor | Linear mass | Rated tensile strength | Max. DC resistance at 20ºC |
| mm2 | mm2 | mm | mm | kg/km | daN | Ω/km | |
| 16 | 15.89 | 7 | 1.70 | 5.1 | 43 | 444 | 2.0910 |
| 25 | 24.25 | 7 | 2.10 | 6.3 | 66 | 677 | 1.3703 |
| 35 | 34.36 | 7 | 2.50 | 7.5 | 94 | 960 | 0.9669 |
| 50 | 49.48 | 7 | 3.00 | 9.0 | 135 | 1382 | 0.6714 |
| 50 | 48.35 | 19 | 1.80 | 9.0 | 133 | 1350 | 0.6905 |
| 70 | 65.81 | 19 | 2.10 | 10.5 | 181 | 1838 | 0.5073 |
| 95 | 93.27 | 19 | 2.50 | 12.5 | 256 | 2605 | 0.3579 |
| 120 | 116.99 | 19 | 2.80 | 14.0 | 322 | 3268 | 0.2854 |
| 150 | 147.11 | 37 | 2.25 | 15.8 | 406 | 4109 | 0.2274 |
| 185 | 181.62 | 37 | 2.50 | 17.5 | 500 | 5073 | 0.1842 |
| 240 | 242.54 | 61 | 2.25 | 20.3 | 670 | 6774 | 0.1383 |
| 300 | 299.43 | 61 | 2.50 | 22.5 | 827 | 8363 | 0.1120 |
| 400 | 400.14 | 61 | 2.89 | 26.0 | 1104 | 11176 | 0.0838 |
| 500 | 499.63 | 61 | 3.23 | 29.1 | 1379 | 13960 | 0.06709 |
| 625 | 626.20 | 91 | 2.96 | 32.6 | 1732 | 17490 | 0.0540 |
| 800 | 802.09 | 91 | 3.35 | 36.9 | 2218 | 22402 | 0.0418 |
| 1000 | 999.71 | 91 | 3.74 | 41.1 | 2767 | 27922 | 0.0335 |
Production process
Package
Package in Export Wooden or Steel Wooden or Steel Drums
About us
We were founded in 2007, located in Gongyi Henan,China. We have 2 factories (Headquarters Factory-produce insulated cables and Zhulin branch-produce bare conductors), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
