• Model NO.：rg174
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO
• Model：RG6
• Brand：OEM
• Item：5c2V RG6 Communication Cable
• Transport Package：Carton
• Specification：1.02mm
• Trademark：OEM
• Origin：Hangzhou, China
• HS Code：8544200000
• Production Capacity：50000km,Year

Overview

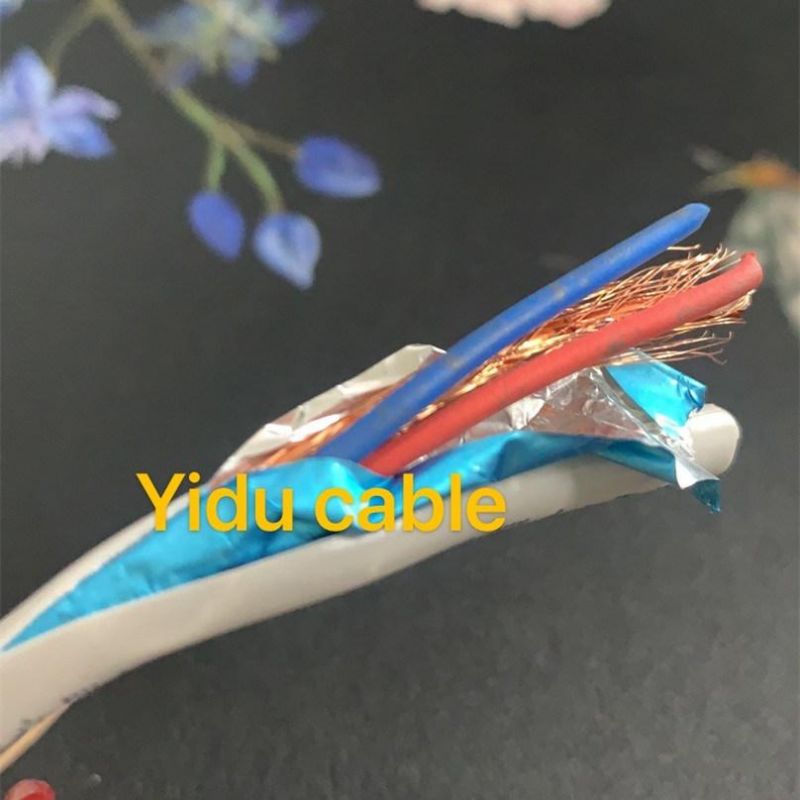

Detailed Photos





Product Description



Product Specification


RG6/RG6U coaxial cable specifications

Material of Inner Conductor

Bare Copper, CCS

Structure of Inner Conductor

1/1.02mm

Material of Insulation

Foam PE

Diameter of Insulation

4.57mm

1^st Shielding

Aluminum Foil

Material of Braiding(2nd Shielding)

CCA,  Bare Copper, Tinned Copper

Structure of Braiding

128/112/96/64/48/32*0.12mm

Material of Jacket

PVC

Diameter of Jacket

7.10mm

Working temp

-40ºC/80ºC

Impedance

75Ω±2

RG59 / RG59 2C  cable SpecificationCenter conductor

Copper Clad Steel,Bare Copper,Tinned Copper

Al-foil

Unbonded AP,Bonded AP,APA

Braiding wire

AL_MG, Bare Copper,Tinned Copper

Braiding wire diameter0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
 Braiding net32#, 48#, 64#, 72#, 80#, 96#, 120#, 128#, 144# and more available
 Braiding coverageBetween 30% - 100% available
 PVC jacket

Flame resistant, UV,or UL available

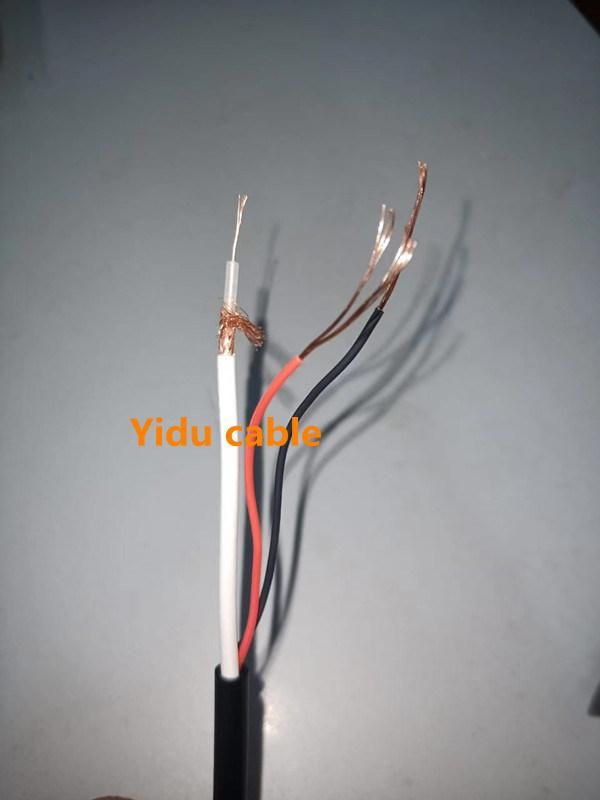

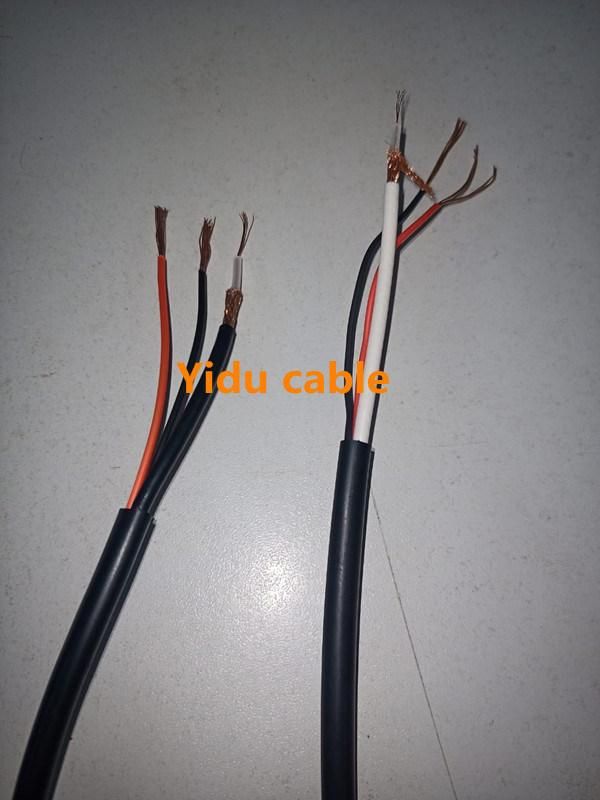

With Siamese

2*15*0.15mm, 2*18*0.18mm,2*7*0.38mm, CCA/BC/Tinned Copper



Installation Instructions

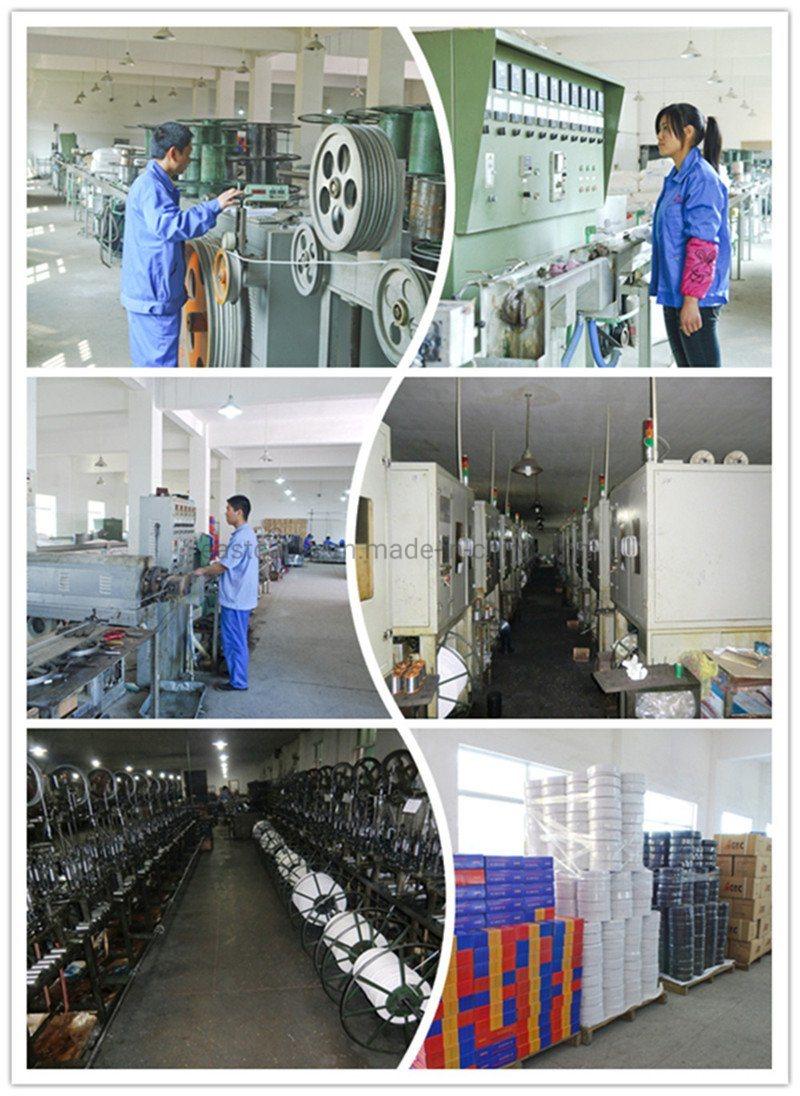

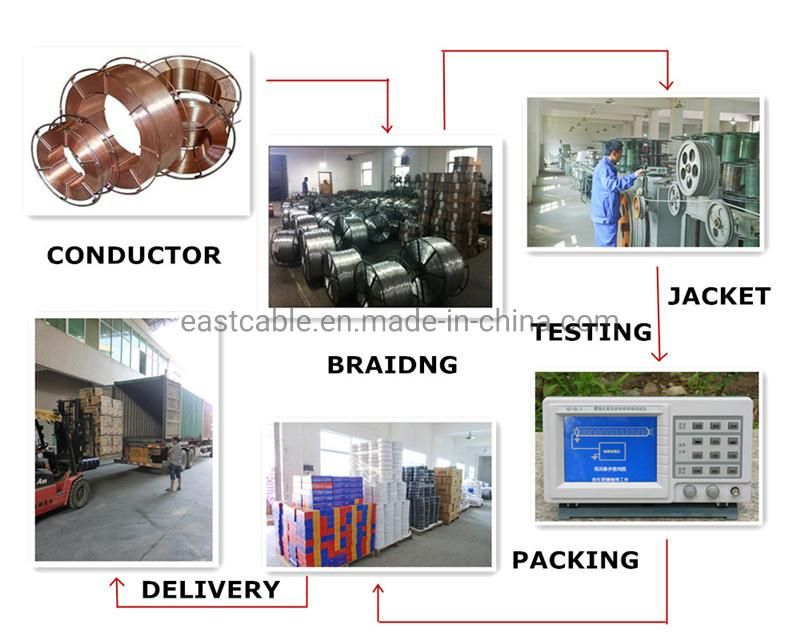

  Production Procedure

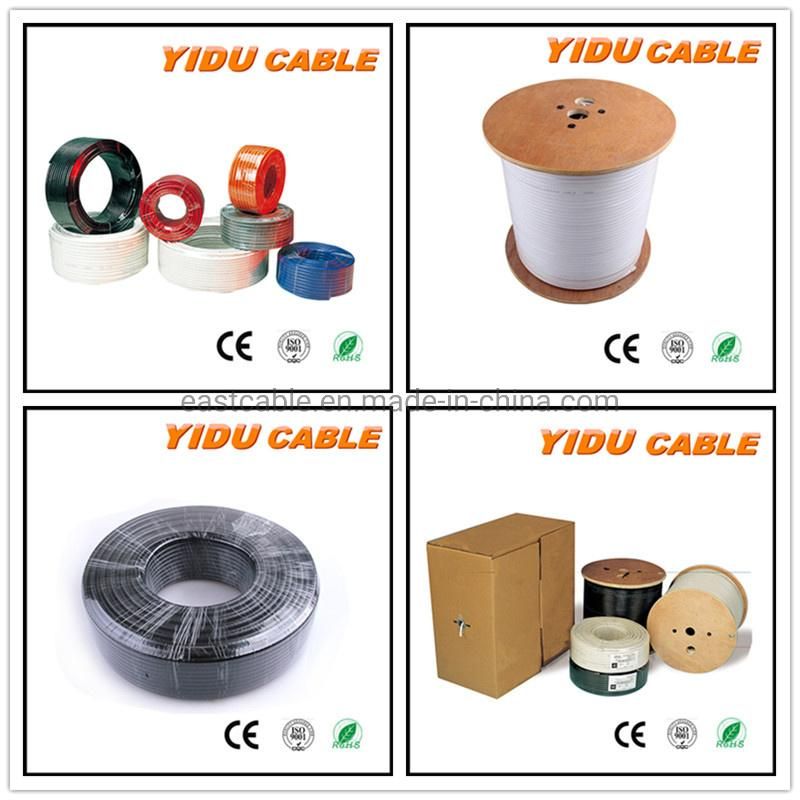

Packaging & Shipping

Packaging & Shipping










Any question for coaxial cable, welcome to contact us!
