• Model NO.：0.9mm
• Transport Package：Wooden Package
• Specification：Customized
• Trademark：Reliable
• Origin：China
• HS Code：721720
• Production Capacity：5000mt

Basic Info.

Model NO. 0.9mm Transport Package Wooden Package Specification Customized Trademark Reliable Origin China HS Code 721720 Production Capacity 5000mt

Product Description

Product Name:

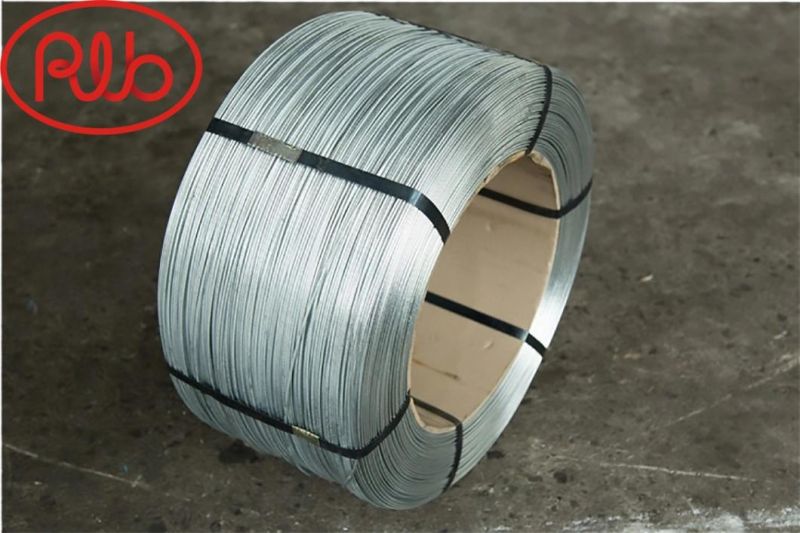

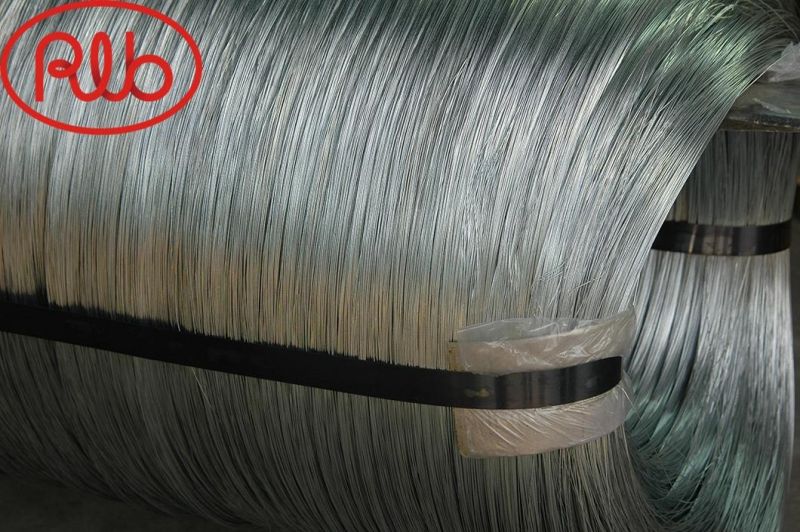

Galvanized steel Wire for Armoring




1, Application:
It is widely used in power cable, telephone cable and telecommunication cable.

2, Advantage:
A) The largest steel wire producer in China;
B) Diameter range of steel wire: 0.15mm-8mm;
C) Selection of high-quality raw materials for raw materials;
D) Monitoring the whole process of production;
E) The product performance is stable;
F) The range of tensile strength is small.
G) Uniform galvanizing layer;
H)Smooth pay-off

3, Standard:
BS EN 10257-1(BS 1142),BS EN 10257-2(BS 443);
BS EN 10244-2,BS4545,JIS G 3457

4, Production process:

Steel wire rod drawing→drawing to 2.0mm→coal furnace annealing→water tank drawing→electric furnace annealing→galvanization→packing

5, Packing:

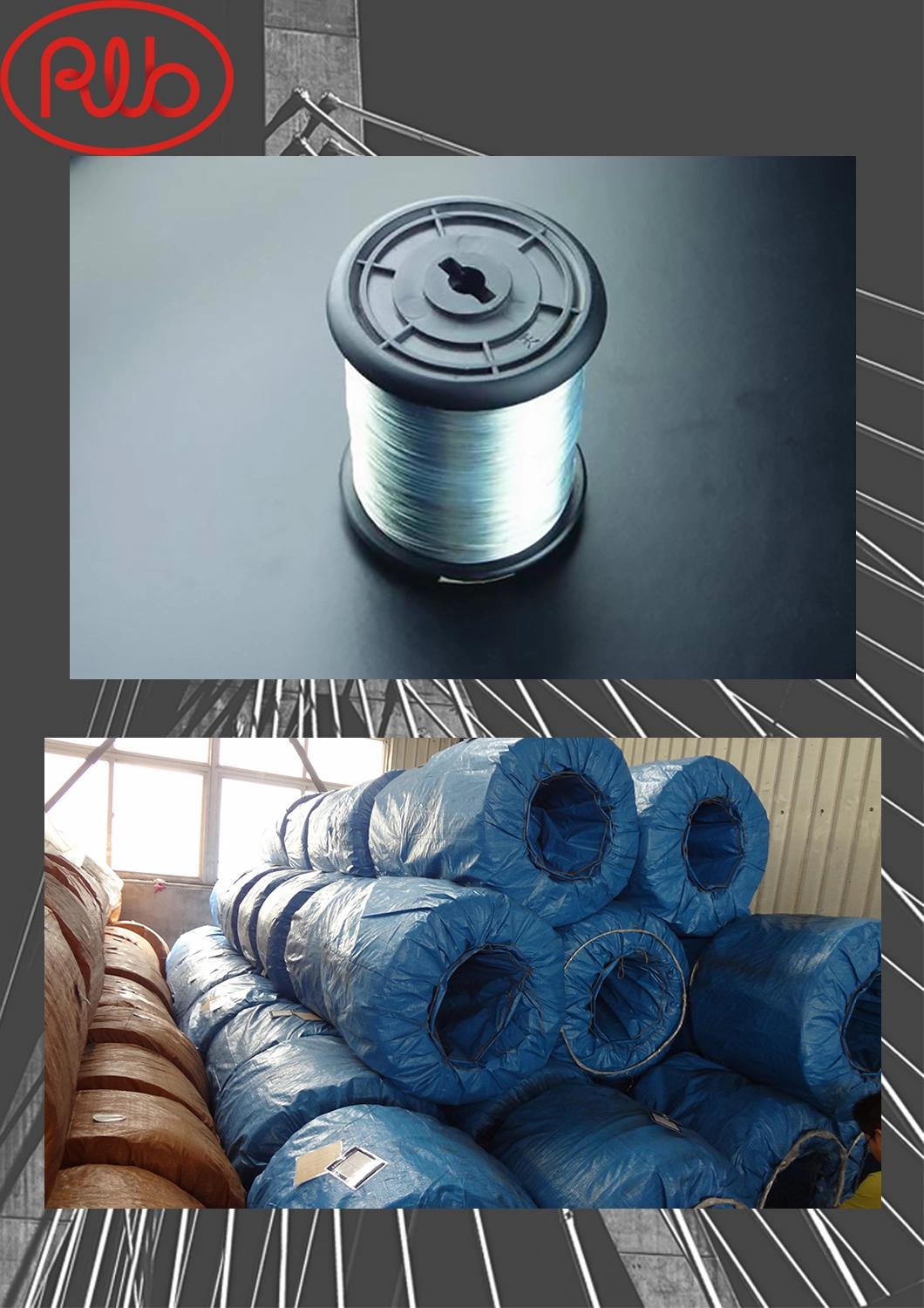

In Coil and Plastic spooler


6, Specification & Parameter:
BS EN 10257-1;BS EN10244-2

Diameter mm	Tolerance mm	Tensile Strength Mpa	Min Elongation %	Zinc Coating g/	Min No. of Turns	Gauge Length	Max.D.C. Resistance At 20ºC ohm/km
0.30	±0.025	320-500	7.5	45	45	50	1952.30
0.45	±0.025	320-500	7.5	85	45	75	867.69
0.71	±0.300	340-500	7.5	130	42	75	348.56
0.80	±0.300	340-500	7.5	145	35	75	275.00
0.90	±0.035	340-500	7.5	155	33	75	216.92
1.25	±0.040	340-500	10	180	24	75	112.45
1.60	±0.045	340-500	10	195	37	150	68.64
2.00	±0.050	340-500	10	215	30	150	43.93
2.50	±0.060	340-500	10	245	24	150	28.11
3.15	±0.070	340-500	10	255	19	150	17.71
4.00	±0.070	340-500	10	275	15	150	10.98
