Zr-Kvv Flame Retardant PVC Insulated PVC Sheathed Control Cable
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：ZR-KVV
- Range of Application：Flame Retardant
- Certification：ISO9001, CCC
- Brand：Rmjt
- Color：Red, Yellow, Black
- Area：0.75~10 Sqmm
- Standard：GB 9330-2008, IEC 227
- Delivery：15days
- Current：AC Cable
- Transport Package：Wooden Drum or Roll
- Specification：2~61 core
- Trademark：RMJT
- Origin：Henan, China
- HS Code：8544492100
- Production Capacity：50000km,Month
Description
KVVCopper Conductor,PVC Insulated and Sheathed Control Cable 0.75 1.0 1.5 2.5 2-16 Permanent installation indoors,in cable ditches or pipes 4 6 2-14 10 2-10 KVVP Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable 0.75 1.0 1.5 2.5 2-61 Permanent installation indoors,in cable ditches or pipes where shielding is required 4 6 2-14 10 2-10 KVVP2 Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable 0.75 1.0 1.5 2.5 4-10 Permanent installation indoors,in cable ditches or pipes where shielding is required 4 6 7-61 10 4-10 KVV22 Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable 0.75 1.0 1.5 2.5 7-61 Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force 4 6 4-14 10 4-14 KVVR Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable 0.5-2.5 4-61 Installation indoors where flexibility and movability are required KVVRP Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable 0.5 0.75 1.0 4-61 Installation indoors where flexibility shielding and movability are required 1.5 2.5 4-48 KYJV Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable 0.75 1.0 1.5 2.5 2-16 Permanent installation indoors,in cable ditches or pipes 4 6 2-14 10 2-10 KYJVP Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable 0.75 1.0 1.5 2.5 2-61 Permanent installation indoors,in cable ditches or pipes where shielding is required 4 6 2-14 10 2-10 KYJV22 Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable 0.75 1.0 1.5 2.5 7-61 Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force 4 6 4-14 10 4-10 KYJVP2 Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable 0.75 1.0 1.5 2.5 7-61 Permanent installation indoors,in cable ditches or pipes where shielding is required 4 6 4-14 10 4-10 KYJVR Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable 0.5-2.5 4-61 Installation indoors where flexibility and movability are required KYJVRP Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable 0.5 0.75 1.0 4-61 1.5 2.5 4-48 Installation indoors where flexibility shielding and movability are required
Flame retardant series" ZA, ZB, ZC, ZD", Fire resistant series" N-, ZAN-, ZBN-, ZCN-, ZDN-",refer to this table.SectionMax. Conductor Resistance Current Rating Overall Diameter Cable Weight DC at 20 AC at 70 Laid in Ground Laid in Ducts Laid in Free Air No. x mm2 Ω/km Ω/km A A A mm kg/km 1.5 mm2 5 X 1.5 12.1000 14.6000 18.0 15.5 13.5 12.3 215 7 X 1.5 12.1000 14.6000 16.0 14.0 12.5 13.3 265 10 X 1.5 12.1000 14.6000 14.0 12.5 11.5 16.5 360 12 X 1.5 12.1000 14.6000 13.0 11.5 10.5 17.0 410 14 X 1.5 12.1000 14.6000 12.0 10.5 9.5 17.8 465 16 X 1.5 12.1000 14.6000 11.0 10.0 9.0 18.7 530 19 X 1.5 12.1000 14.6000 10.0 9.0 8.0 19.7 600 24 X 1.5 12.1000 14.6000 9.0 8.0 7.5 22.9 740 30 X 1.5 12.1000 14.6000 8.0 7.5 6.5 24.2 890 37 X 1.5 12.1000 14.6000 7.5 6.5 6.0 26.1 1070 2.5 mm2 5 X 2.5 7.4100 8.8700 24.0 20.5 18.0 13.4 275 7 X 2.5 7.4100 8.8700 22.0 18.5 16.0 14.5 350 10 X 2.5 7.4100 8.8700 20.0 16.5 14.5 18.1 480 12 X 2.5 7.4100 8.8700 18.0 15.5 13.5 18.7 555 14 X 2.5 7.4100 8.8700 16.0 14.0 12.0 19.6 630 16 X 2.5 7.4100 8.8700 15.0 13.0 11.0 20.6 710 19 X 2.5 7.4100 8.8700 14.0 12.0 10.5 21.7 820 24 X 2.5 7.4100 8.8700 13.0 11.0 9.5 25.3 1020 30 X 2.5 7.4100 8.8700 11.5 10.0 8.5 26.8 1235 37 X 2.5 7.4100 8.8700 10.0 9.0 7.5 28.9 1495 4.0 mm2 5 X 4.0 4.6100 5.5100 31.0 25.5 24.0 16.1 410 7 X 4.0 4.6100 5.5100 28.0 23.0 21.5 17.4 520 10 X 4.0 4.6100 5.5100 25.0 21.0 19.5 22.0 720 12 X 4.0 4.6100 5.5100 23.0 19.5 18.0 22.7 840 14 X 4.0 4.6100 5.5100 20.5 17.0 16.0 23.9 950 16 X 4.0 4.6100 5.5100 19.5 16.0 15.0 25.2 1070 19 X 4.0 4.6100 5.5100 18.0 15.0 14.0 26.6 1260 24 X 4.0 4.6100 5.5100 16.0 13.5 12.5 31.4 1580 30 X 4.0 4.6100 5.5100 14.5 12.0 11.0 33.5 1965 37 X 4.0 4.6100 5.5100 13.0 11.0 10.0 36.2 2510
About us

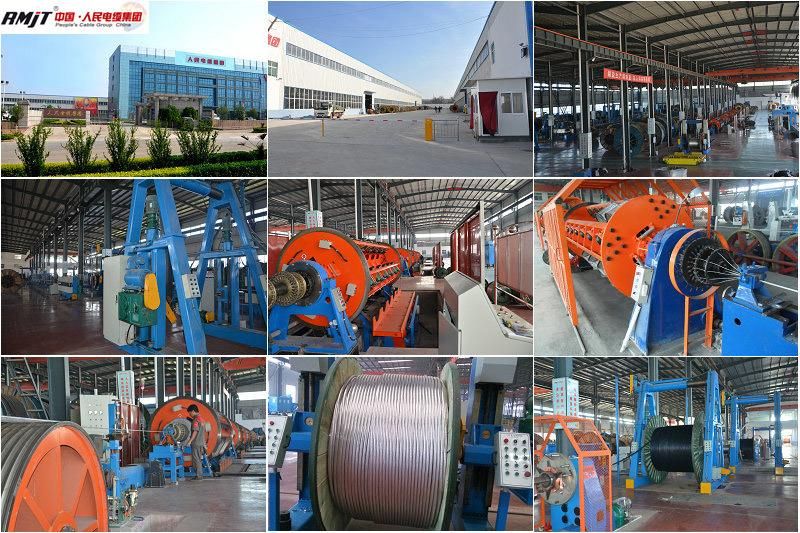

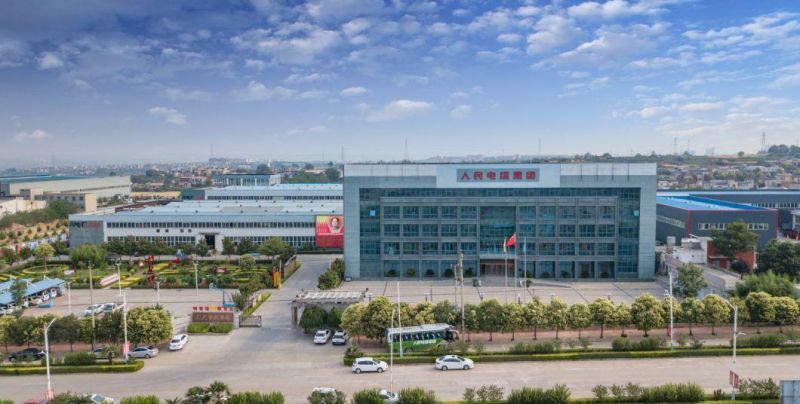

People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.
People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.
Certificate
People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.
FAQ
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we
will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
