Nyy UL VDE Standard H03vvh2-F H03VV-F H05VV-F H05V-K H07V-K H05rn-F H07rn-F H05s-K Silicone Rubber Cable Power Cable Wire
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Rubber
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Power Cables
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Yz,Yzw,Yc,Ycw,H05rr-F,H07rn-F,H05rn-F
- Brand：Fengda
- OEM：Yes
- ODM：Yes
- Colors：Assorted Upon Request
- Coductor：Copper , Aluminum, Based on Client′s Requirements
- Voltag：300,500V 450,750V
- Model Number：2,3 ,4 ,5 Cores, etc.
- Operating Environment：Underground,Mine,Waterproof,Welding
- Equipments：Submersible Pump, Heavy Duty ,Colliery
- Feature：Supe Flexible
- Type Code：H05rr-F,H07rn-F,H05rn-F,H07zz-F,H01n2-E,H01n2-D
- Other Name：0361tq,H07rn8-F
- Rubber Type：Ethylene Propylene Rubber,Epr,Pcp
- Soft Cable：Manguer Cable
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：Copper
- Trademark：Fengda
- Origin：China
- HS Code：8544
- Production Capacity：80000 Meter,Meters Per Month
Description

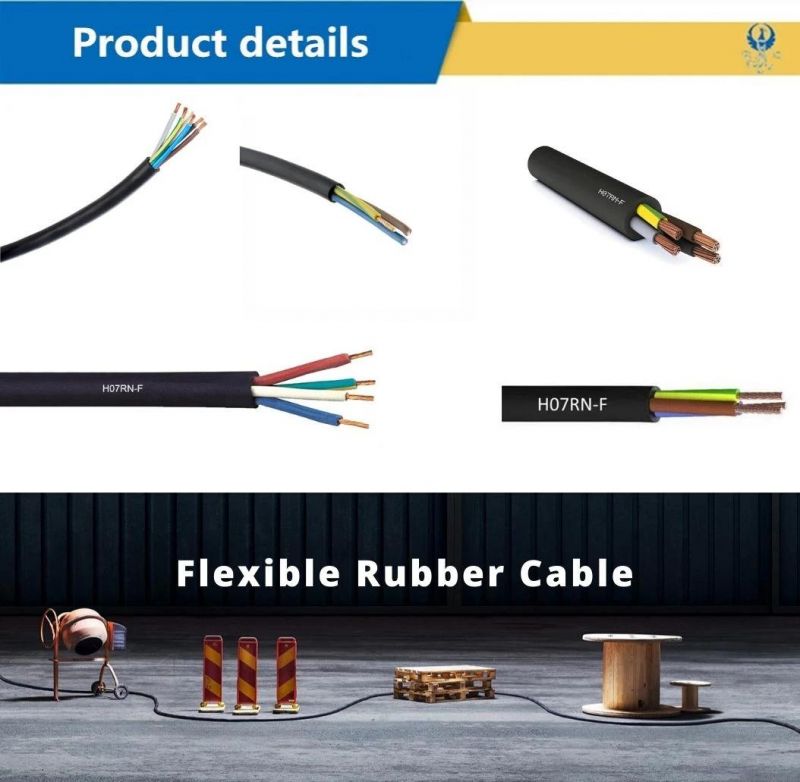

H07RN-F Cable Construction:
- Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
- Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
- Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
- Conductor Stranding: from 2 conductors stranded in layers
- Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
- Jacket Color: Black
H07RN-F Cable Technical Data:
- Nominal Voltage: Uo/U 450/750 volts
- Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
- Min. Bending Radius: 15 x O.D.
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (50%-90% as despot, the rest will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port?
A:Tianjin in China
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
