Multi-Standard Galvanized Steel Strand Cable
People's Cable Group Co., Ltd.- Application：Construction, Overhead, Industrial, Power Station, Telecommunication
- Voltage：1kv-500kv
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：GSW
- Wire Core Material：Steel
- Certification：ISO, CCC
- Model：1.0mm-4.5mm
- Brand：Rmjt
- Material：Steel
- Standard：ASTM, IEC .GB ,BS
- Transport Package：Export Drum, Coil, Carton
- Specification：1.0mm-4.5mm
- Trademark：RMJT
- Origin：China
- HS Code：7312100000
- Production Capacity：2000 Ton Per Month
Description
Approx.Weight Inch mm KN KN KN kg/km 3/2.64 7/32 5.56 10.409 15.569 21.796 131 3/3.05 1/4 6.35 13.523 21.04 29.981 174 3/3.05 1/4 6.35 - - - 174 3/3.30 9/32 7.14 15.035 23.398 33.362 204 3/3.68 5/16 7.94 18.193 28.246 40.479 256 3/4.19 3/8 9.52 24.732 37.187 52.489 328 7/1.04 1/8 3.18 4.048 5.916 8.18 49 7/1.32 5/32 3.97 6.539 9.519 13.078 76 7/1.57 3/16 4.76 8.452 12.677 17.748 108 7/1.65 3/16 4.76 - - - 118 7/1.83 3/16 5.56 11.387 17.126 24.02 145 7/2.03 7/32 6.35 14.012 21.129 29.581 181 7/2.36 1/4 7.14 18.905 28.469 39.812 243 7/2.64 9/32 7.94 23.798 35.586 49.82 305 7/2.77 5/16 7.94 - - - 335 7/3.05 3/8 9.52 30.915 48.04 68.503 407 7/3.68 7/16 11.11 41.591 64.499 92.523 594 7/4.19 1/2 12.7 53.823 83.627 119.657 768 7/4.78 9/16 14.29 69.837 108.981 155.688 991 7/5.26 5/8 15.88 84.961 131.667 188.605 1211 19/2.54 1/2 12.7 56.492 84.961 118.768 751 19/2.87 9/16 12.49 71.616 107.202 149.905 948 19/3.18 5/8 15.88 80.513 124.995 178.819 1184 19/3.81 3/4 19.05 116.543 181.487 259.331 1719 19/4.50 7/8 22.22 159.691 248.211 354.523 2352 19/5.08 1 25.4 209.066 325.61 464.839 2384 37/3.63 1 25.4 205.508 319.827 456.832 3061 37/4.09 11/8 28.58 262 407.457 581.827 4006 37/4.55 11/4 31.75 324.72 505.318 721.502 4833

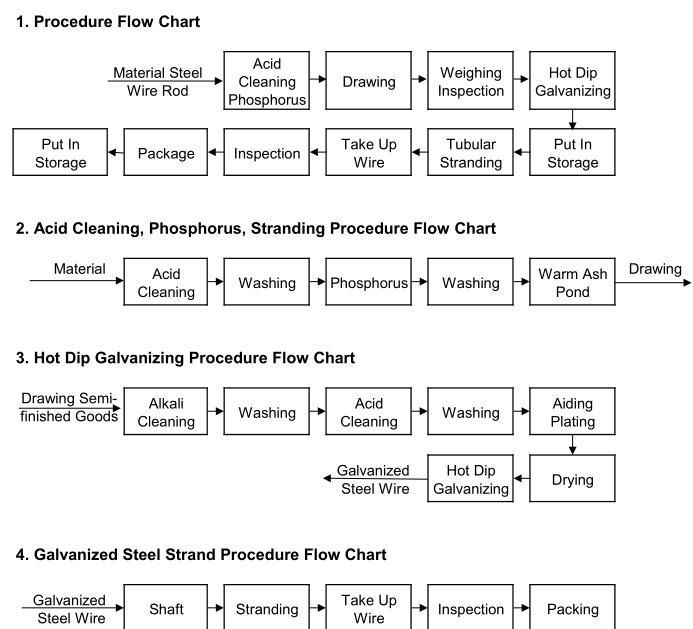

Production Process:
Galvanized steel wire producing process is steel wire rod ,Acid cleaning , drawing ,weighting inspection ,hot dip galvanizing ,stranding and cabling,and our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.

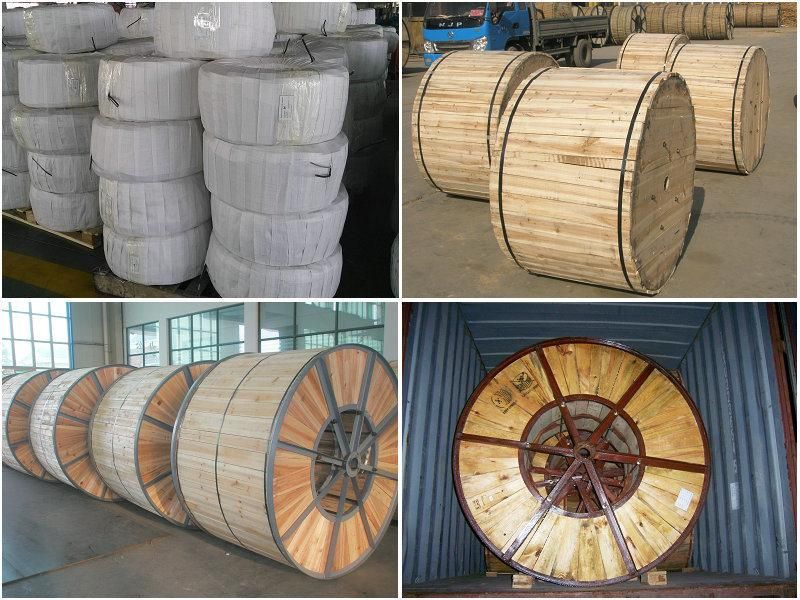

Package:
Package in plastic reel, steel reel ,wooden drum,steel wooden drum or as customer's requirement.

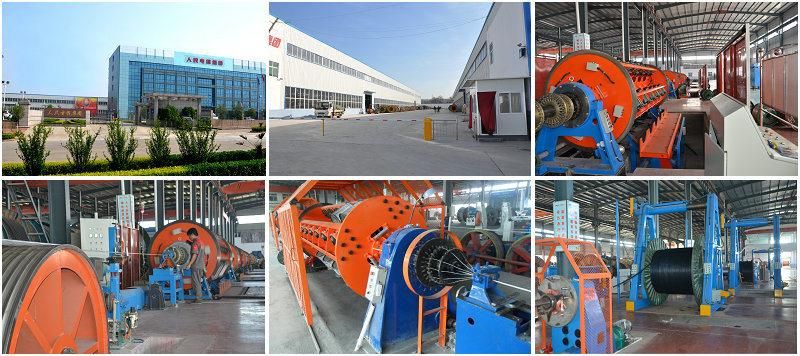

About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit :
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Main Product: ACAR Conductor ,ACSR/AW COnductor ,AAAC Conductor , AAACSR Conductor and ABC CABLE,Concentric Cable and Aluminum clad steel , galvanized steel wire strand.
