• Model NO.：EX
• Material Shape：Round Wire
• Range of Application：Temperature Measurement
• Certification：ISO9001, CE
• Brand：Tankii
• Bare Wire：Type K
• Dia：0.2mm-1.78mm
• Conductor：NiCr- Constantan
• Item：22SWG Thermocouple cable with Vitreous Silica insu
• Transport Package：Carton, Wooden Case Package
• Specification：0.1mm-5.0 mm
• Trademark：TANKII
• Origin：Shanghai
• HS Code：74082200
• Production Capacity：5 Tons,Month

Basic Info.

Model NO. EX Material Shape Round Wire Range of Application Temperature Measurement Certification ISO9001, CE Brand Tankii Bare Wire Type K Dia 0.2mm-1.78mm Conductor NiCr- Constantan Item 22SWG Thermocouple cable with Vitreous Silica insu Transport Package Carton/ Wooden Case Package Specification 0.1mm-5.0 mm Trademark TANKII Origin Shanghai HS Code 74082200 Production Capacity 5 Tons/Month

Product Description

Product Description
Thermocouple cable with Vitreous Silica insulation (type K, E. J. N)

The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our mill mainly manufacture type KX,,EX,NC/NX, JX,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 'Alloy wires of extension and compensating cables for thermocouples' (Chinese National Standard), and also IEC584-3 'Thermocouple part 3-compensating wire' (International standard).

The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X:  Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C:  Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.

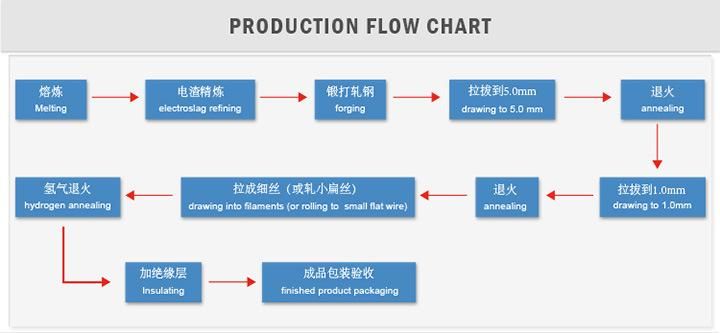

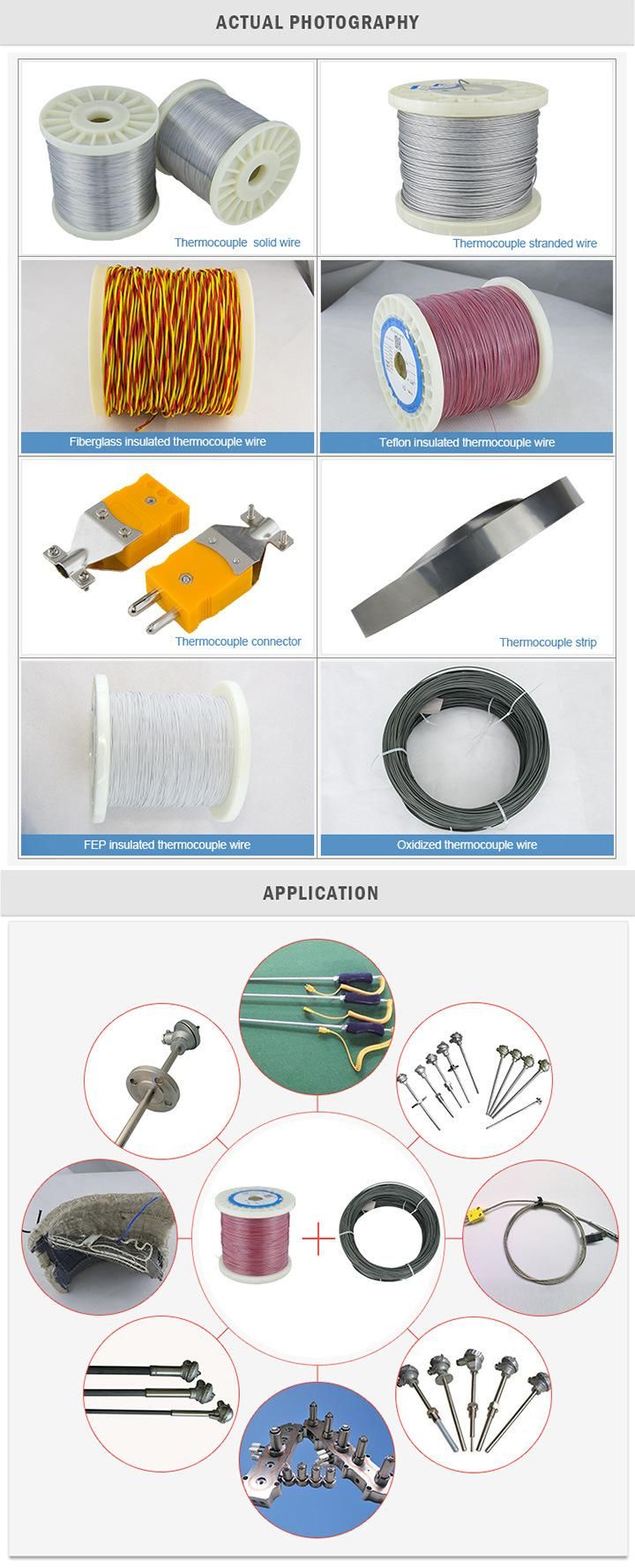

Application of temperature measuring:
1.Heating - Gas burners for ovens
2.Cooling - Freezers
3.Engine protection - Temperatures and surface temperatures
4.High temperature control - Iron casting

Properties of insulation material

Material Type	Continuous Operating Temp. / ºC	Abrasion Resistance	Chemical Resistance	Moisture Resistance	Solvent Resistance	Flame Resistance
PE	80	Good	Excellent	Excellent	Excellent	Poor
PVC	105	Very Good	Very Good	Good	Fair	Excellent
TPE	125	Excellent	Poor	Good	Good	Excellent
SILICONE	200	Good	Good	Excellent	Excellent	Excellent
FEP	200	Excellent	Excellent	Excellent	Excellent	Excellent
PFA	260	Excellent	Excellent	Excellent	Excellent	Excellent
PTFE	260	Good	Excellent	Excellent	Excellent	Excellent
B-GLASS FIBER	260	Good	Good	Fair	Good	Good
G-GLASS FIBER	510	Poor	Good	Good	Excellent	Excellent
Q-GLASS FIBER	704	Fair	Good	Good	Excellent	Excellent
VITREOUS SILICA FIBER	1100	Good	Good	Excellent	Excellent	Excellent
MINERAL INSULATION*	1100	Excellent	Excellent	Good	Excellent	Excellent
