LV Single Core Aluminum Conductor PE/XLPE Insulation Overhead Cable

HENAN BAOFENG CABLE CO., LTD.
  • Type:Insulated
  • Conductor Type:Stranded
  • Application:Overhead
  • Conductor Material:Aluminum
  • Insulation Material:XLPE
  • Material Shape:Round Wire

Base Info

  • Model NO.:Overhead Cable
  • Certification:ISO9001, CE, CCC, RoHS
  • Colour:Black or as Required
  • Transport Package:Exported Wooden Drum or Rolls
  • Specification:ABC Cable
  • Trademark:HNBF Cable
  • Origin:China
  • HS Code:8544492100
  • Production Capacity:900000m,Month

Description

Basic Info.

Model NO. Overhead Cable Certification ISO9001, CE, CCC, RoHS Colour Black or as Required Transport Package Exported Wooden Drum or Rolls Specification ABC Cable Trademark HNBF Cable Origin China HS Code 8544492100 Production Capacity 900000m/Month

Product Description

Product Discription

Application

Aerial Bundled Cable-Triplex Service Drop Aluminum Conductor

To supply 120/220V aerial service for temporary service at construction sites, as a service drop(power pole to service entrance) as a secondary cable(pole to pole), or street lighting. For service at 600V or lower at a maximum conductor temperature of 75ºC for polyethylene insulated cables or 90ºC for XLPE insulation. Rated Voltage: 600V or lower Maximum conductor operating temperature: PE insulation conductor: 75ºC XLPE insulation conductor: 90ºC Colour of insulation: Black and customer designated.

Part of Technical Data:
Goods NameSpecificationConductorInsulation ThicknessCable Overall Diameter20oC Conductor DC ResistanceCable Weight
 mm2No./mmmmmm   Ω/kmkg/km
ABC Cable1x107/1.351.05.83.0841
 1x167/1.711.27.21.9165
 1x257/2.161.28.41.293
 1x357/2.551.49.80.868129
 1x507/3.001.411.10.641170
 1x7019/2.161.412.80.443233
 1x9519/2.551.614.80.320316
 1x12037/2.051.616.20.253388
 1x15037/2.281.818.10.206485
 1x18537/2.562.020.20.164600
 1x24037/2.952.222.80.125783

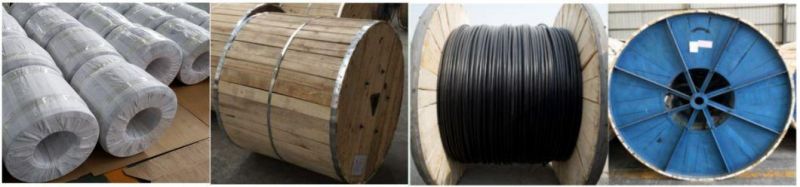

Packing and Delivery

LV Single Core Aluminum Conductor PE/XLPE Insulation Overhead Cable
Woven Bag wrapping(soft packing/rolls) size:
Advantages: low price, light weight and space saving.
Disadvantages: workers are inconvenient to use (cannot roll), production is slightly troublesome, and labor costs are slightly higher.

Wooden Drum Packing Details: The wooden drum will be fumigated. In order to prevent rolling, it will also be reinforced with environmentally friendly materials. This packaging method is easy to construct, easy to install, easy to produce, but slightly more expensive.

Wooden Steel Drum:  Packing Details: This wooden-steel drum is suitable for cables with an outer diameter of more than 30mm. Packing Details: Usually use international wooden drums and rolls, can also as buyer's requirements. The Package size will according to the cable's size.

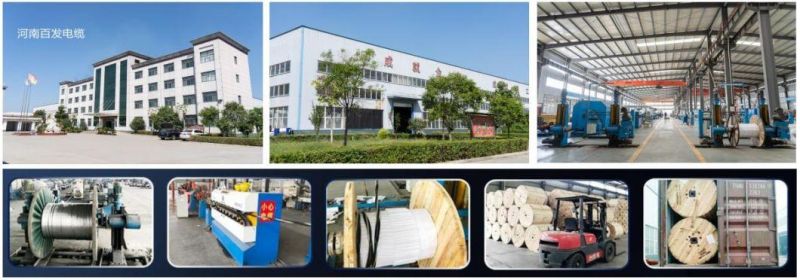

Our Factory

The annual production capacity is 1,450,000.00 km cables and wires. In our factory, there are above 300 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation. Our main products are Bare Conductor(acsr, acar, aaac, aac), ABC Cable(aerial bundled cable), Electrical Wire, and Power Cable.

LV Single Core Aluminum Conductor PE/XLPE Insulation Overhead Cable

Certifications

Our company has passed ISO 9000 quality management system certification, ISO 9000 occupational health and safety management system certification, ISO 9000 environmental management system certification, CCC China National Compulsory Product Certification, CE Certificate of Conformity, and Rohs.

LV Single Core Aluminum Conductor PE/XLPE Insulation Overhead Cable
LV Single Core Aluminum Conductor PE/XLPE Insulation Overhead Cable

International Fair
We participate in the Canton Fair and foreign exhibitions every year. Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like South America, North America, Latin America, South Asia, Southeast Asia, Africa, and Europe etc.

LV Single Core Aluminum Conductor PE/XLPE Insulation Overhead Cable


Why Choose Us?

Our advantages
* Advanced production and testing equipment.
* Strict controlling of raw materials.
* Raw material origin, factory direct sales, competitive price.
* Inquiry and consulting support.
* Free sample and sample testing support.
* Fast delivery.
* Good pre-sale and after-sale services.
