• Model NO.：Waterproof sc
• Waterproof：IP67
• Insertion Loss：Single Mode 0.25dB
• Return Loss：Single Mode 55dB
• Operating Temperature：-40 to 85
• Durability：>50 Cycles
• Feature：Easy to Install
• Compatible with：Odc Connector and Receptable
• with：RoHS Certification
• Transport Package：Individual Packing
• Specification：ROHS
• Trademark：DYS or OEM
• Origin：Shenzhen, China
• HS Code：8544700000
• Production Capacity：20000PCS,Day

Basic Info.

Model NO. Waterproof sc Waterproof IP67 Insertion Loss Single Mode 0.25dB Return Loss Single Mode 55dB Operating Temperature -40 to 85 Durability >50 Cycles Feature Easy to Install Compatible with Odc Connector and Receptable with RoHS Certification Transport Package Individual Packing Specification ROHS Trademark DYS or OEM Origin Shenzhen, China HS Code 8544700000 Production Capacity 20000PCS/Day

Product Description

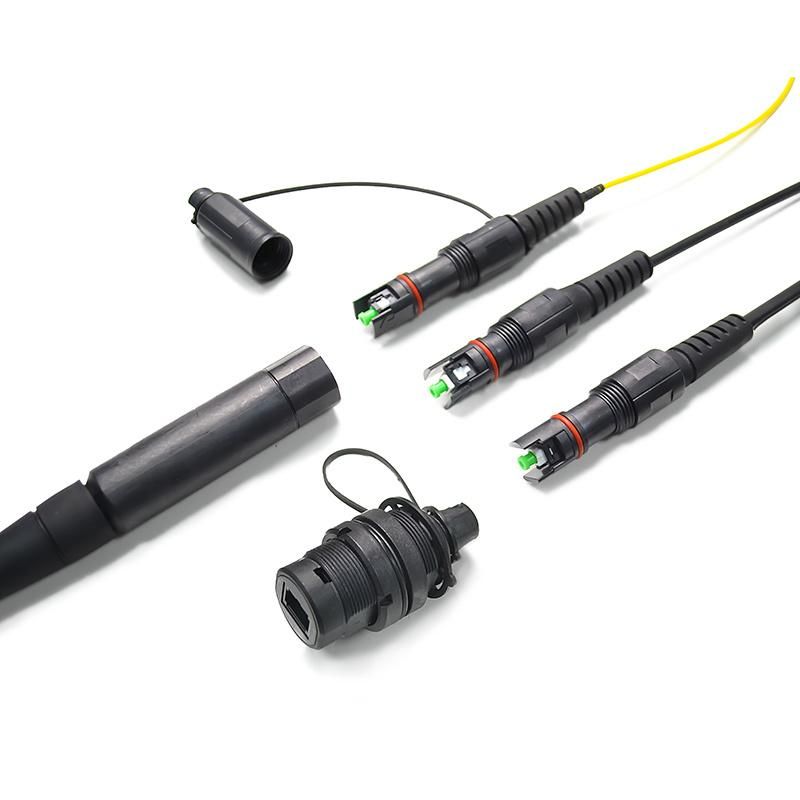

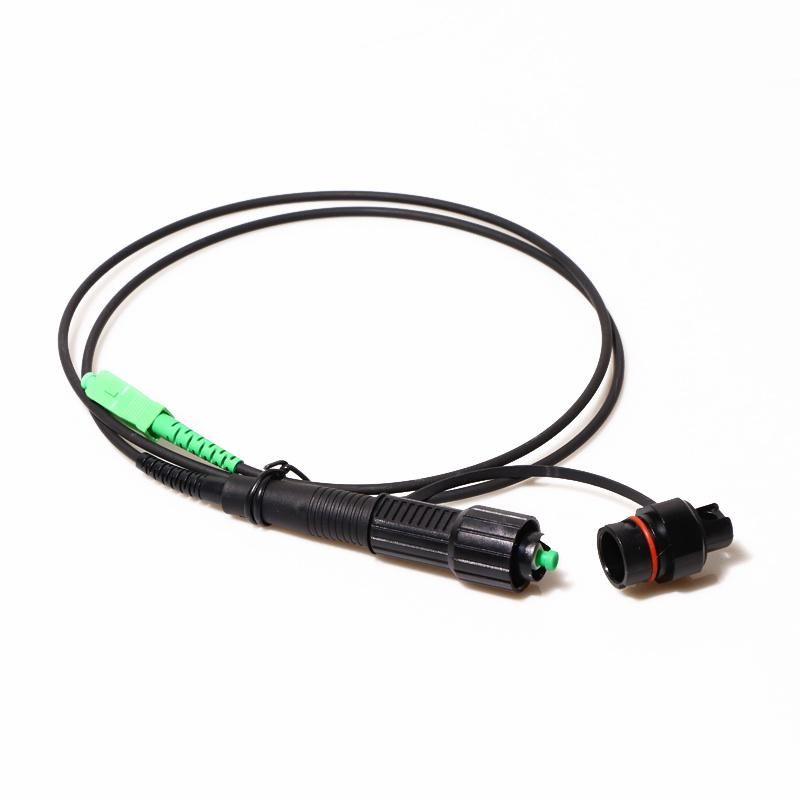

Outdoor Patch cord Compatible Corning Optitap Hoptic Sc/APC H Connector IP65 IP67 Waterproof Ftta/FTTH Armored Cpri Cable Fiber Optic/Optical Patchcord

Description of H connector
H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications

Benefits
Allows flexibility to use factory terminated assemblies
Provides superior weather resistance for FTTH and other outdoor applications
Ensures functionality in harsh weather environments
Can be used with industry standard cable designs
Easily installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use

Features
Single fiber, SC-based connector
Bird proof and rodent resistant
IP68 water and dust protection
Low profile in-line receptacle available
No installation tools required
100 minimum mating cycles
In-line connection available
Operating temperature: -40° to 85°C

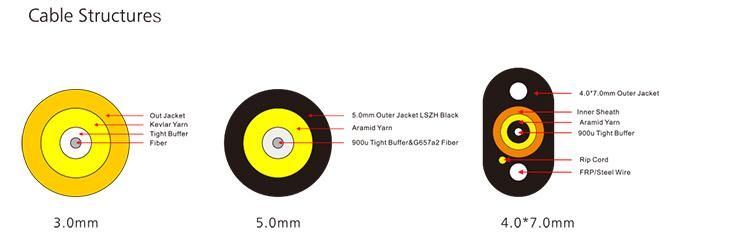

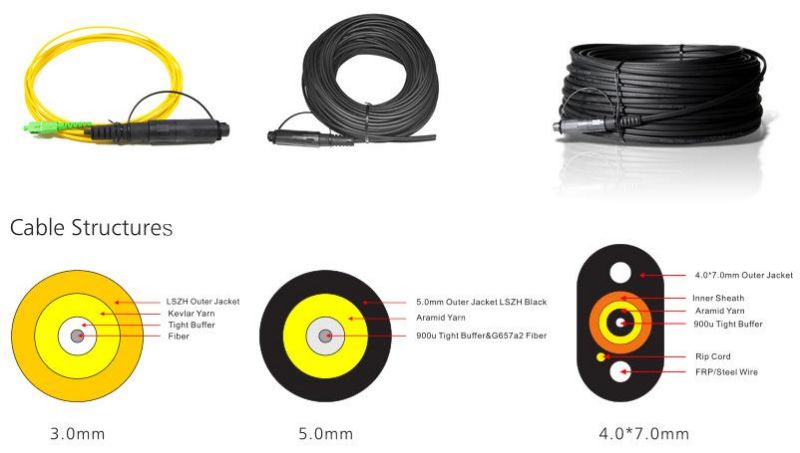

Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
33 lb. axial cable retention (150N)

Applications
FTTH
Outdoor Areas
Harsh Environment

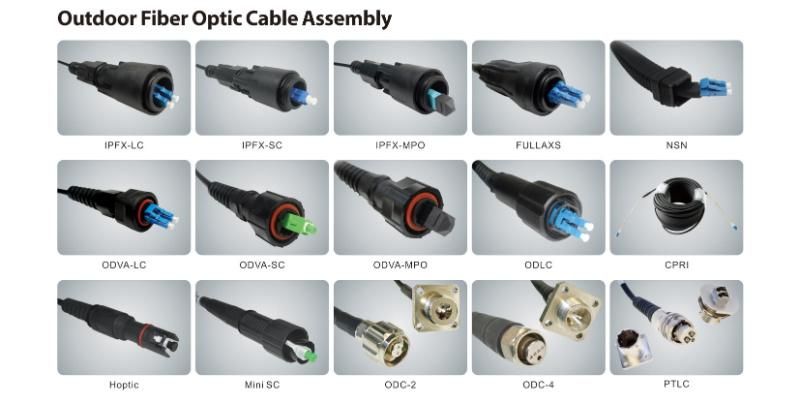

Hoptic ,Compatible with Corning Optitap



MiniSC Compatible with Huawei Fasconnect



Company Profile

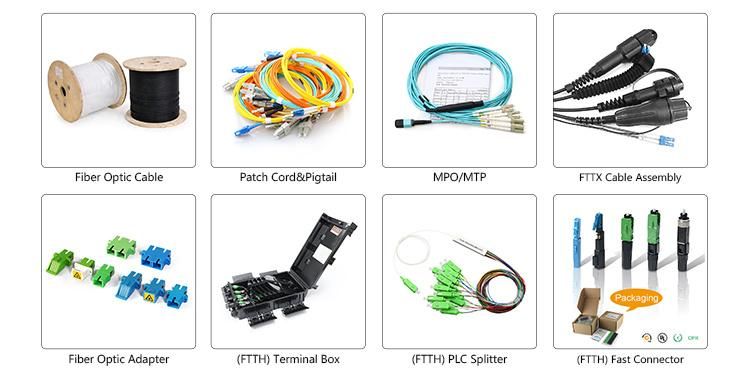

Shenzhen DYS Fiber Optic Technology,The leading company in developing and manufacturing advanced fiber optic products,mainly offer below:

CPRI outdoor cable assemblies
MPO/MTP series products
Standard fiber optic patch cable&pigtail
Fiber optic PLC Splitter
Fiber optic Fast Connector
FTTH box

DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.

Over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
