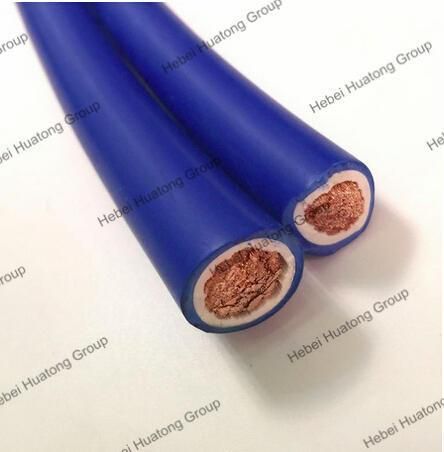

Flexible Copper Battery Welding Cable
Hebei Huatong Wires & Cables Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Welding Machine
- Conductor Material：Flexible Copper Wire
- Sheath Material：Rubber,CPE,Epr
- Insulation Material：Rubber
Base Info
- Model NO.：welding cable
- Material Shape：Round Wire
- Range of Application：Welding Machine
- Certification：ISO9001, CE
- Brand：Rne Da
- Voltage：200V
- Cross Section：10mm2-185mm2
- Sheathed：CPE,Epr,Rubber
- Certificate：CE
- Transport Package：Soft Packing in Coil,100m,Roll,or as Your Requests
- Specification：IEC60245
- Trademark：RNE DA
- Origin：Hebei, China
- HS Code：85444921
- Production Capacity：500km,Month
Description
Reference Weight
(kg/km)Number/Diameter
of Core(mm) Min Max YH YHF 10 322/0.20 1.8 7.5 9.7 1.91 146 153.51 16 513/0.20 2.0 9.2 11.5 1.16 218.9 230.44 25 798/0.20 2.0 10.5 13.0 0.758 316.6 331.15 35 1121/0.20 2.0 11.5 14.5 0.536 426 439.87 50 1596/0.20 2.2 13.5 17.0 0.379 592.47 610.55 70 2214/0.20 2.4 15.0 19.5 0.268 790 817.52 95 2997/0.20 2.6 17.0 22.0 0.198 1066.17 1102.97 120 1702/0.30 2.8 19.0 24.0 0.161 1348.25 1392.55 150 2135/0.30 3.0 21.0 27.0 0.129 1678.5 1698.72 185 1443/0.40 3.2 22.0 29.0 0.106 1983.8 2020.74
