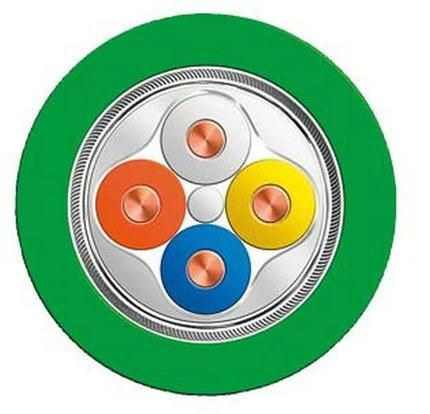

Profinet Type a Bus Cable 4 Core Industrial Ethernet Cable
Hanyang (Hangzhou) Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Industrial Automation, Industrial Ethernet APP
- Conductor Material：Copper
- Cover Material：PVC,LSZH
- Type：Industrial Ethernet Cable
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：Industrial Ethernet cable
- Wire Core Material：Bare Copper Wire

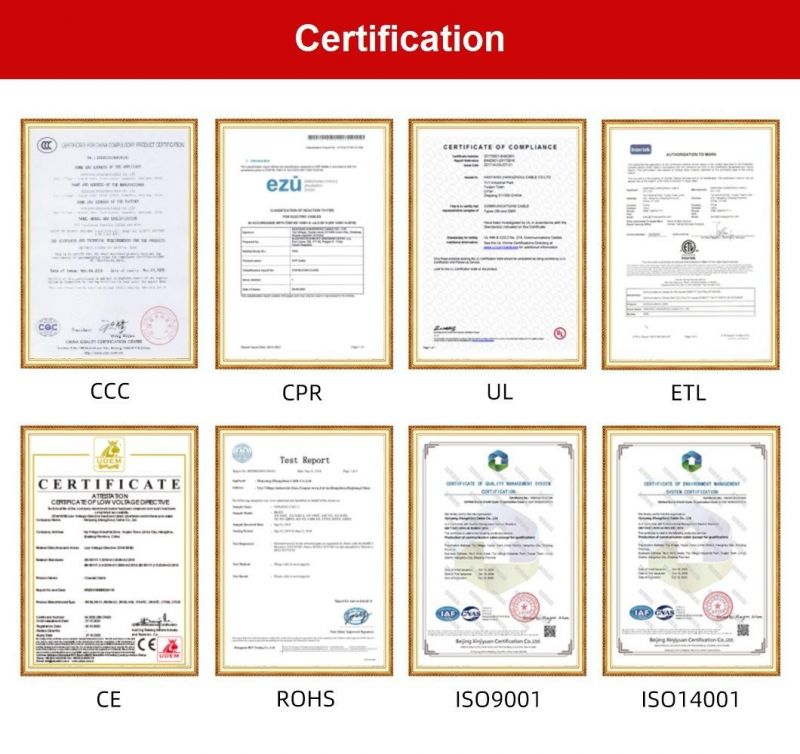

- Certification：CE, ISO, RoHS, CCC, UL, ETL, Reach, CPR
- Model：6xv1840-2ah10
- Brand：Superlink or OEM
- Shield：Al Foil+Braid
- Diameter：6.8mm
- Length：100m,200m,305m,500m
- Transport Package：PE Film,Wooden Reel,Plastic Drum
- Specification：4 core Copper
- Trademark：Superlink or OEM
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：5000km,Month
Description
Our service1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
All start here

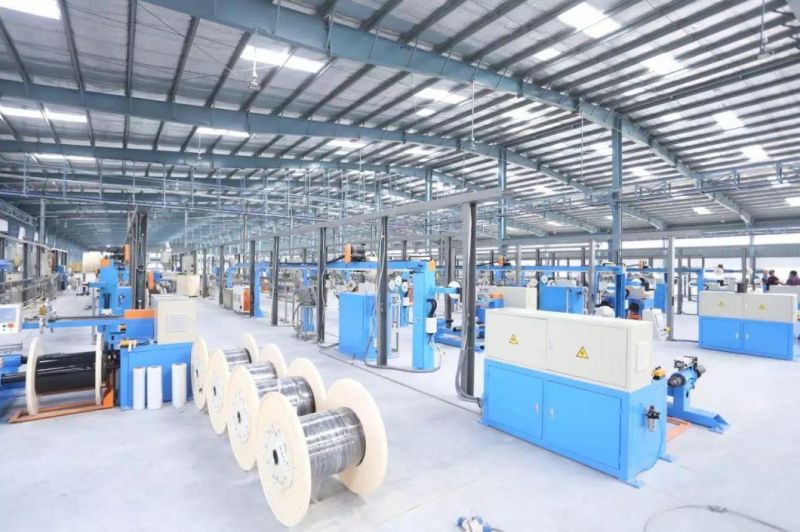

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.
Connect the world 1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping.Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
Performance
| Frequency | RL | Attenuation | Next | PSNEXT | ELFEXT | PSELFEXT |
| (MHz) | (dB) | (dB/100m) | (dB) | (dB) | (dB/100m) | (dB/100m) |
| 4 | 23.0 | 4.1 | 56.3 | 53.3 | 52 | 49 |
| 10 | 25.0 | 6.5 | 50.3 | 47.3 | 44 | 41 |
| 16 | 25.0 | 8.3 | 47.2 | 44.2 | 39.9 | 36.9 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 34.1 | 31.1 |
| 62.5 | 21.5 | 17.0 | 38.4 | 35.4 | 28.1 | 25.1 |
| 100 | 20.1 | 22.0 | 35.3 | 32.3 | 24 | 21 |
Reference standard : ISO/IEC 11801:2011; IEC61156-5:2009 ; EN50173; EN50288; TIA-568-C2:2009
Operating temperature : Max 60 °C
Max. Conductor DC Resistance : < 67 Ω/km@ 20°C
Impedance : 100+-15 Ω@ 1-100 MHZ
Capacitance : 56 nF/km
Environmental requirement : RoHS and Reach
Application It is used in industrial control systems for network communication, such as PLCs, switches, servo drives, DCSs or PACs, as well as for individual motion, peer-to-peer integration, vertical integration, safety, alarm and data transmission.
1. What's your company MOQ? - Our MOQ is 30km. But MOQ of stocks are 1 pcs.
2. Can you do our design?
- Of course, your customized design (OEM) is available.
3. What's the lead-time for order delivery?
- Within 10~30days.
4. Can you send a sample for us?
- Yes, we can provide free samples.

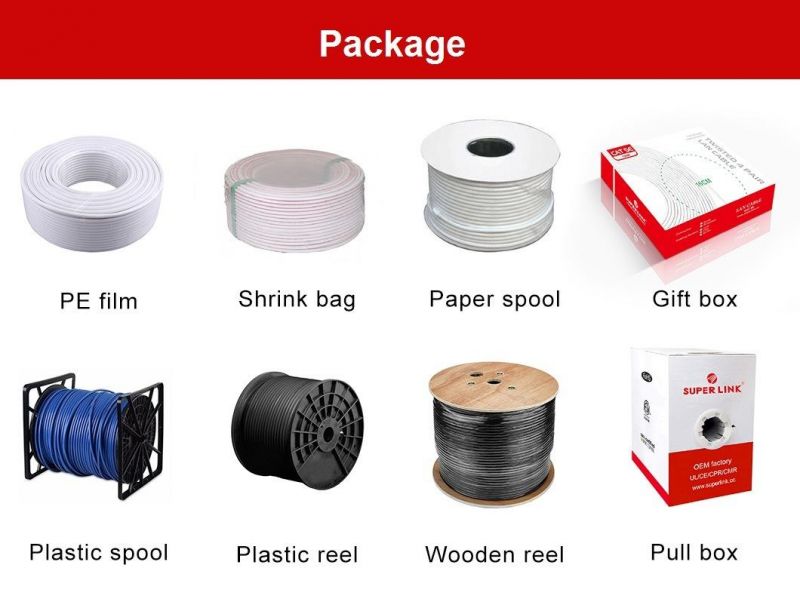

5. What is your packaging?
- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends
on what you want!
6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.
7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
