• Model NO.：N2XY,NA2XY,N2XBY,NA2XBY, YJV,YJY
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE, CSA
• Model：YJV
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：5, 000, 000km,Year

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.

We can customize various types of cable in accordance with your requirements XLPE / PVC or PE insulated sheathed power cable


Low voltage XLPE Cable Product Description:

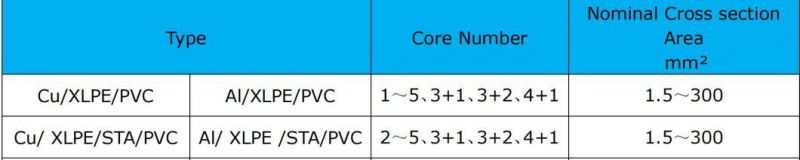

Type:  CU/XLPE/PVC               AL/XLPE/PVC

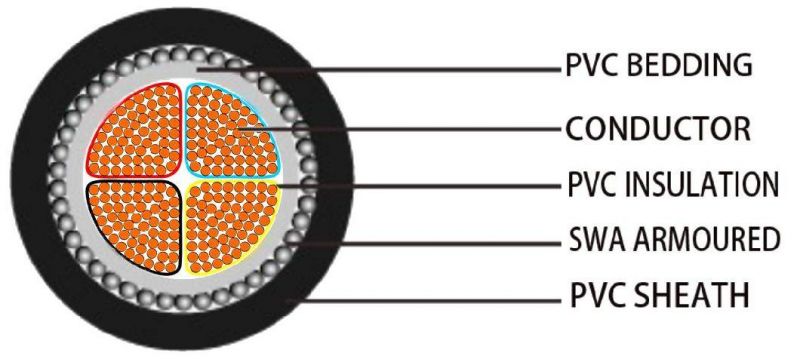

           CU/XLPE/SWA/PVC       AL/XLPE/SWA/PVC

Standard references:
The cable is manufactured according to GB/T 12706.1-2008 or IEC 60502-1:2004.
It is suitable to be laid in the power line with rated voltage of 0.6/1kv (U0/U) for power transmission.

Applications:
YJV power cable has very good thermal-mechanical properties, excellent electrical properties and chemical resistance, but yjv wire structure is simple. Yjv weight is light. It is easy to install. That is advantage of  YJV
Laid indoors, in tunnels and in pipes.
Able to withstand certain laying traction.
Not able to withstand mechanical external forces.
Single core cable is not allowed to be laid in magnetic made of material pipes .


The  main cores of yjv are single-core, 2cores, 3 cores, 4 cores, 5 cores, 3+1, 3+2, 4+1. 3+1 represents 3 phase wires + 1 ground wire, 3+2 represents 3 phase wires + 2 ground wires, 4+1 represents 4 phase wires + 1 ground wire.

Yjv Cable types include 1 square, 1.5 square, 2.5 square, 4 square, 6 square, 10 square, 16 square, 25 square, 35 square, 50 square, 70 square, 95 square, 120 square, 150 square, 185 square, 240 square, 300 square. For example, yjv3*240+1*120 cable is a cable consisting of 3 wires of 240 square and 1 ground wire of 120 square.

YJV , whose main specifications range from 1 square to 300 square and can also be individually customized, is an electrical cable used to transmit and distribute electrical energy. Most commonly used in urban power grids, real estate development, road construction, building construction etc.

YJV Cable Features:

1, 20 ºC conductor DC resistivity: copper core ≤ 0.017241Ωmm2/mo aluminum core ≤ 0.028Ωmm2/m.

2, flame retardant grade A, B, C, D, low smoke halogen-free WDZ, fire-resistant type NH, can be customized ZA-YJV, ZB-YJV, ZC-YJV (ZR-YJV), WDZ-YJV, N-YJV (NH-YJV).

3.The highest working temperature for yjv cable is 90ºC.

4, the cable should be laid at an ambient temperature of not less than 0 ºC, installed cable bending radius should be greater than 20 times the outer diameter of the cable. <5PC.

5,Laying temperature should be no less than 0ºC.

6.In the event of a short circuit, the highest temperature of the conductor should be no more than 160ºC for a duration of not more than 5 seconds.

7.YJV YJLV is suitable for indoor and outdoor laying, but cannot bear the action of mechanical external force. yjv22, yjlv22 are suitable for buried laying, can bear the action of mechanical external force, but cannot bear large tensile force.


Operation Characteristic

The installation of cables is not limited by the difference of elevation along the route. The ambient temperature should not be less than 0⁰C during  installation.The permissible bending radius for cable shall be complied with the following regulations:
For single core: 20(D+d) +/_ 5%
For multi-core: 15(D+d) +/_ 5%
(D--actual outer diameter of the cable; d--actual outer diameter of the conductor )
Single core cable of using in AC circuit shall be without armor or use non-magnetic metal material armor and shall not be laid in magnetic ducts.

Medium Voltage XLPE Cables Product Description:
Type:  CU/XLPE/PE                 AL/XLPE/PE
           CU/XLPE/SWA/PE         AL/XLPE/SWA/PE
MV TR-XLPE URD Cable (Medium Voltage TR-XLPE Insulated URD Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Medium Voltage Power Cable - URD-Primary Underground Distribution Cable

Property:
1). 15KV,25KV, 35kv TR-XLPE Insulation
2). 100% Insulation
3). Concentric Neutral
4). Maximum Conductor Temperature: Normal continuous 90°C, Overload 130°C, Short Circuit 250°C

Application:
Medium-Voltage TR-XLPE Power Cable is suitable for Primary underground Distribution System; buried directly or installed in underground ducts or conduits or exposed to sunlight for above ground application. To be used a 15,000 volts or less. Rated for continuous operation at 90ºC conductor temperature.
Construction:

Conductor Bare aluminum or copper stranded class B conductor (compressed stranding)Strand Shield Extruded semi-conducting strand shieldInsulation Cross-linked polyethylene (XLPE) or three-retardant cross-linked polyethylene (XLPE-TR) insulationInsulation Shield Extruded semi-conducting insulation shieldNeutral Wires Coated or uncoated copper concentric neutral wiresEmbedded Jacket Non-conducting linear low density PE (LLDPE) encapsulating jacket with extruded red stripes. Optional semi-conducting PE  jacket

Six main type of TR-XLPE power cables for Medium-Voltage Primary Distribution:

15kV TR-XLPE URD Cable 100% Insulation Level15kV TR-XLPE URD Cable 133% Insulation Level25kV TR-XLPE URD Cable 100% Insulation Level25kV TR-XLPE URD Cable 133% Insulation Level35kV TR-XLPE URD Cable 100% Insulation Level35kV TR-XLPE URD Cable 133% Insulation Level
XLPE insulated power cable is used to transmit and distribute power for the power transmission and distribution system of 35kV or lower. It is generally applied in the fields of power, construction, mine, metallurgy, petrochemical industry and communication. It completely replaces the oil immersed paper insulated power cable and partiallyreplaces the PVC insulated power cable.
