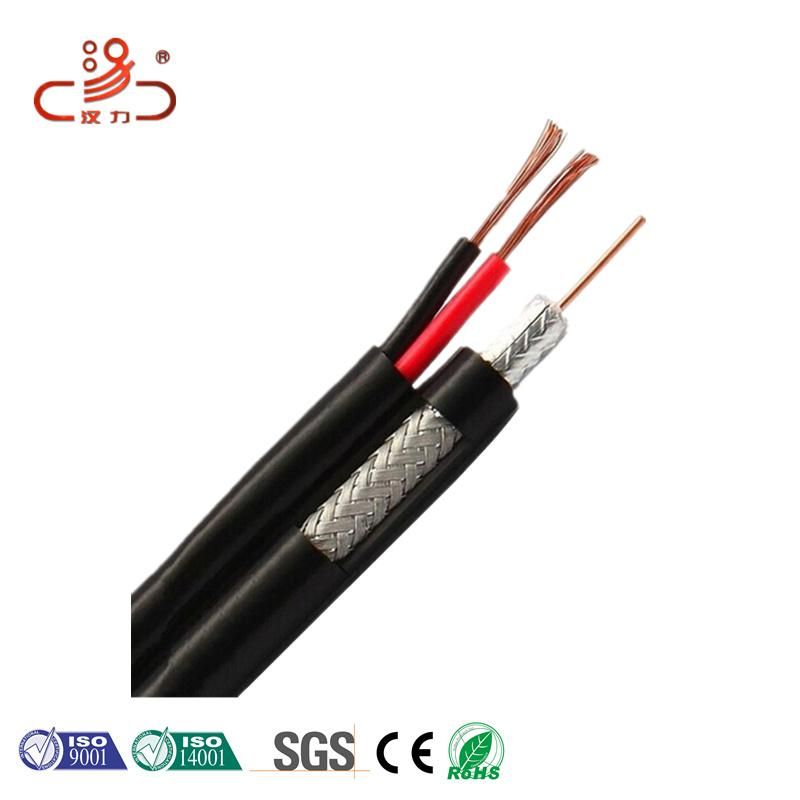

• Model NO.：RG59+2C
• Wire Core Material：Bare Copper Wire
• Certification：RoHS, CE, ISO9001
• Brand：Hanli or OEM
• Conductor：0.81mm Bc,CCS
• Insulation：Foam PE,Solid
• 1st Shield：Al Foil(Bonded)
• 2ND Shield：Braiding(CCA,Al-Ml)
• 3rd Shield：Al Foil
• Jacket：PVC,PE
• 2c Power Cable：0.5mm²-0.75mm² Bc,CCA
• Steel Wire Messenger：Optional
• Package：Wooden Reel,Carton,Pallet
• Packing Length：100m,305m,500m
• Transport Package：100,200,305,500m Wooden Reel
• Specification：18awg
• Trademark：Hanli or OEM
• Origin：Zhejiang China
• HS Code：8544200000
• Production Capacity：3000000m,Month

Impedance75±5OhmNominal capacitance53PF/mVelocity of propagation66%Insulation resistance>2000Mohm. KmInner conductor resistance13.5Ohm/KmOuter conductor resistance24.1Ohm/KmOperating temperature range-30°C-+70°CCable weight(approx. )116.4-140.4Kg/Km

Attenuation Frequency(MHz)Attenuation(dB/100m)Attenuation(dB/100FT)503.10.951004.21.282506.82.073007.52.293507.92.414008.52.594509.12.775009.52.955010.13.0860010.53.275012.13.6986013.24.02100014.34.36145018.65.672050237.01

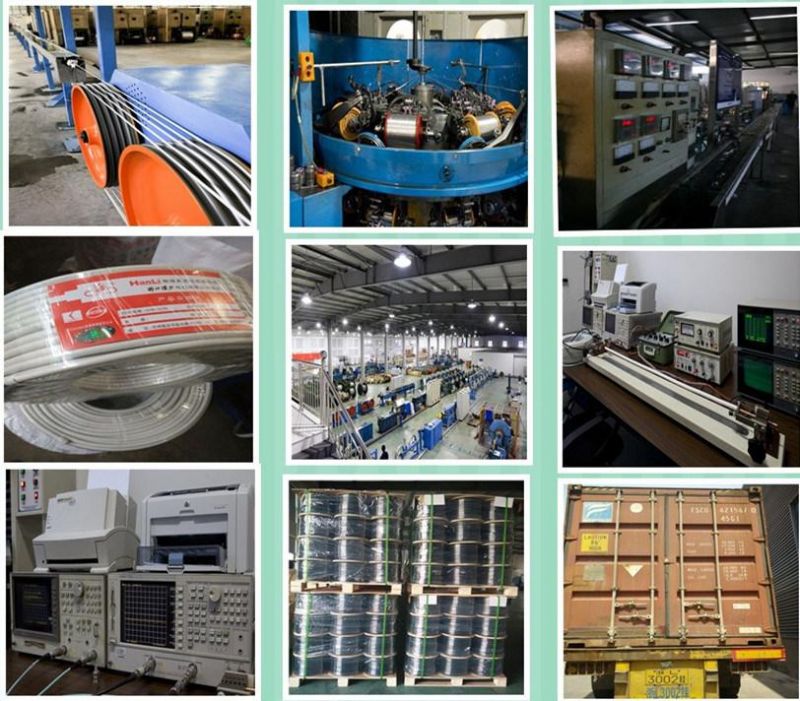

Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours. Wishing to be your long- term partner, please feel free to contact me, we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2. OEM/ODM available
3. Steady product quality
4. Strict quality control
5. Strictly conform to CE, RoHS, ISO9001
6. Quick delivery time(20FT, 25days)
