• Model NO.：ABC Cable
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：Jklyj
• Brand：Hongda
• Standard：IEC,BS,AS,NZS,SABS
• Color：as Your Require
• Core Number：as Your Require
• Rated Voltage：1kv-35kv
• Rated Temperature：70c 90c 120c 200c
• Armour：None Armour
• Strand Number：7,19,37,54,61,91
• Transport Package：Wooden Drum, Steel & Wooden Drum
• Specification：0.5mm2-400mm2
• Trademark：Hongda
• Origin：Henan China
• HS Code：8544492100
• Production Capacity：3000km,Month

Basic Info.

Model NO. ABC Cable Wire Core Material Aluminum Certification ISO, CCC Model Jklyj Brand Hongda Standard IEC,BS,AS/NZS,SABS Color as Your Require Core Number as Your Require Rated Voltage 1kv-35kv Rated Temperature 70c 90c 120c 200c Armour None Armour Strand Number 7,19,37,54,61,91 Transport Package Wooden Drum/ Steel & Wooden Drum Specification 0.5mm2-400mm2 Trademark Hongda Origin Henan China HS Code 8544492100 Production Capacity 3000km/Month

Product Description

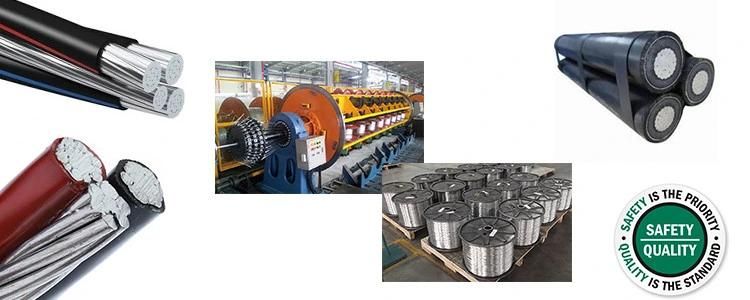

0.6-1kV XLPE Insulated Service Aerial Bundled Aluminum Overhead ABC Cable

1. Application
The cables are designed for aerial power lines with rated voltage Uo(Um) 10(12) kV ~35(40.5)kV.
2. Standard
GB/T14049  IEC60502 etc.
*KAIQI POWER can also design and produce for special application requirement.
3. Product properties and range
* Rated voltage is 10kV and 35KV
* No. of cores :  1 ,  Nominal cross-section(mm²): 16~300
* Max.Continuous permissive working temperature of conductor:
XLPE insulation should be not more than 90ºC.
*Max. Temperature at short circuit (the longest continuous time is not more than 5S) XLPE insulation is 250ºC.
* Installation temperature of cable should be not less than -20ºC.
*  Permissive bending radius of cable should be not less than 20(D+d) mm.
D -the actual overall diameter of cable ,mm;
d-the actual overall diameter of conductor ,mm.
* Insulation resistance of common insulation construction of aerial cable should be not less than 1500MΩ km, and insulation
resistance of thin XLPE insulated construction of light aerial cable should be not less than 1000mΩ km.
4. Products Type

Description	Chinese type
Aluminium core XLPE insulated aerial cable	JKLYJ/Q
Aluminium alloy core XLPE insulated aerial cable	JKLHYJ/Q
Copper core XLPE insulated aerial cable	JKYJ
Aluminium core XLPE insulated aerial cable	JKLYJ
Aluminium alloy core XLPE insulated aerial cable	JKLHYJ
Aluminum Conductor Steel Reinforced core XLPE  insulated aerial cable	JKLGYJ JKLGYJ/Q

5. Construction
Conductors :Round standed or compacted 1350-H19 aluminium or Copper conductor ,AAAC,ACSR
Conductor Screen:Extruded semi-conductive compound
Insulation : XLPE ( UV-resistant)
Note: The above provisions can be changed as order


6. Factory

     Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable
covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
     Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment
7. Packing and Transportation
  We provide you with the best product packaging design services, thereby allowing you to save more shipping charges

8. Certificate

9. FAQ
   Q: Are you the factory or the trading company?

    A: We are the factory.

   Q: How long is your guarantee Period?

    A: We uaually offer 1 year guarantee for our general products.

   Q: How can I get the samples?

    A: We can make the sample order. And usually we will charge for it.

        But the samples fee will be return to you when you make the bulk order.

   Q: Where is your factory? How can we visit your factory?

    A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.

        We can pick you up in the airport and the railway station.

   Q; What is your MOQ?

    A: It`s base on the cable type or wire type. Please contact me. We will let you know.
