• Model NO.：SITUO-1
• Material Shape：Round Wire
• Range of Application：Mine
• Certification：ISO9001, CE, UL, CCC
• Brand：Mafal
• Rated Voltage：0.6,1kv 33kv
• Wire Type：a Cable Wire
• Jacket：Nylon
• Gasoline & Oil Resistant：Mtw 90
• Sheath：PVC
• Customized Service：Yes
• Transport Package：Nude
• Specification：0.75mm2----150mm2
• Trademark：MAFAL
• Origin：Shanghai
• Production Capacity：20000m,Week

Basic Info.

Model NO. SITUO-1 Material Shape Round Wire Range of Application Mine Certification ISO9001, CE, UL, CCC Brand Mafal Rated Voltage 0.6/1kv 33kv Wire Type a Cable Wire Jacket Nylon Gasoline & Oil Resistant Mtw 90 Sheath PVC Customized Service Yes Transport Package Nude Specification 0.75mm2----150mm2 Trademark MAFAL Origin Shanghai Production Capacity 20000m/Week

Product Description

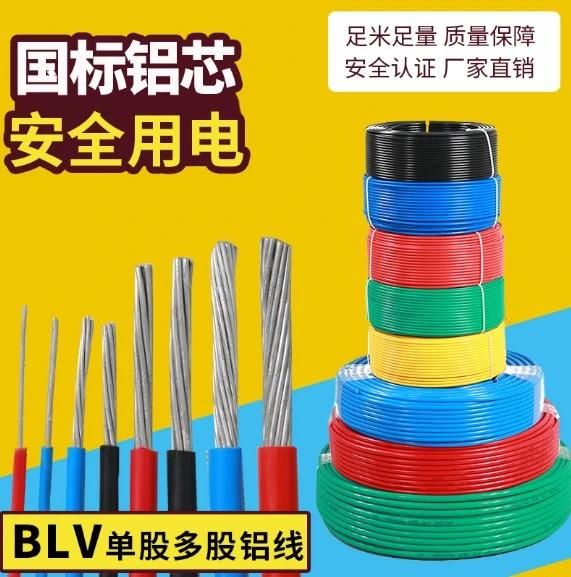

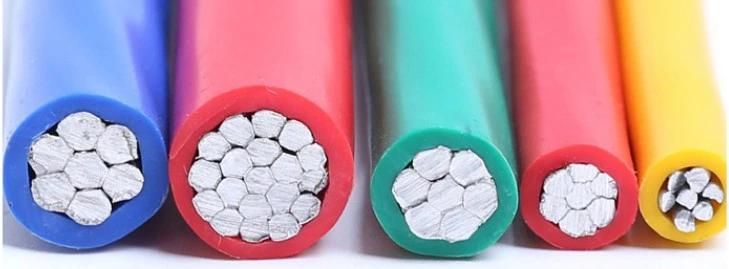

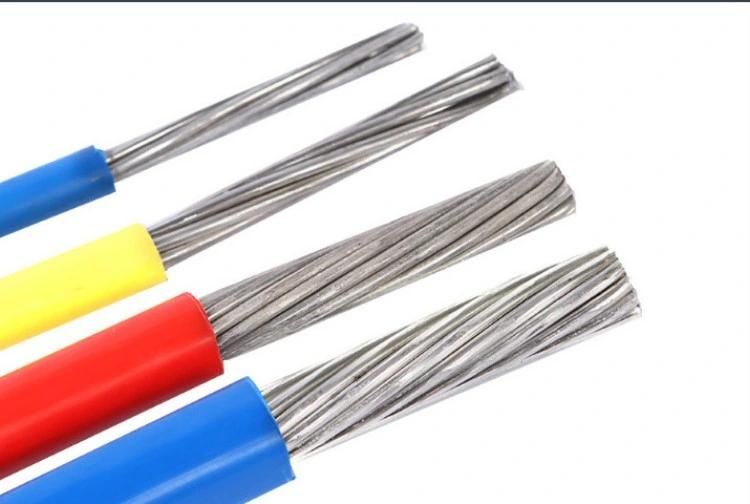

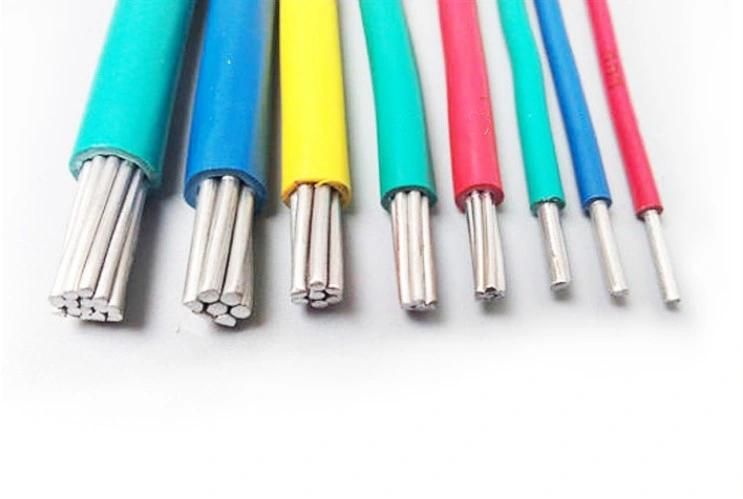

BLV single core aluminum wire 2.5m2 home decoration Line power cableProduct Description

Product specification:

Suitable where PVC insulated cables become brittle due to high temperature variations. Silicone insulated single cores are preferably used in the metallurgical industry, steel works, hot rolling mills, coking plants, foundries etc. Insulation consists of silicone rubber. It is resistant to vegetable and animal fat, many types of oil and diluted acids. No decomposition occurs when exposed to alcohol, alkaline solutions, etc. The insulation is resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof.



Product characteristic:

Construction:

Fine tinned copper strands
Strands to VDE-0295 Class-5, IEC 60228 Cl-5
Silicone core insulation
Cores to VDE-0293 colors on chart

Technical:

Working voltage: 300/500 volts
Test voltage: 2000 volts
Bending Radius: 15 x Ø
Temp range: -50º C to +180º C
Short time temp up to +220º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km



Properties:

Advantages
High ignition or flash point

Resistant to
High molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen

Halogen-free
According to DIN VDE 0482 part 267/ EN 50267-2-1/ IEC 60754-1 (equivalent DIN VDE 0472 part 815)

Behavior in fire
No flame propagation
Test according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)

For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding 90°C.

Characteristics


AWG	NO. OF CORES	CONDUCTOR CROSS SECTION MM²	NOMINAL OD MM	COPPER WEIGHT KG/KM	GROSS WEIGHT KG/KM
24	1	0.25	1.9	2.4	5.5
20	1	0.5	2.1	4.8	8.6
18	1	0.75	2.4	7.2	11.8
17	1	1	2.5	9.6	13.5
16	1	1.5	2.8	14.4	18.5
14	1	2.5	3.4	24	30
12	1	4	4.2	38	47.3
10	1	6	5.2	58	71.1
8	1	10	7.1	96	119.4
6	1	16	8.4	154	187.7
4	1	25	10.3	240	289.6
2	1	35	11.6	336	398.3
1	1	50	13.9	480	559.7
2/0	1	70	16.0	672	765.8
3/0	1	95	18.4	912	1031.5
4/0	1	120	20.0	1152	1284.6
300kcmil	1	150	23.0	1440.0	1563.4
350 kcmil	1	185	24.9	1776.0	1858.2

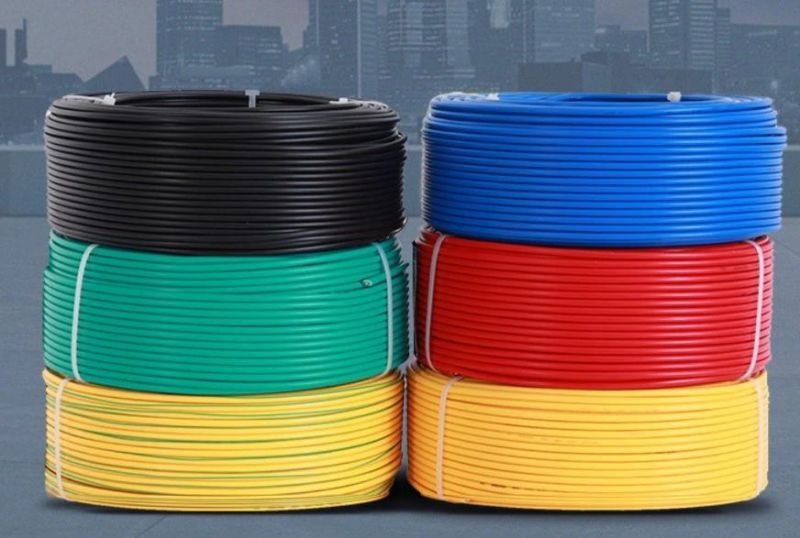

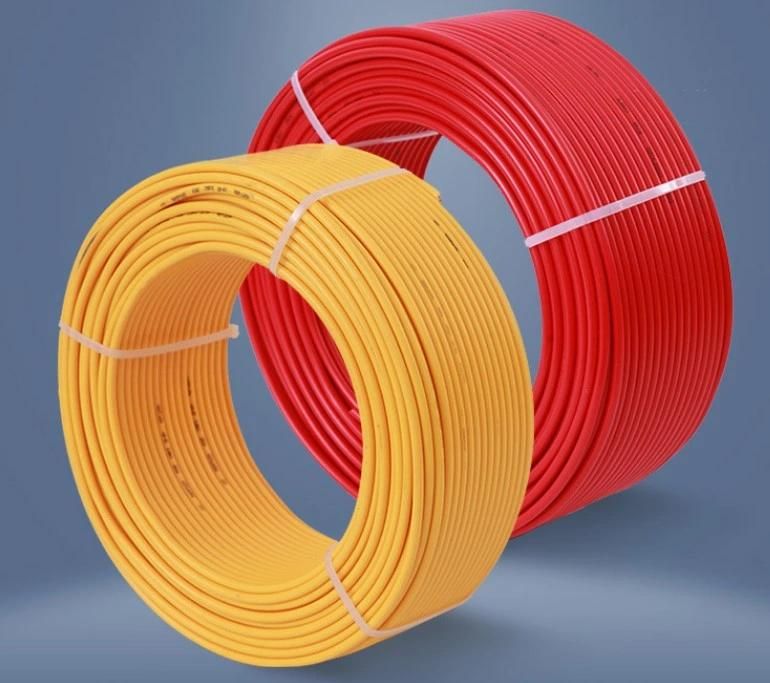

 PHOTOS:

Our Seivice:
1.. Which countries do we export to?
Asia: Philippine,Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: Sudan, Ethiopia, Libya, Ghana,Algeria,Nigeria,Guinea,Mozambique ,Kenya,etc
2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare
parts,like engines,bridge,transmissions,and many parts designed and produced
by ourselves,always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust
our price based on two situations:
1)The rate of USD
2)TheThe price of material

Contact me!
