• Model NO.：FTTH drop cable
• Core：Double Core
• Certification：RoHS, UL, CE, ISO9001, Drop Cable
• Brand：OEM
• Sheath Material：LSZH or PVC
• Product Name：Drop Cable
• Messenger Material：Steel Wire
• Other Messenger Material：FRP, Kfrp
• Jacket Material：LSZH
• Jacket Color：Black, White
• Installation：Indoor & Outdoor Aerial Drop Cable
• Optical Fiber：G.657A
• Fiber Color：Blue, Orange, Green, Brown
• Diameter：2.0mm*5.0mm
• Messenger Od：1.0mm
• Transport Package：Wooden Drum
• Specification：SGS ROHS REACH ISO
• Trademark：TW-SCIE,OEM
• Origin：China (Mainland)
• HS Code：8544700000
• Production Capacity：200km,Day

Basic Info.

Model NO. FTTH drop cable Core Double Core Certification RoHS, UL, CE, ISO9001, Drop Cable Brand OEM Sheath Material LSZH or PVC Product Name Drop Cable Messenger Material Steel Wire Other Messenger Material FRP, Kfrp Jacket Material LSZH Jacket Color Black, White Installation Indoor & Outdoor Aerial Drop Cable Optical Fiber G.657A Fiber Color Blue, Orange, Green, Brown Diameter 2.0mm*5.0mm Messenger Od 1.0mm Transport Package Wooden Drum Specification SGS ROHS REACH ISO Trademark TW-SCIE/OEM Origin China (Mainland) HS Code 8544700000 Production Capacity 200km/Day

Product Description

1-4 Core Communication Telecom FTTH Fiber Drop Cable



Description:

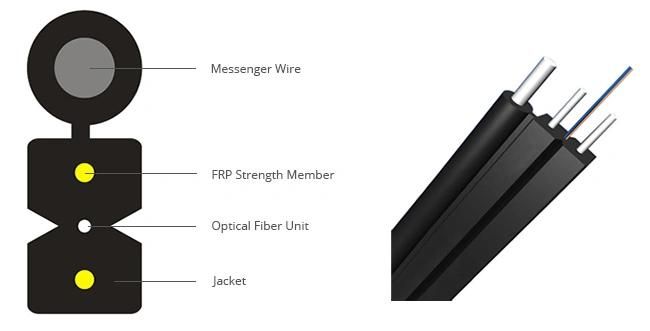

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.



Feature:

• Two parallel FRP strangth members ensuregood performance of crush resistance to protect the fiber
• Simple structure ,light weight and high practicability
• Novel flute desig,easily strip and splice ,simplify the installation and maintenance
• Low smoke zero halogen and flame reardant sheath



General Specifications:

Cable Type	FTTH outdoor drop fiber optic cable
Fiber Type	SM G652D/ SM G657A1/ SM G657A2
Application	Communication, LAN
Recommended installation methods	href="http://tw-scie.en.made-in-china.comwll08knDbUq56AH-LU1t2wnK9etc1FOG4GGYPn6kr-yfnp3wi1XEluGGn0nqLfow..&query=Gas+blowing+pipe+installation" aerial or duct installation
Temperature Range	-20ºC to 60ºC

Cable Design:

Item	Description
Model No	GJYXH/GJYXFH
1. Fiber count	1 Core/2 Core/4 Core
2. Cable Diameter	5.0*2.0mm
3. Cable Weight	21.5KGS/20.0KGS
4. Strength member
-Material	STEEL/FRP
-Diameter	0.45mm
5.Outer Sheath
-Material	LSZH
6. Sheath marking
-Type of marking	Laser printing
7. Messenger
OD	1.0mm
Material	Steel wire

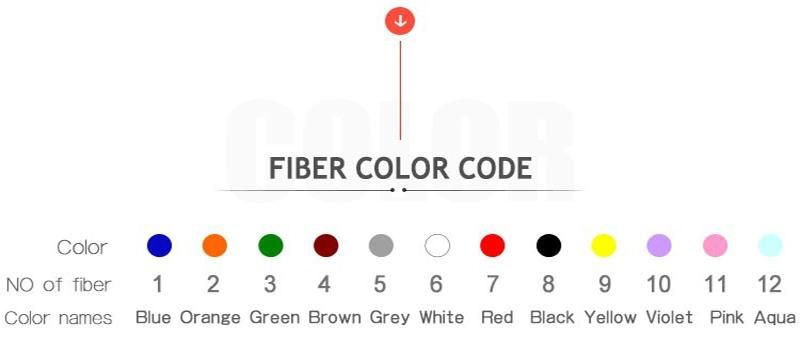

Standard Color Identification of Fiber:


Packaging & Delivery:
Packaging Details: in small drum with carton
Delivery Time: 3 working days

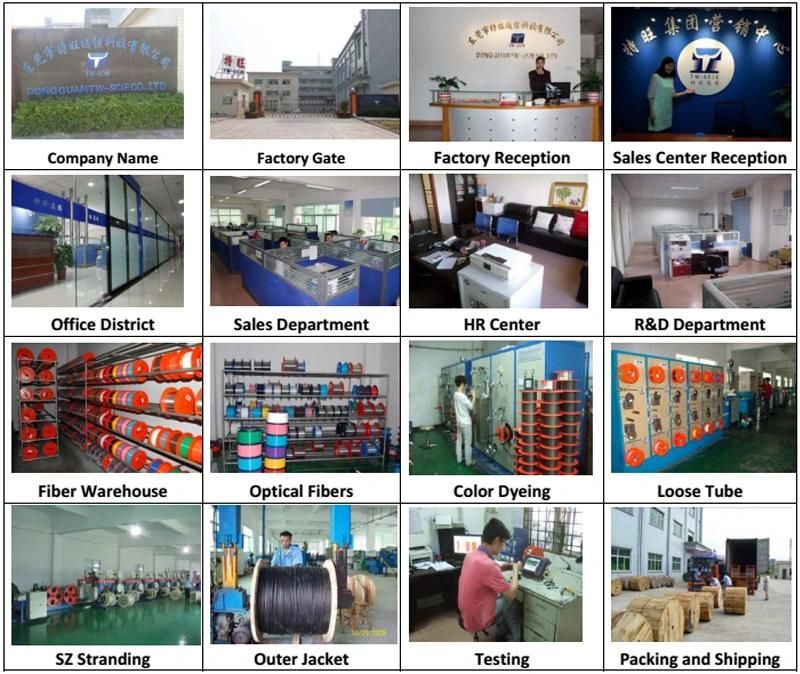

Our Company:

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication



Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

Certificates:



FAQ

Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.

Q2: How many years experience in producing?
A2: More than 10 years, and our engineers have more than 20 years product experience.

Q3: Can provide sample to us?
A3: Yes,sample below 10m can be provided freely, but you need pay freight cost.

Q4: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,please give us letter of authorization.

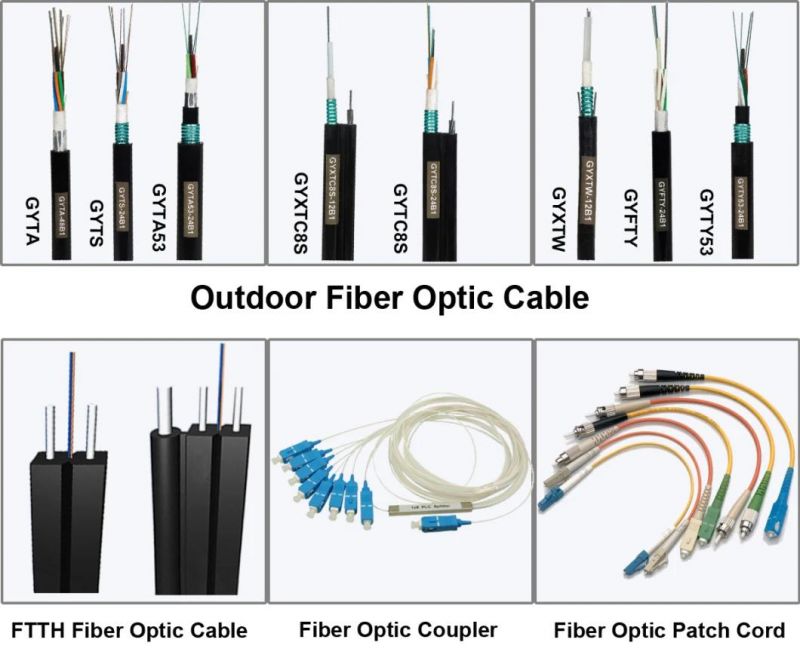

More Products:
