High Capacity Pine Wood Cable Spool
NINGBO ONEREEL MACHINE CO., LTD.- Type：Wooden Spool
- Certification：CE, RoHS, ISO
- Customized：Customized
- Condition：New
- Feature：Insulation
- Material：Pine Wood
Base Info
- Model NO.：700-2200
- Transport Package：Industrial Packing
- Trademark：ONEREEL
- Origin：Ningbo China
- HS Code：4421901090
- Production Capacity：1000 Pieces,Month
Description
Commodity

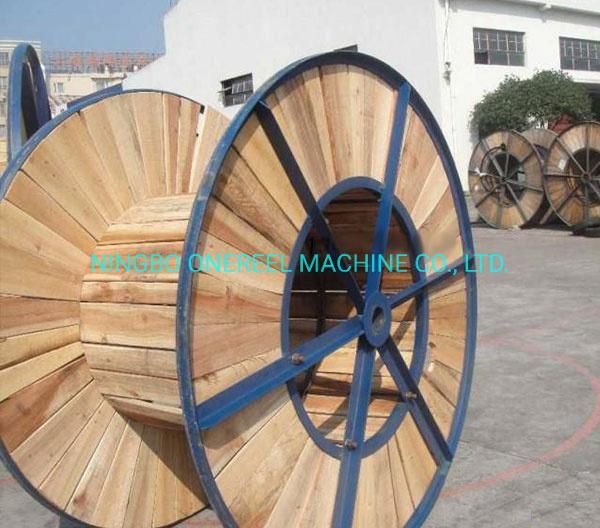

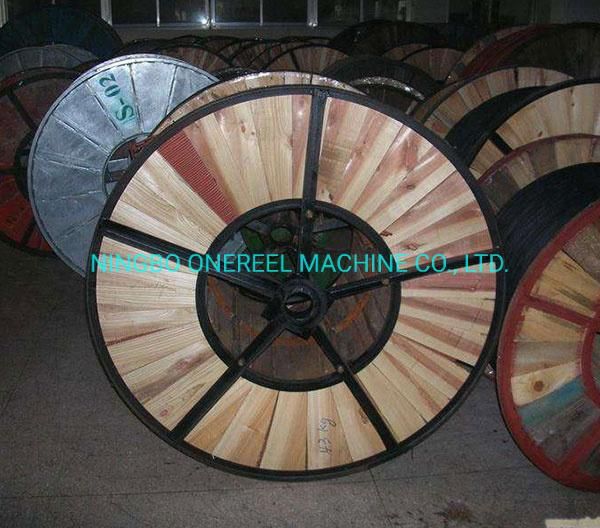

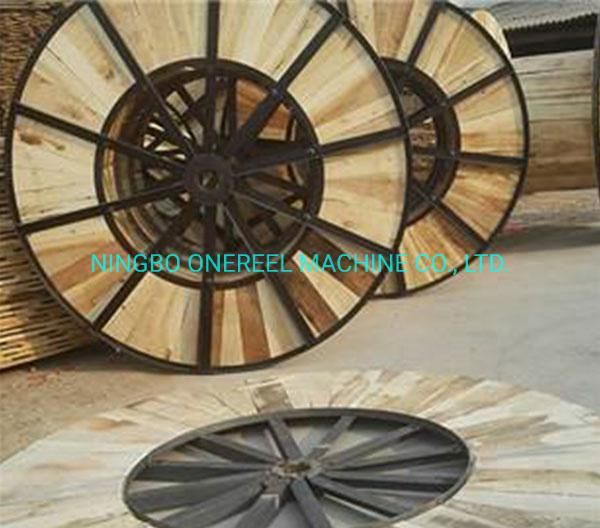

Wooden Cable Drums
Wooden & Steel Cable Drums
Plywood Cable Drums
Steel Cable Drums
Certificate of the cable drum
ISO 9001-2000
Heat Treatment ISPM NO.15 Fumigation
Certificate of Origin
Advantages
Competitive price with fine raw materials (kiln dried pine wood)
Timely delivery (market our own products)
Design & produce customized products
Application
Cable and wire packaging
Materials
Wood pine, Mix hard wood, Steel, Rubber
Flange diameter
400mm~4000mm with double/triple/quad flanges
Production Capacity
1000 sets per month
Delivery time
According to the quantity
The specifications of the wooden cable drums
| Max. Flange Diameter | a | 700 | 900 | 1000 | 1100 | 1400 | 1600 | 2200 |
| Core Diameter | b | 325 | 425 | 500 | 575 | 800 | 950 | 1400 |
| External width | d | 576 | 626 | 715 | 765 | 980 | 1012 | 1185 |
| Internal width | e | 500 | 550 | 600 | 650 | 850 | 850 | 1000 |
| Spinle hole diameter | f | 75 | 75 | 106 | 106 | 106 | 106 | 132 |
| Drive hole diameter | g | 40 | 40 | 50 | 50 | 50 | 50 | 65 |
| Offset: Drivehole centre from flange centre | c | 100 | 100 | 150 | 150 | 150 | 150 | 250 |
| Number of Drive Holes (evenly spaced) | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Flange thickness | a1 | 19 | 19 | 22 | 22 | 25 | 28 | 32 |
| Cable hole diameter | a2 | 30 | 30 | 40 | 40 | 50 | 70 | 110 |
| Cable hole length | a3 | 110 | 110 | 130 | 130 | 250 | 400 | 500 |
| Core slat retaining slot (Depth x Min width) | a5 | 8*17 | 8*17 | 8*17 | 8*17 | 8*23 | 10*30 | 10*30 |
| Thru bolt holes (diameter seperation on flange) | a6 | 260 | 360 | 435 | 510 | 720 | 850 | 1290 |
| Number of thru bolts | 3/M8 | 4/M10 | 4/M10 | 4/M10 | 6/M12 | 6/M16 | 8/M20 | |
| Centre Bushing (No info) | Det. 60 | Det. 60 | Det. 61 | Det. 62 | Det. 44 | |||
| Core Slats (Width and Length) - rounded profile | b4 | 16*95 | 16*95 | 16*95 | 16*95 | 22*120 | 28*120 | 28*120 |
| Core Slats (Number) | 10 | 14 | 16 | 19 | 21 | 25 | 37 | |
| Middle ring diameter | b1 | 756 | 894 | 1344 | ||||
| Middle ring thickness | b3 | 16+16 | 19+19 | 19+19 | ||||
| Core slat end support thickness | b2 | |||||||
| Nail Dimensions (?) | 45-21 | 45-21 | 50-25 | 50-25 | 55-25 | 65-34 | 70-34 | |
| No. nail rows per flange | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Nail row distance from flange centre | nr:1 | 310 | 410 | 450 | 500 | 650 | 750 | 1040 |
| Nail row distance from flange centre | nr:2 | 265 | 360 | 400 | 450 | 500 | 600 | 840 |
| Nail row distance from flange centre | nr:3 | 220 | 280 | 320 | 375 | 320 | 360 | 530 |
| Nail row distance from flange centre | nr:4 | |||||||
| Nail row distance from flange centre | nr:5 | |||||||
| Weight (kg) | 20 | 32 | 49 | 58 | 115 | 180 | 362 | |
| Maximum Load (kg) | 400 | 600 | 800 | 850 | 2000 | 2500 | 4500 | |
| Windign Volume (dm3) | 119 | 227 | 231 | 362 | 667 | 860 | 1729 |
If there's no item that is suitable for your needs, kindly advise details as follows:
(1). Kind of cable;
(2). Cable diameter;
(3). Length of cable;
(4). Weight of cable;
Our technicians can design cable drums according to above details with superior quality that matches customers' needs.
