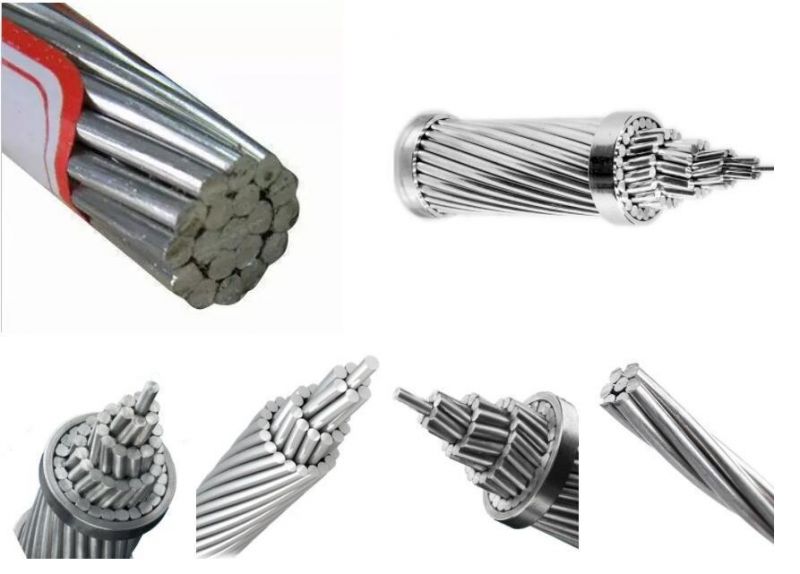

All Alloy Conductor AAAC Sorbus Conductor Bare AAAC
HENAN BAOFENG CABLE CO., LTD.- Certification：Ce,ISO,Rosh,CCC,Iecee
- Standard：IEC, ASTM, IEC, BS, DIN, GB,T etc
- Type：Bare
- Material：Aluminum Alloy
- Item：Bare Cable
- Insulation：None
Base Info
- Model NO.：AAAC
- Sheath：None
- Brand：Hnbf Cable
- Transport Package：Cable Drum
- Specification：16mm2 25mm2 ---1000mm2
- Trademark：HNBF
- Origin：China Henan
- HS Code：7614900000
- Production Capacity：500 Kilometer,Kilometers Per Month
Description
ALL ALUMINIUM ALLOY CONDUCTOR DIN 48201Nominal
area Actual
area Stranding and wire
diameter Overall
diameter Linear
mass Nominal Breaking Load Max. DC
resistance at 20ºC mm2 mm2 No./mm mm kg/km daN Ω/km 16 15.89 7/1.71 5.1 43 444 2.091 25 24.25 7/2.10 6.3 66 677 1.3703 35 34.36 7/2.50 7.5 94 960 0.9669 50 49.48 7/3.00 9.0 135 1382 0.6714 50 48.36 19/1.80 9.0 133 1350 0.6905 70 65.82 19/2.10 10.5 181 1838 0.5073 95 93.27 19/2.50 12.5 256 2605 0.3579 120 117 19/2.80 14.0 322 3268 0.2854 150 147 37/2.25 15.2 406 4109 0.2274 185 181 37/2.5 17.5 501 5073 0.1842 240 242.54 61/2.25 20.2 670 6774 0.1383 300 299.43 61/2.50 22.5 827 8363 0.112 400 400.14 61/2.89 26.0 1104 11176 0.0838 500 499.83 61/3.23 29.1 1379 13960 0.06709 625 626.2 91/2.96 32.6 1732 17490 0.054 800 802.1 91/3.35 36.9 2218 22402 0.0418 1000 999.71 91/3.74 41.1 2767 27922 0.0335
Packing & Delivery

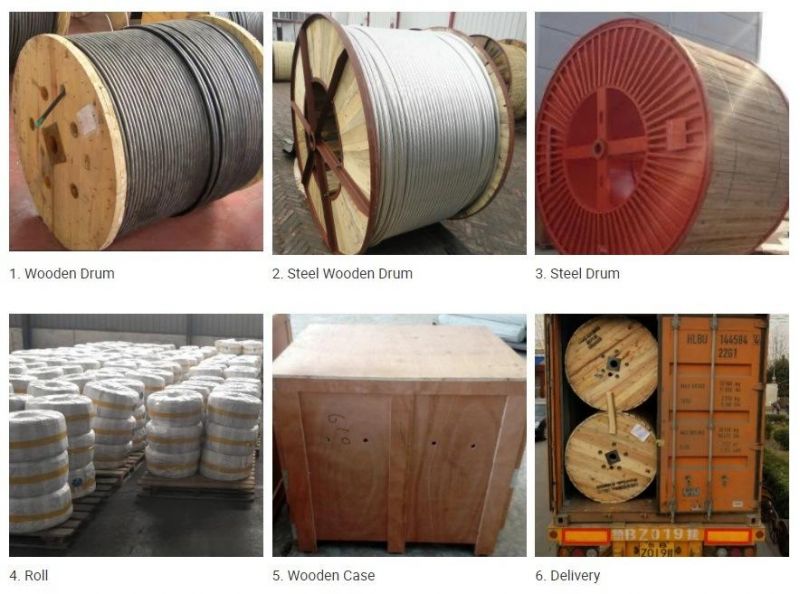

Packing Details : Wooden Drum, Steel Wooden Drum, Steel Drum, Roll, Wooden Case or your requirement.
Delivery Details : 3-30 days.

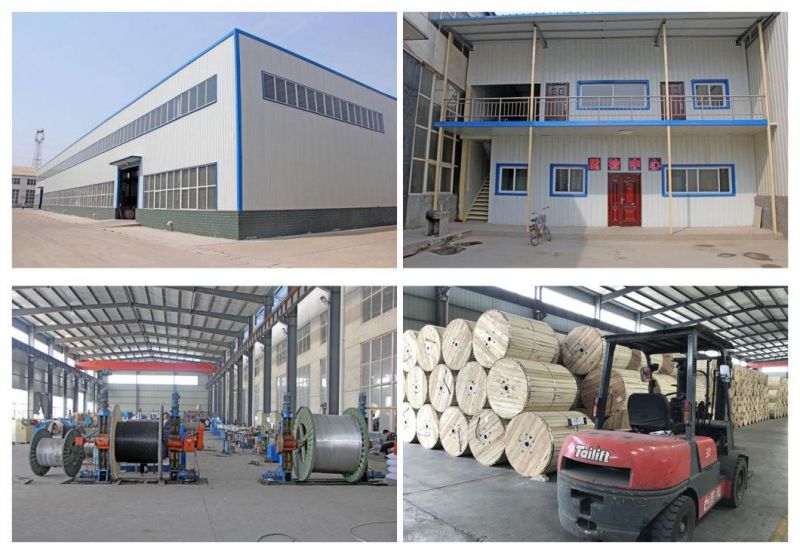

Our Company
Our Certifications
Why Choose Us1. Strict quality control system, excellent quality with reasonable price.
