CPR ETL RoHS Authentication High Quality FTP CAT6 LAN Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：ftp cat6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CPR,ETL,SGS
  • Model：FTP CAT6
  • Brand：Risun or OEM
  • Color：as Request
  • Insualtion：HDPE
  • UV, Jelly, Fr：Available
  • Shield：Al,Pet Foil
  • Filler：Yes
  • Transport Package：305m,Pull Box, 2boxes,CTN.
  • Specification：0.57cu, 1.00HDPE, 7.4VC, LSZH, PE
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Basic Info.

Model NO. ftp cat6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CPR,ETL,SGS Model FTP CAT6 Brand Risun or OEM Color as Request Insualtion HDPE UV, Jelly, Fr Available Shield Al/Pet Foil Filler Yes Transport Package 305m/Pull Box, 2boxes/CTN. Specification 0.57cu, 1.00HDPE, 7.4VC, LSZH, PE Trademark Risun or OEM Origin Hangzhou, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

CPR ETL RoHS Authentication High quality FTP CAT6 lan cable
Company informationFTP CAT6A Buitenkabel Soepel 100m CCAConfiguration
1. Conductor: 0.57±0.01mm(23AWG) Bare copper
2. Insulation: 1.350±0.05mm FPE
3. Shield: Al Foil
4. Drain wire: 0.4mmTC
5. Ripcord
6. Sheath: LSZH

Electrical Specifications
dc Resistance, maximum7.61 ohms/100 m | 2.32 ohms/100 ft
Mutual Capacitance at Frequency4.2 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)79 %
Operating Frequency, maximum500 MHz

Packing

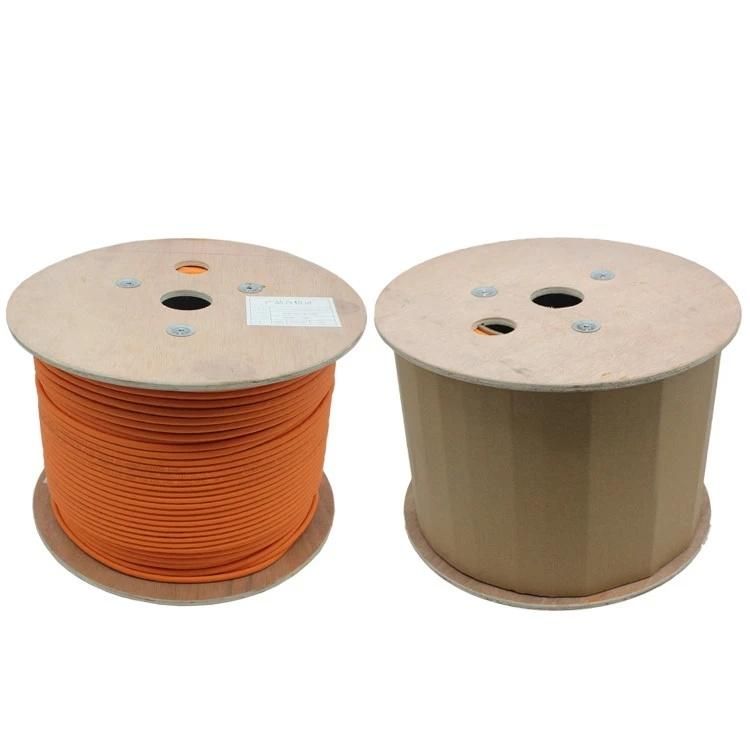

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.

1000FT CAT6A U/FTP 23AWG 4-Pair Ethernet Cable
1000FT CAT6A U/FTP 23AWG 4-Pair Ethernet Cableprocess of production1000FT CAT6A U/FTP 23AWG 4-Pair Ethernet Cable
FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Mass production time needs 20-25 days.

Q3. Do you have any MOQ limit for order?
A: Normally, 10kms per one specification and one color.

Q4. How do you ship the goods and how long does it take to arrive?
A: Normally by sea shipping. (sample order also available by air or courier)

Q5. How to proceed an order for cables?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q6. Is it OK to print my logo on cables?
A: Yes. Please inform us formally before our production.
