Opgw Optic Fiber
DONGGUAN TW-SCIE CO., LTD.- Application：Communication
- Type：Single-mode Fiber
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
- Core：2-288 Opgw Optic Fiber Cable
Base Info
- Model NO.：OPGW Optic Fiber Cable
- Certification：RoHS, CE, ISO9001
- Brand：Tw-Scie, ODM, OEM
- Sheath Material：PE or Anti-Track
- Transport Package：Wooden Drum
- Trademark：TW-SCIE or OEM
- Origin：China (Mainland) Guangdong Dongguan
- HS Code：854470000
- Production Capacity：100km,Dat
Description
Layer 120%AS wire 4 2.70 mm SUS-Tube 2 2.70 mm Layer 2 20%AS wire 10 2.70 mm According to IEEE std 1138,IEC 60794-4 standards Fiber No. & Type 48 G652D Standard Diameter 13.50 mm Supporting Cross Section 97.30 mm2 Section of AS wire 97.30 mm2 Approximate mass 687.0 kg/km Rated Tensile Strength 117.0 kN Maximum Allowable Tension(40%RTS) 46.8 N/mm2 Everyday Stress(25%RTS) 29.3 N/mm2 Strain Margin Stress(70%RTS) 81.9 N/mm2 Modulus of Elasticity 162.0 GPa Thermal Elongation Coefficient 13.0 ×10-6/ºC Calculated D.C. Resistance at 20ºC 0.878 Ω/km Short-Circuit Current Capacity(40~200ºC, 0.25s) 45.3 kA2·s Ratio between Pull and Weight 17.40 km Temperature Installation -10ºC~+50 ºC Range: Transportation and Operation -40ºC~+80 ºC
About our company:

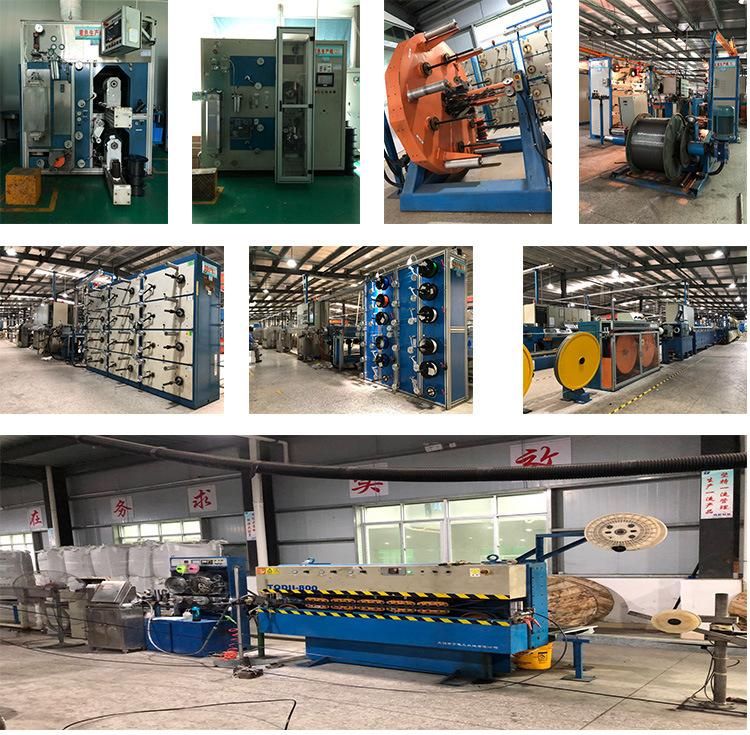

pruduction environment:
Transportation:
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
Q4: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,please give us letter of authorization.
Certificates:
More Products:
Tag: OPGW cable, OPGW optic fiber cable, OPGW fiber cable,OPGW factory
About our company:
pruduction environment:
Transportation:
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China. All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 10 years, and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 10m can be provided freely, but you need pay freight cost.
Q4: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,please give us letter of authorization.
Certificates:
More Products:
Tag: OPGW cable, OPGW optic fiber cable, OPGW fiber cable,OPGW factory
