• Model NO.：AV6471 Fusion Splicer
• Average Splicing Loss：0.02dB(Sm),0.01dB(mm),0.04dB(Ds),0.04dB(Nzds)
• Return Loss：<-60dB
• Operation Mode：Auto,Half Auto,Manual
• Align Mode：Advanced PAS Align Mode.
• Fiber Diameter：Clad Diameter:80um-150um
• Magnification：Vertical 152times,Horizonl 304times.
• Pull Test：Standard 2n(Optional).
• Battery Lifetime：Cycle Life up to 300-500 Times,Replaceable.
• Weight：2.3kg(No Battery ),2.8kg(Include Battery)
• Transport Package：Carton Box
• Specification：L*W*H=160*150*140(mm)
• Trademark：Fiberlink
• Origin：China
• HS Code：8515809090
• Production Capacity：1000000 Per Month

Typical application for AV6471 Fusion SplicerTechnical  Parameter:  Main  Technical  ParameterApplicable Fiber SMF(ITU-T G.652),MMF(ITU-T G.651),DSF(ITU-T G.653),NZDSFAverage Splicing Loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)Return Loss <-60dBOperation Mode Auto,Half auto,ManualAlign Mode Advanced PAS align mode.Fiber Diameter clad diameter:80µm~150µm,coating diameter:100µm~1000µmCleave Length 8~16mm(coating diameter<250µm), 16mm(coating diameter 250~1000µm)Magnification Vertical 152times,horizonl 304times.Image Display 5.7' 640*480 LCD.Pull Test Standard 2N(optional).Heat-Shrinkable Tube 40mm,60mm and a series of micro Heat-Shrinkable Tubing.Battery Capacity Typcally splice 220 times, charging for 3.5 hour(available when charge). Battery Lifetime  Cycle life up to 300~500 times,replaceable.Electrode Lifetime  >4000 times,replaceableLighting for Construction  Built-in super High-brightness LED supply convenience for night workPorts  USB,VGAPower Supply  Built in 11.1V Lithium Ion Battery.AC adopter(input AC100~240,output    DC13.5V/4.5A)    Environment Adaptation  Temperature range:-10ºC~50ºC;Humidity:95%RH(40ºC,no condensing);  Altitude:0~5000m    Size  L×W×H=160×150×140(mm)Weight  2.3kg(no battery ), 2.8kg(include battery)
Indent Information:

Main body:AV6471 Fusion Splicer

Standard equipment:
 1  1AV6471 Fusion Splicer  2AC power adpoter1    1  3AC current cable  4Standby electrode1  5Blower brush1    1  6Bottle with siphon  7Fiber bracket1    1  8User's manual  9Luxury tote kit1    1  10Fiber Cleaver  11Li-Ion battery1 Optional equipment:    KeyDescriptionRemark  1Fiber CleaverAV33012  2Li-Ion battery11.1/10AH  3Tool kit/

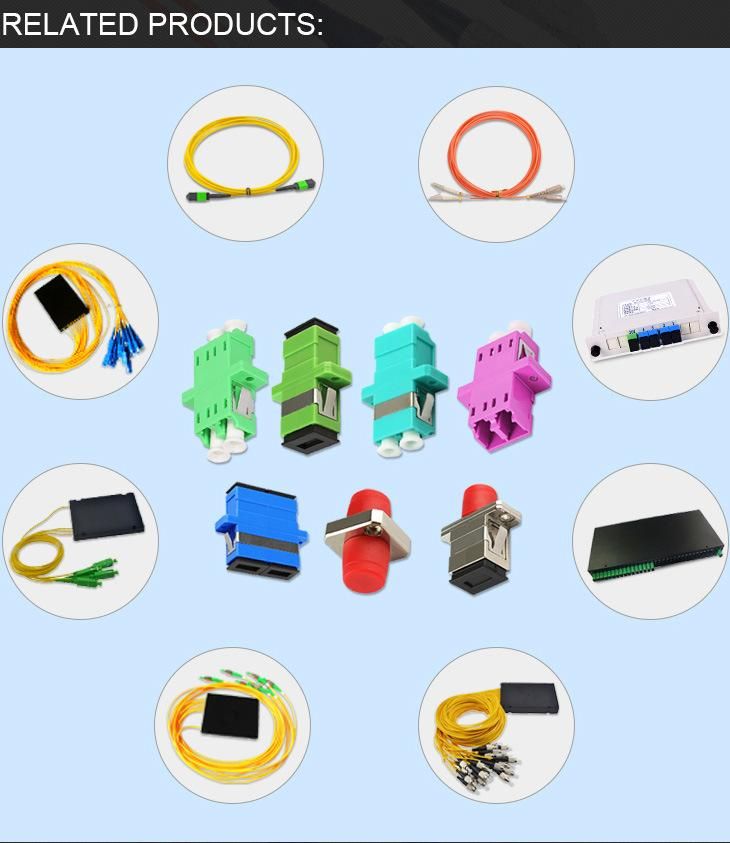

Related products

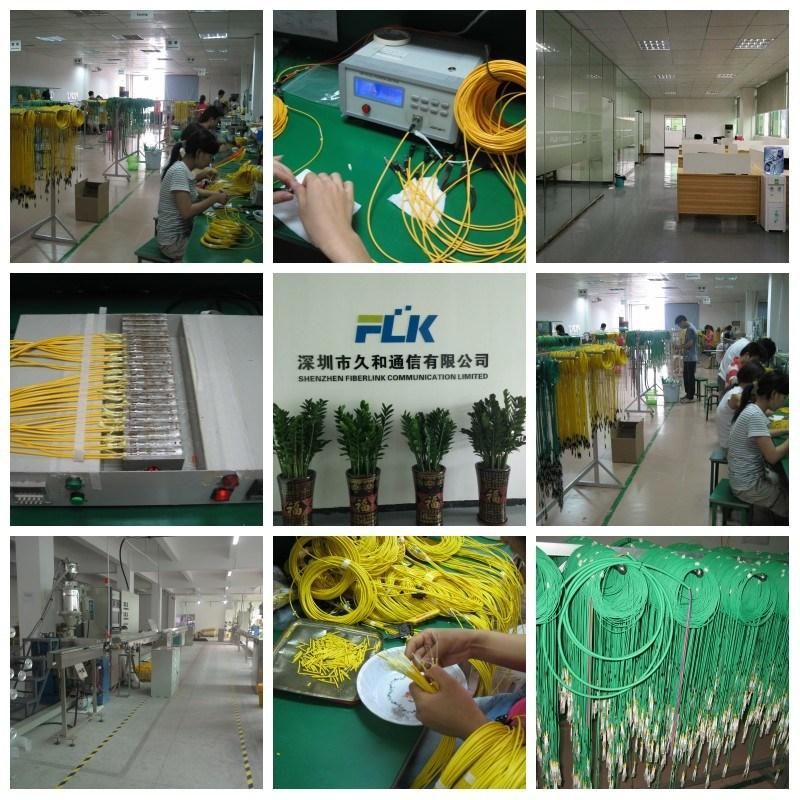

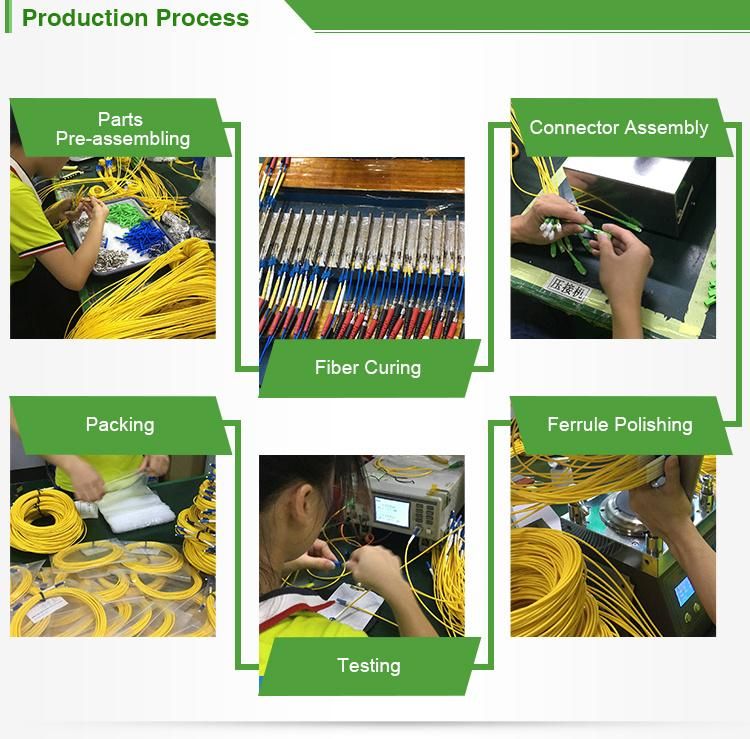

Our fiber patch cord production line:
