• Model NO.：Fiber Optic Patch Cord
• Core：Single Core
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：OEM
• Sheath Material：PVC
• Polishing Type：PC, Upc, APC
• Insert Loss：< 0.30dB
• Fiber Type：Sm, Om1, Om2, Om3, Om4, Om5
• Cable Diameter：0.9mm, 2.0mm, 3.0mm or Customization
• Jacket Material：PVC,LSZH,Ofnr,Ofnp,TPU
• Length：0.3-1000 Meter
• Transport Package：in Carton
• Specification：0.9,2.0,3.0mm or customization
• Trademark：DF
• Origin：Shenzhen, China
• HS Code：854470000
• Production Capacity：100, 000PCS,Week

Basic Info.

Model NO. Fiber Optic Patch Cord Core Single Core Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand OEM Sheath Material PVC Polishing Type PC, Upc, APC Insert Loss < 0.30dB Fiber Type Sm, Om1, Om2, Om3, Om4, Om5 Cable Diameter 0.9mm, 2.0mm, 3.0mm or Customization Jacket Material PVC,LSZH,Ofnr,Ofnp,TPU Length 0.3-1000 Meter Transport Package in Carton Specification 0.9/2.0/3.0mm or customization Trademark DF Origin Shenzhen, China HS Code 854470000 Production Capacity 100, 000PCS/Week

Product Description

2mm 3mm SM OS2 OM1 OM2 OM3 OM4 OM5 Fiber Optic Patch Cord

Description

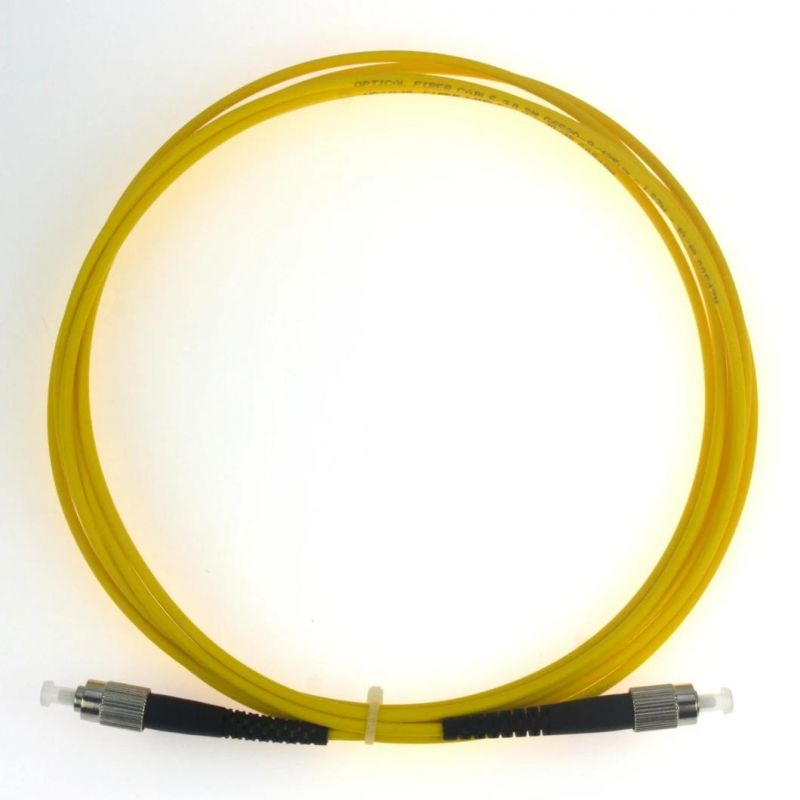

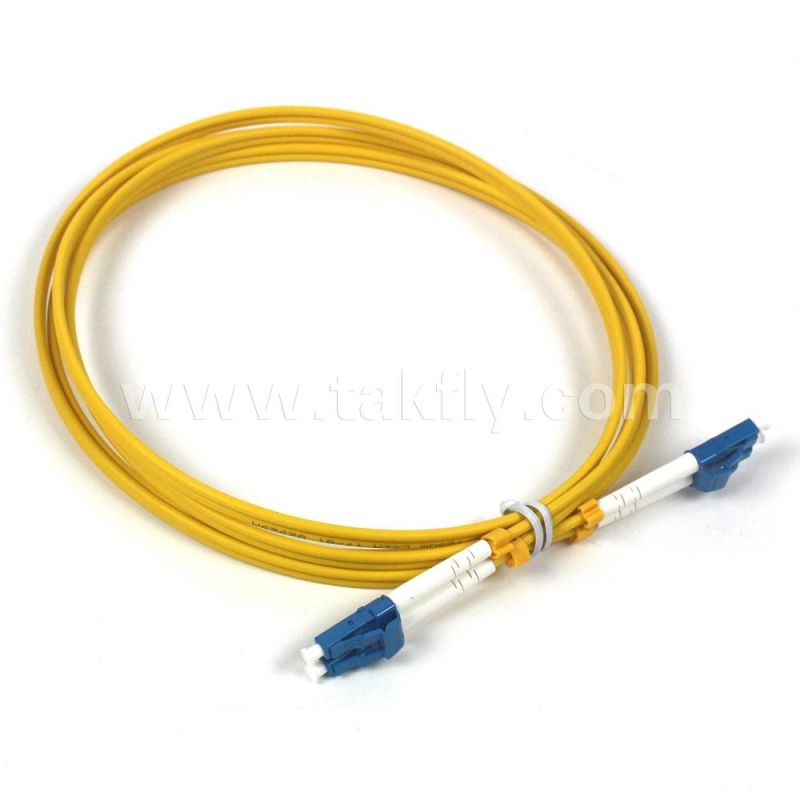

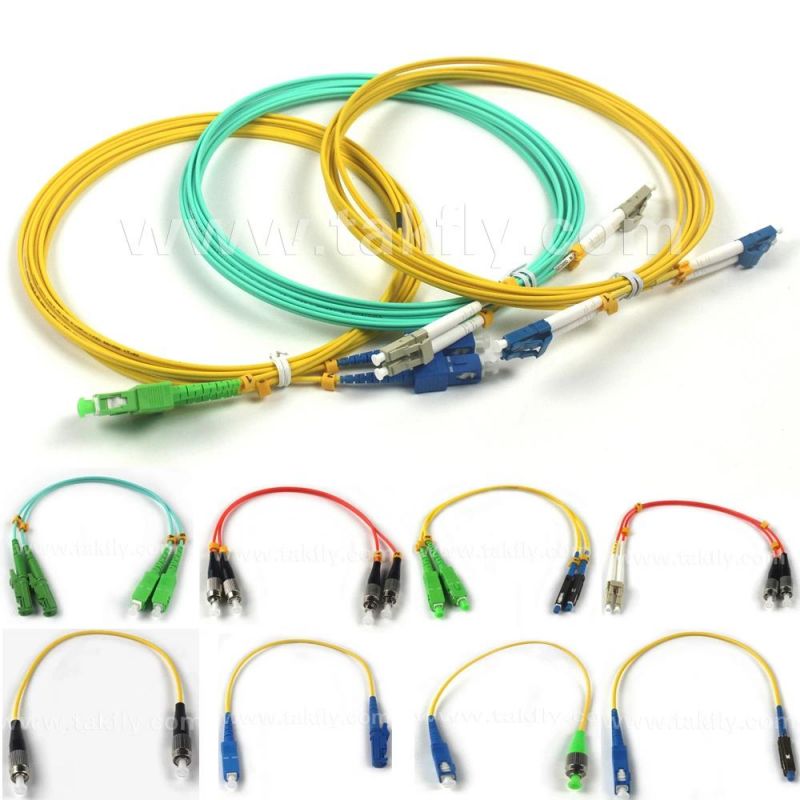

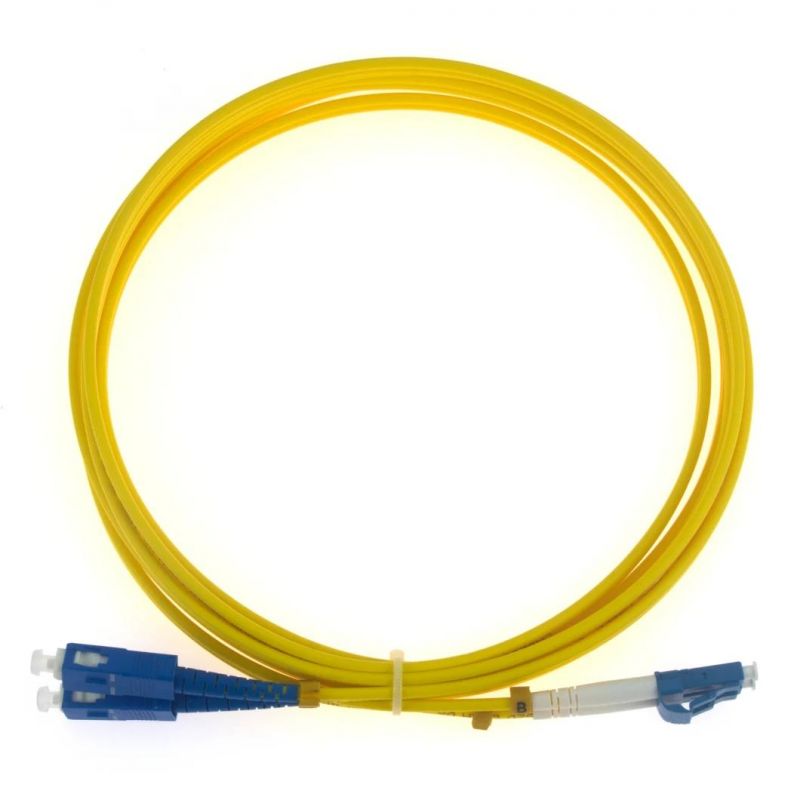

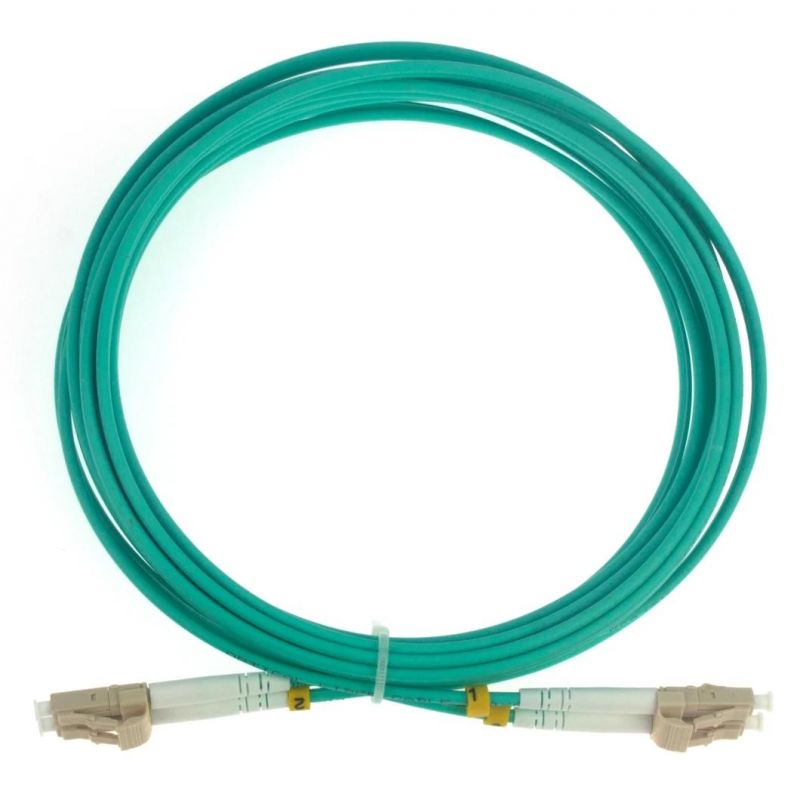

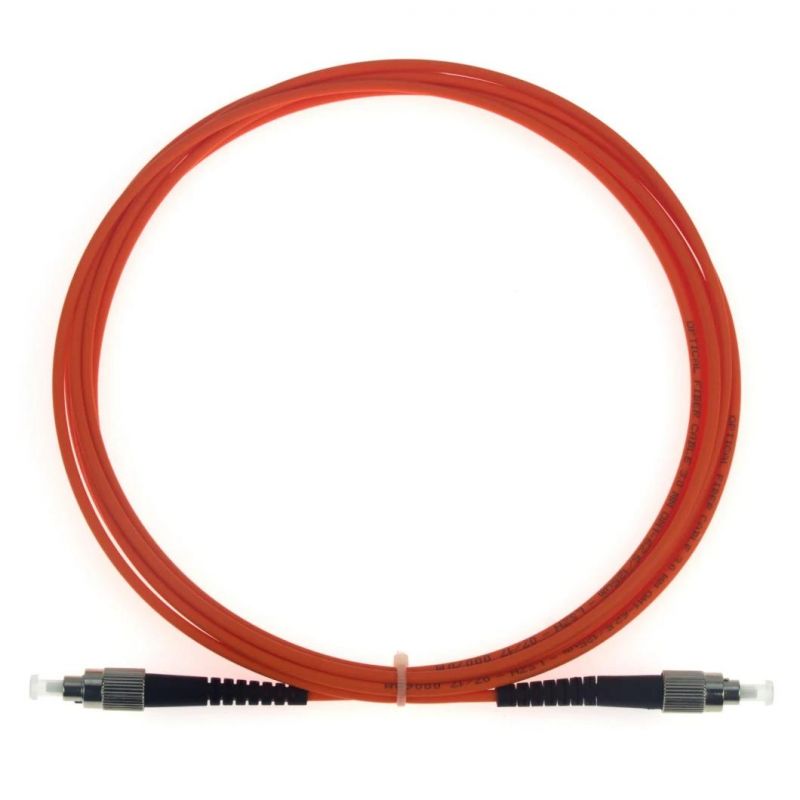

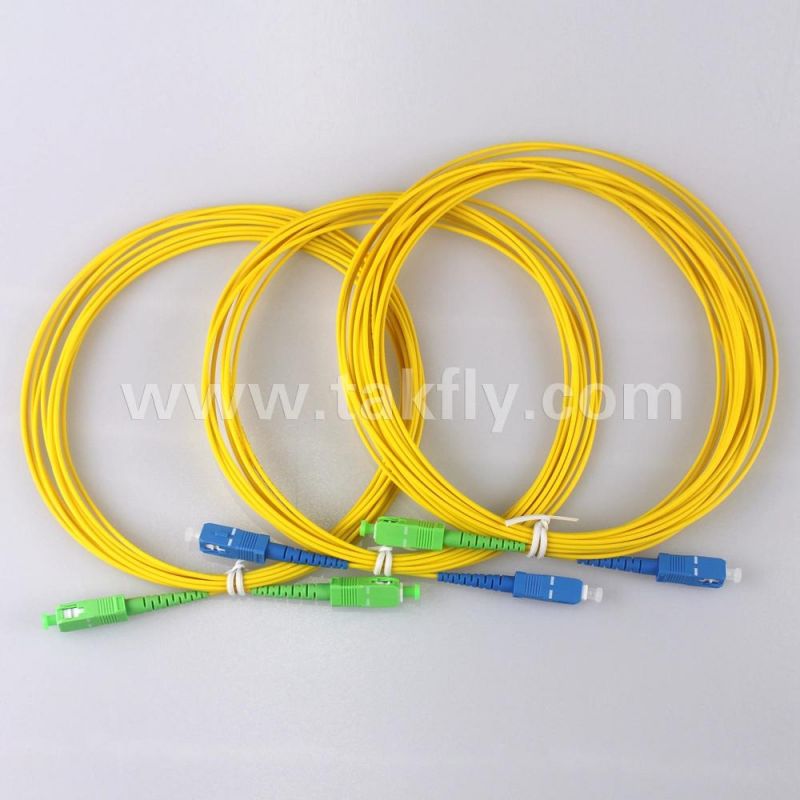

Optic fiber patch cord
Also called jumper cable & optic fiber cable connector,patch cords from equipment to fiber optic cabling links,refers to the connector plugs on both ends of the fiber optic cable,used to realize the optical path active connection,one end with a plug is called a pigtail,generally used for the connection between the optical transceiver and the terminal box.


Features
>> Low insertion loss and High reflection loss
>> Good exchange ability
>> Good durability
>> High temperature stability
>> Standard:Telcordia GR-326-CORE


Applications
>> CATV
>> Telecommunication networks
>> Active device termination
>> Local area networks(LANS)
>> Data processing networks
>> Test equipment
>> Wide area networks(WANS)


Specifications


End Face Type	PC, UPC, APC
Fiber Type	SM (G652D, G655, G657A1, G657A2, G657B3; MM (OM1~OM5)
Cable Diameter	0.9mm, 2.0mm, 3.0mm or customized
Cable Core	Simplex, Duplex
Insertion Loss	≤ 0.3 dB
Return Loss	UPC SM≥50dB, APC SM≥ 60 dB, PC MM≥ 35 dB
Repeatability	≤ 0.1
Durability	≤ 0.2dB
Interchangeability	≤ 0.2dB
Tensile Strength	>70N (with good aramid yarn)
Operating Temperature	-20ºC~70ºC
Storage Temperature	-40ºC~80ºC
Outer Sheath Material	PVC, LSZH, TPU, etc..
Bending Radius (Static/Dynamic)	10D/20D
Length	Customized
