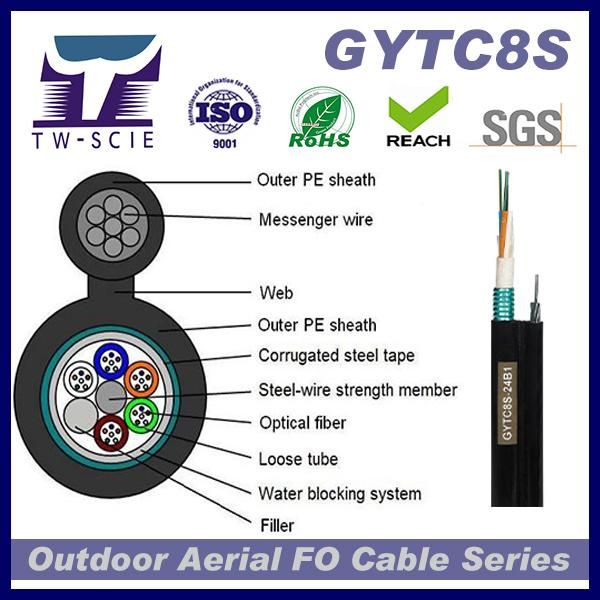

48core Fig8 Self-Support Fiber Optical Cable (GYTC8S)
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Art, Sensor, Medicine, Probe, Fiber Optic Cable
- Type：Single More or Multimode
- Connection Structure：Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYTC8S Self-support Fiber Optical Cable
- Core：Double Core
- Certification：RoHS, ISO9001, Reach
- Sheath Material：LSZH, HDPE, MDPE
- Jacket Material：Black PE
- Messenger Material：Steel Wires
- Installation Style：Aerial Fiber Optic Cable
- Loose Tube Material：PBT with Jelly
- Waterblocking Material：Water Blocking Tape or Filling Compound
- Outer Sheath Material：MDPE , HDPE , LSZH
- Armour Material：Corrugated Steel Tape
- Stranding Member：Steel Wire or FRP
- Fiber Count：2-288 Core

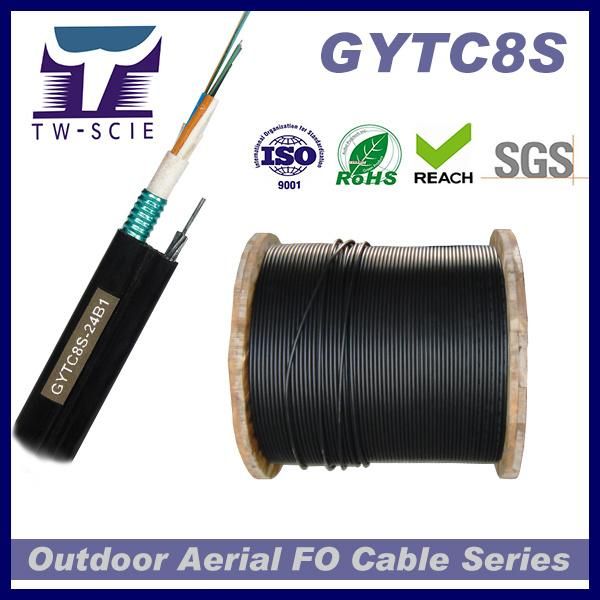

- Transport Package：Wooden Drum
- Specification：GYTC8S
- Trademark：TW-SCIE or OEM
- Origin：Dongguan China
- HS Code：8544700000
- Production Capacity：150km,Day
Description
Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiberCharacteristics Conditions Specified Values Units Optical Characteristics Mode field diameter (MFD) 1310nm
1550nm 9.2±0.4
10.4±0.8 µm
µm Cut-off wavelength (λcc) ≤1260 nm Attenuation coefficient 1310nm
1383nm
1550nm <0.35
<0.35
<0.22 dB/km
dB/km
dB/km Macro bending loss φ75mm, 100circles, at 1550nm ≤0.1 dB Attenuation non-uniformity ≤0.05 dB Dispersion coefficient 1288~1339nm
1271~1360nm
1550nm ≤3.5
≤5.3
≤18 Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km) Zero dispersion wavelength 1300~1324 nm Max zero dispersion slope ≤0.093 Ps/(nm2.km) Group index of refraction (typical value) 1310nm
1550nm 1.466
1.467 Geometric characteristic Cladding diameter 125.0±1.0 µm Core/cladding concentricity error ≤0.8 µm Cladding non-circularity ≤1.0 % Coating diameter 245.0±10 µm Cladding/coating concentricity error ≤12.0 µm Coating non-circularity ≤8 % Diameter of colored coating 250.0±15 µm Mechanical characteristic Curling (radius) ≥4 m Proof stress >0.69 Gpa Coating strip force Average value
Peak value 1.0-5.0
1.3-8.9 N
N Dynamic stress corrosion susceptibility parameter (nd value) ≥20
50/125 MM In cable:
1300nm
