• Model NO.：Signal Fire Ai-7,8
• Transport Package：Cartob Box
• Specification：As in Description
• Trademark：Signal Fire
• Origin：Wuhan, China
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. Signal Fire Ai-7/8 Transport Package Cartob Box Specification As in Description Trademark Signal Fire Origin Wuhan, China Production Capacity 1000 Sets/Month

Product Description

Signal Fire Ai-7 8 Auto Focus Six Motors

Product Description:

- Signal Fire AI-7/8 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects.
- The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50%
compared to ordinary splicing machines.
- Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen
brightness is adjustable and it is convenient for outdoor sunshine environment operation.
- The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology
and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.

Masterpiece High-end Luxury:

- Six motors
- Core alignment
- 6 seconds fast splicing
- 15 seconds fast heating
- Disassembly free three-in-one fiber holder
- 7800mAh large capacity battery
- 300 times magnification auto focus
- Once splicing reaches to 50,000 times free replacement a new machine

Metal Body Aethetic Details:

- Automatic heating
- LED light
- Convenient for night operation
- Battery press & remove
- Protective case
- 5 inch display
- Simultaneously align fibers
- Loss display
- 18 patent results
- Lifetime free warranty

After-sales service:

- Once you buy our Fusion Splicer machine, we offer original packaging new machine, the products meet industry-related quality standards and commitment to enjoy the following services provided by our company:
- Lifetime warranty, lifetime free parts, but these circumstances are not within the scope of this provision.
A, Except for the cleaver, Miller clamp, stripping pliers, fiber holders and other tools whose life depends on the frequency of use and the use of the environment.
B, Electrodes are consumables, it is in termination after the electrodes splicing 3,000 times.
C, Battery warranty for one year, it is in free warranty where it is damaged or can not be charged in one year.
D, Due to natural disasters and other outside force majeure caused by failure or damage.
E, Human factors cause the machine to strong shocks, drops and other factors result in damage.
F, Without our company authorization, unauthorized disassembly, repair situation; at the same time our company reserves the right to further responsibility.
G, The customer bear the out and home shipping cost.

Package List:

- 1 x Signal Fire Ai-7 Intelligent Optical Fiber Cleaver Fusion Splicer

Specifications


Tension Test	Standard 2N
Fiber holders	Multi function holders, Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification	300 for X or Y view, 150 for X or Y view
Screen	5.1 inch TFT color display
Software upgrade	Mobile APP update,Turn on Bluetooth sync to the machine
Splicing Mode	Normal / high precision splicing
Splicing record storage	Synchronize to the phone, the server to cloud storage unlimited
Built-in battery	7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 200 times
Power supply	Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power
Operating Conditions	Temperature -15 ~ +50 ºC, humidity: <95% RH (no condensation),Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s
Built-in lighting	easy for night operation
Applicable Fibers	SM(G.652&G.657), MM(G.651), DS(G.657), NZDS(G.655)
Splice Loss	0.025dB(SM), 0.01dB(MM)0.04dB(DS/NZDS)
Focus mode	Auto focus
Fiber alignment	Core/cladding alignment Manual alignment
Typical splicing time	6S(AI-8) / 8S(AI-7)
Typical heating time	15 S (AI-8) / 18 S (AI-7) Fast heating function, heating time can be set
Control technology	Real-time control and calibration of fusion ARC
Return loss	Better than 60DB
Fiber diameter	Cladding Diameter 80-150μm, Coating Diameter 100-1000μm
Fiber Cleave Length	Coating less than 250µm:8-16mmCoating less m250-1000μm:16mm
Heat shrinkable tube	60mm, 40mm

Related Products


Item No.	Name	Specification	Package	Ref.picture

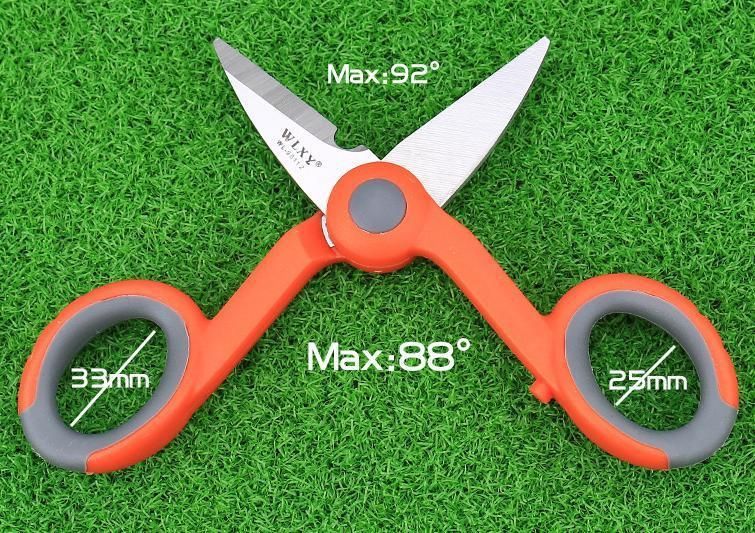

T1001	Kevlar scissors	WL-9011Z	1PCS/BOX

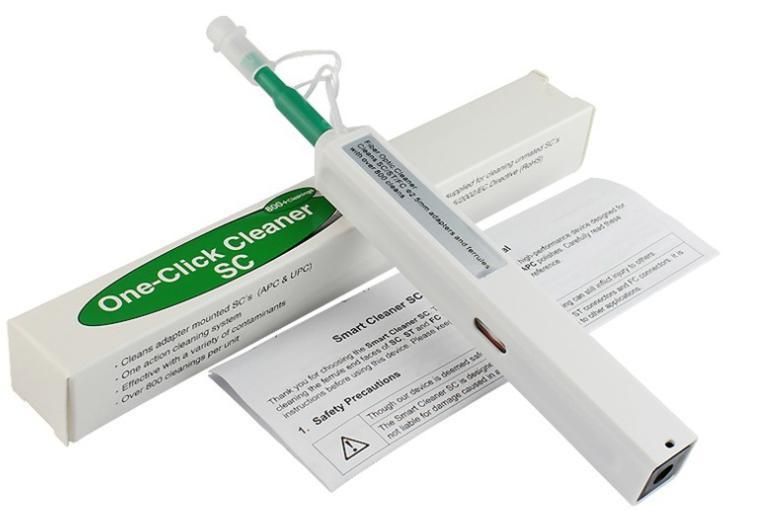

T1008	Fiber optic cleaner	Clean SC/ST/FC Φ2.5mm adapters and ferrules	1 PC/Box

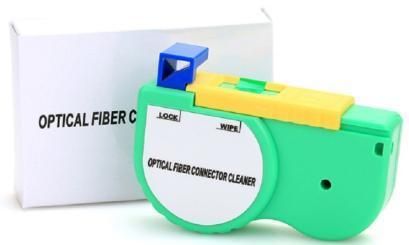

T1009	Fiber optic connector cleaner	Clean FC/SC/ST/E2000,LC/MU,MT etc.	2 PC/Box

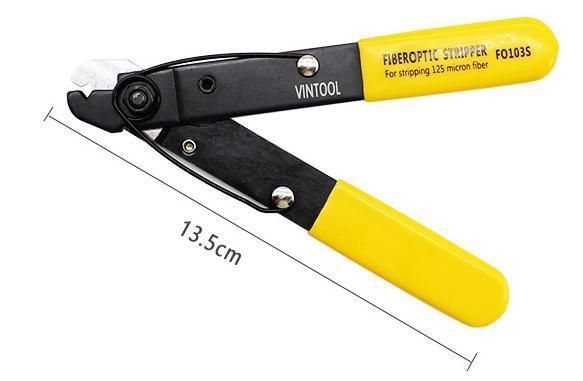

T1010	Fiber Optic Stripper	For 125μm Fiber	1 PC/box

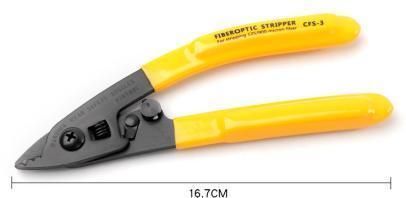

T1011	Fiber Optic Stripper	For 125/900μm Fiber	1 PC/box
T1012	Fiber Optic Stripper	For 3.0×2.0mm Fiber Cable	1 PC/box

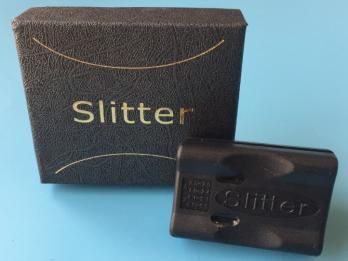

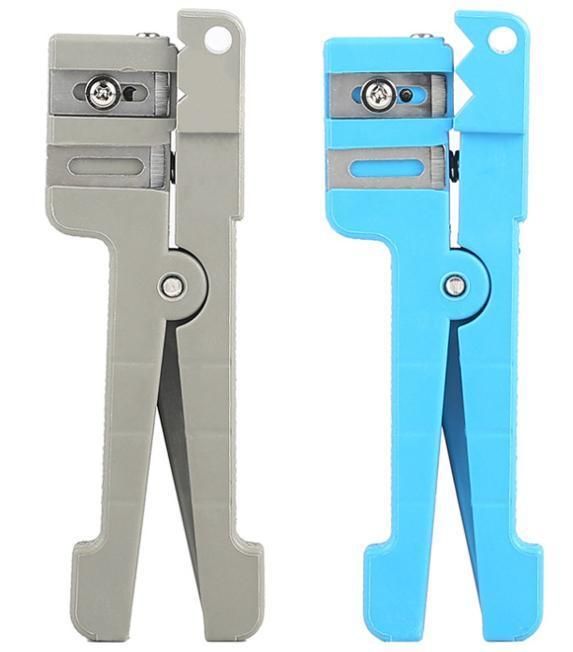

T1014	Fiber optic slitter (Longitudinal type)	For stripping fiber optice tubes of 1.5~1.9 mm,2.0~2.4mm,2.5~2.9mm,3.0~3.3mm	1 PC/box
T1015	Fiber optic slitter (Transverse  type)	For stripping fiber 3.2mm-5.6mm	1 PC/box

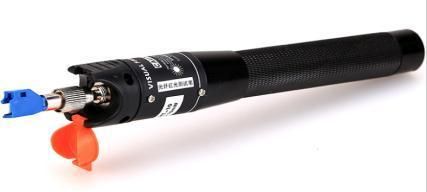

T1017	Visual Fault Locator	20kM
T1021	Optical Fiber Identifier	80nm-1700nm	1PC/Box

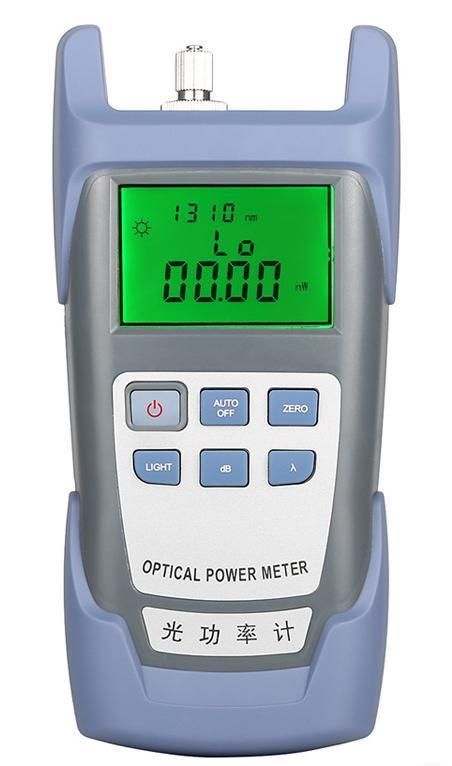

T1022	Optical Power Meter	850/980/1300/1310/1490/1550/1625nm	1PC/Box
T1023	400 Times Optical Fiber Magnifier	To check SC-FC-ST	1PC/Box
