2Paris 4cores Twisted Cat3 Telephone Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Type：Cat 3
  • Material Shape：Round Wire
  • Conductor Type：Solid
  • Wire Core Material：Bare Copper Wire

Base Info

  • Model NO.：CAT3
  • Certification：CE, ISO, RoHS, ETL SGS CPR
  • Brand：Risun or OEM
  • Insulation：HDPE
  • Jacket：PE,PVC,Lszh
  • Ripcord：500d,1000d
  • UV, Jelly, Fr：Available
  • Transport Package：100m,200m,300m,Roll
  • Specification：ETL, CE, ROHS, ISO9001
  • Trademark：RISUN or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²



Electrical Properties:



Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%



Technical Performance:



 AttenuationRLNextPS Next(Mhz)(dB/100M)(dB)(dB)(dB/100m)1MHz2.02065.363.54MHz4.12356.354.28MHz5.824.552.450.510MHz6.62551.349.216MHz8.22549.347.420MHz9.32548.846.925MHz10.42445.343.431.25MHz11.72343.041.862.5MHz17.02139.237.2100MHz22.02036.334.4

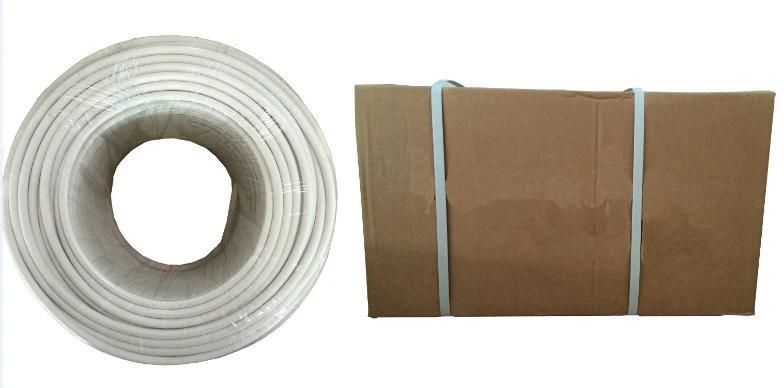

Packing:
2Paris 4cores Twisted Cat3 Telephone Cable

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.



Production line:


2Paris 4cores Twisted Cat3 Telephone Cable

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.
