• Model NO.：LT-R
• Rod Material：ABS+Fiberglass
• Frame：Metal
• Options：Copper Tracer Wire
• Sample：Available

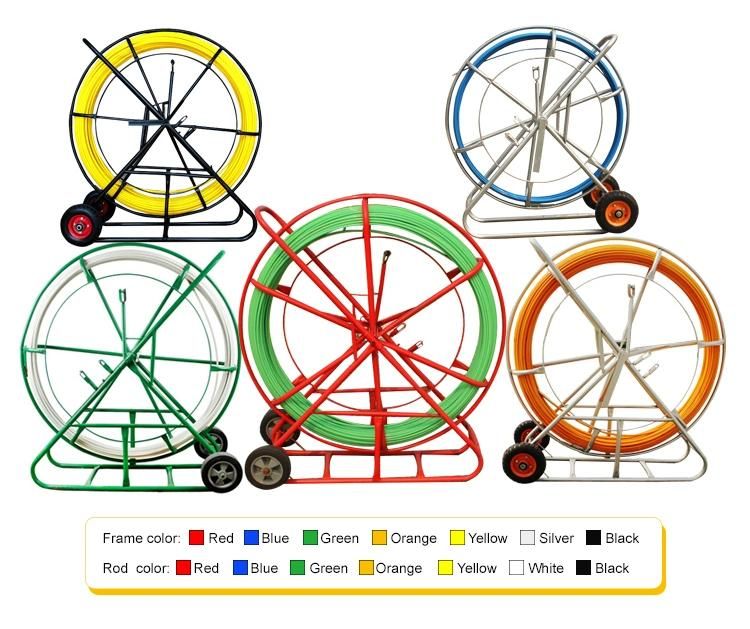

• Color：Yellow, Orange, etc
• Accessory：Brake, Rubber Wheel, Meter Mark, Roller Guide
• Rod Length：50-500m
• Transport Package：Carton Box
• Specification：dia4.5mm, 6mm, 8mm, 10mm, -16mm
• Trademark：LT
• Origin：China
• HS Code：3926909090
• Production Capacity：200PCS,Week

Glass fiber rod diameterΦ4.5mm-18mmLength10-500mWorking temperature-40+80degreeMin Bend Radius295mmBreaking tension4.5TGlassfiber density150g/m

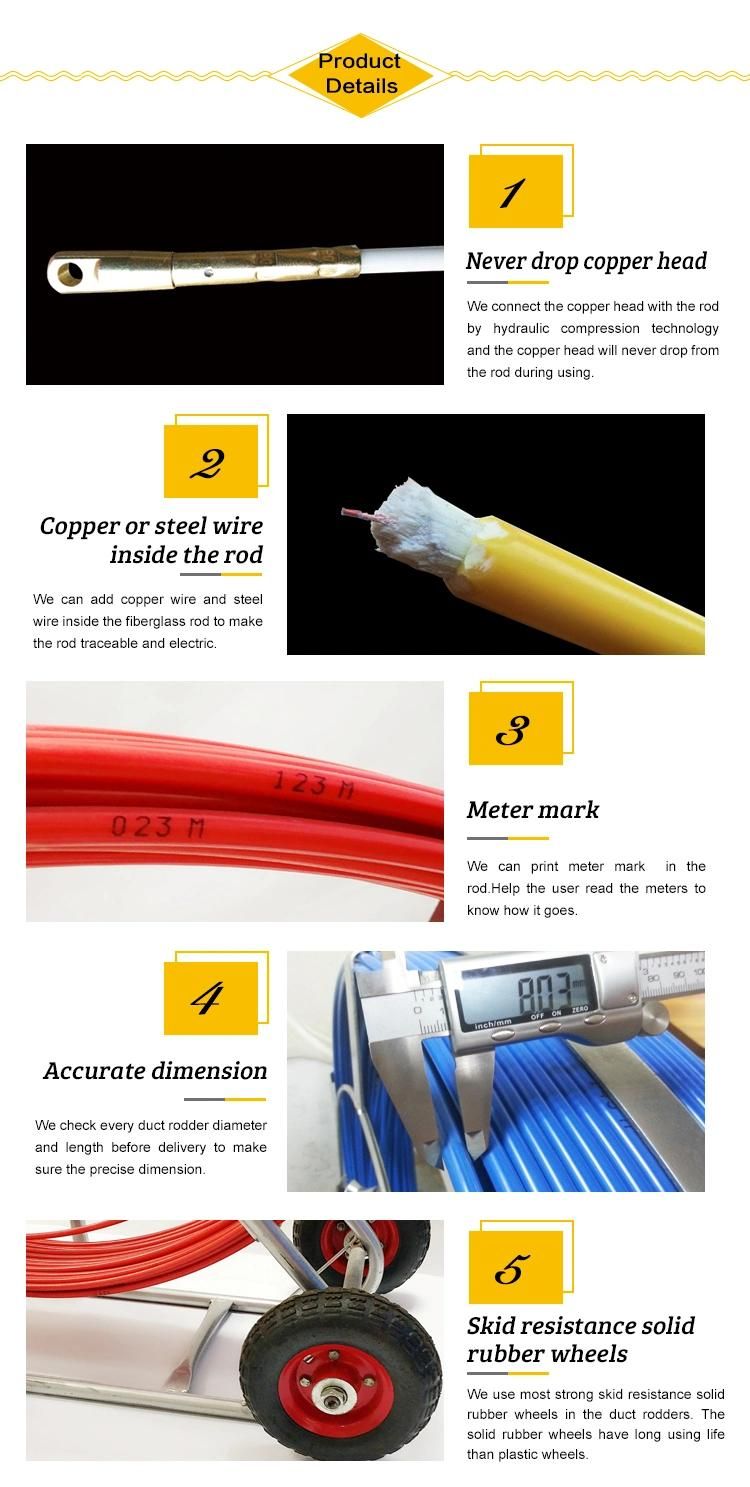

1.constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
2.Excellent flexibility force.
3.Tensile strength about 500 Kgf.
4.designed for heavy duty applications ensuring greater rigidity and strength, while supporting additional forces without resentment to the multiple curvatures.
5.Wheel assembly for easy transportation.
6.Guide rollers and the right parts for rotary coupling.
7.Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod.


1. Glass reinforced composite core:
    general propertiesPropertyvaluekeinforcementE-glass fiberglass content of inner part75-80%material of pulling rodepoxy fiber glass(inner) high density polyethylene(outer)density>1.9gr/cm3diameter tolerance+/-0.1mmwork situation temperature-40°C to +80°C
Mechanical prperties
 propertyvalueminimum pullling strength4000 N+/-5%tensile modulus>30000Mpaconsistency of rod150gr/m +/-5%flexural modulus>30000M paelongation at break2.5-3%
2. Polyethylene cover material:
   Medium density polyethylene resin for the insulating and jacketing of telecommunications cables.propertyvaluetensile strength>15N/mm2environmental stress & crack resistance>1000 hr.heat stabilityOK.carbon blackOK.
