Double Jacket All Dielectric Self-Support Cable ADSS
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Self-Support Optic Fiber Cable
- Type：Single-Mode or Multimode Fiber
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：>10000N
- Core：Multicore
Base Info
- Model NO.：ADSS Double Jacket
- Certification：RoHS, CE, ISO9001, Reach, Tlc, SGS, Anatel, ISO14000
- Brand：Tw-Scie or OEM
- Sheath Material：at,PE
- Fiber Count：2-48 Core
- Brand Name of Fiber：Corning, Yofc, ...as Your Requiremen
- Loose Tube Material& Filling Material：PBT&Jerry
- Span：100-1000m
- Color of Loose Tube：Orange, Green, Brown, Red etc
- Central Strength Member：Non-Metallic
- Strength Material：High Flexible Amaid Yarn
- Core Moisture Protection Methodology：Water Blocking Tape or Filling Compound
- Installation Style：Self-Support Aerial

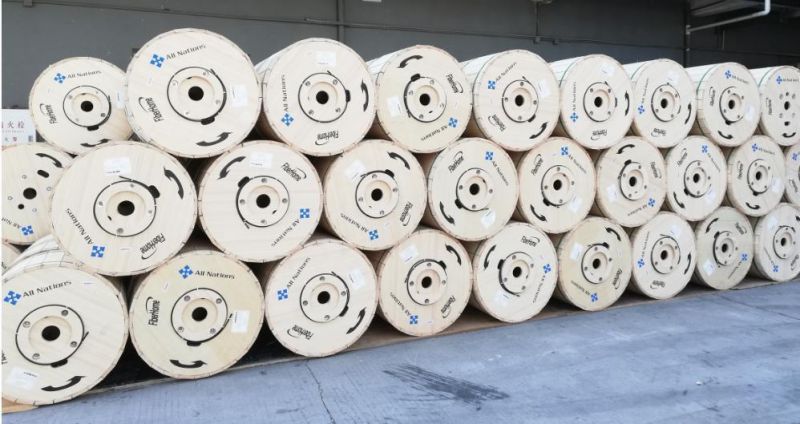

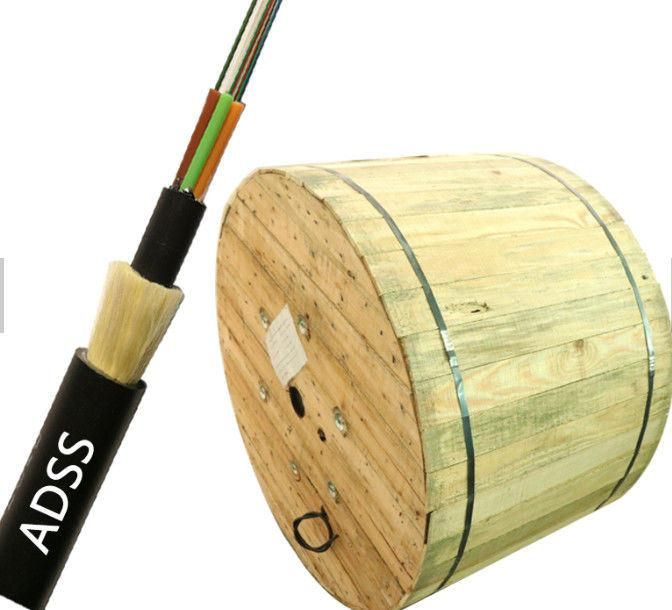

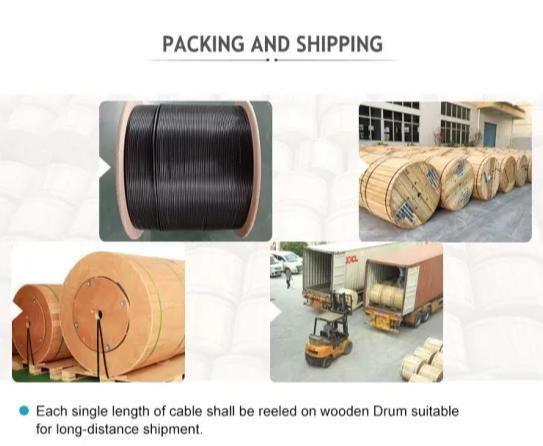

- Transport Package：Wooden Drum
- Specification：Customized
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, Guangdong, China (Mainland)
- HS Code：8544700000
- Production Capacity：200km,Day
Description
Curl(radius)um ≥4 ≥4 ≥4
Features

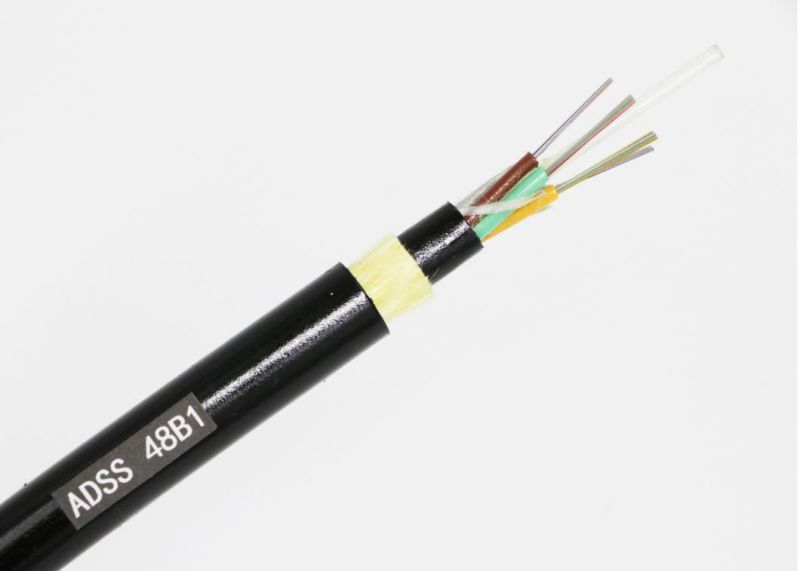

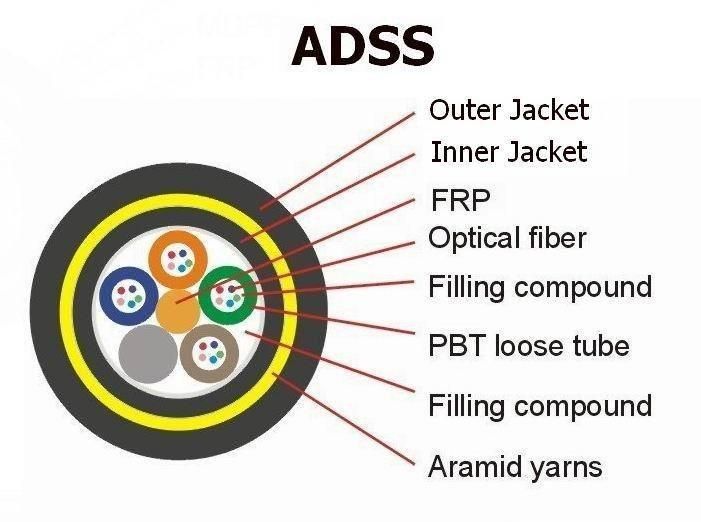

Product structure

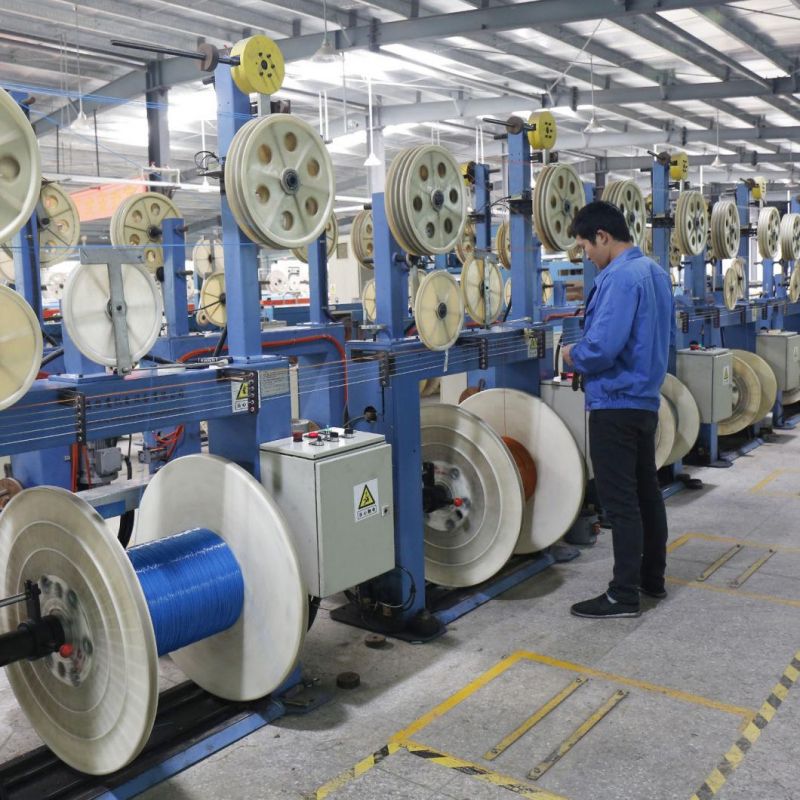

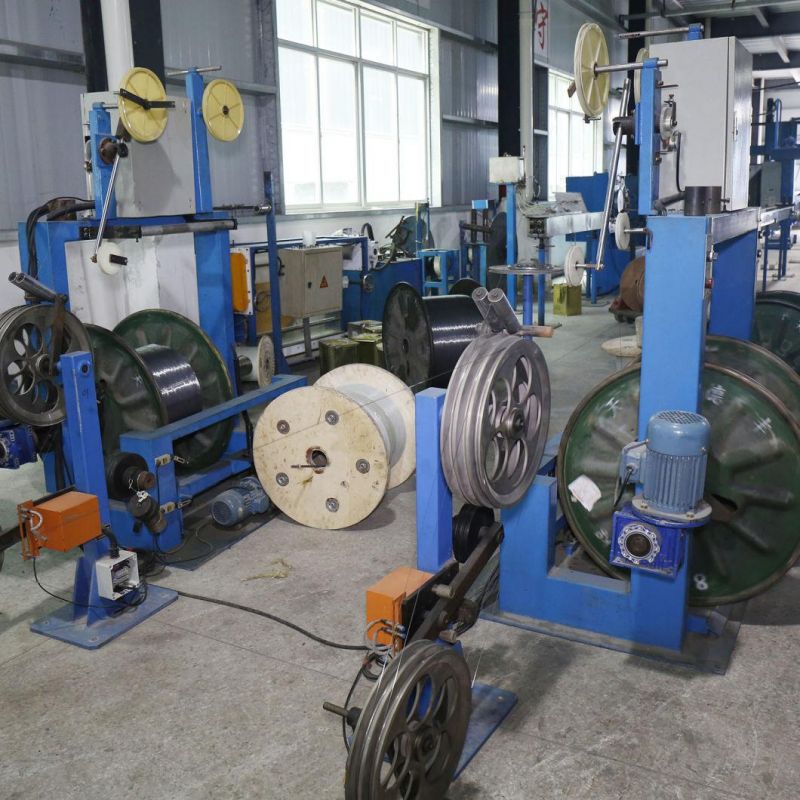

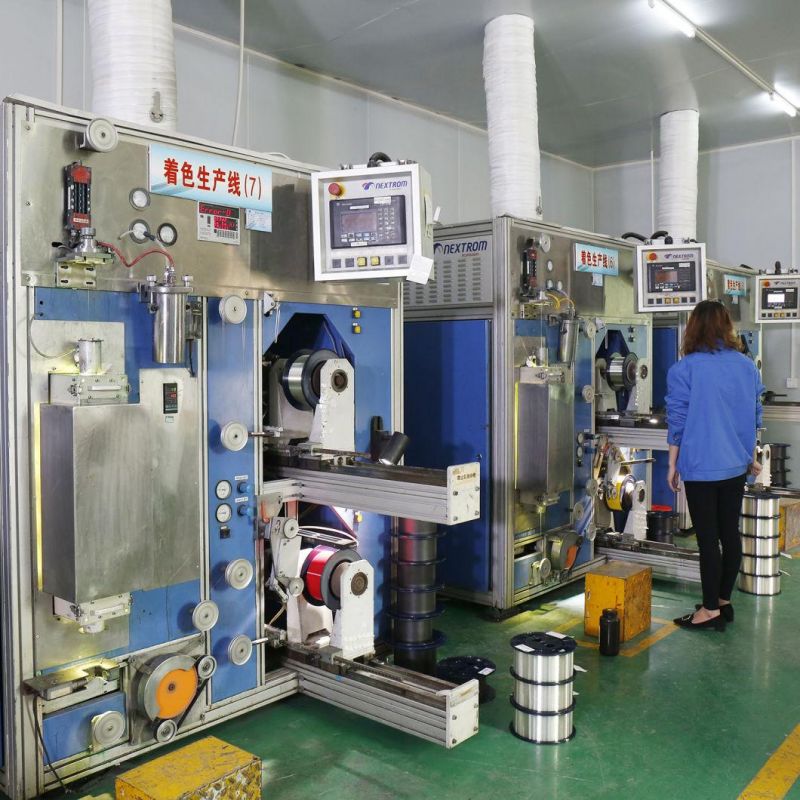

Production Line
Product qualification
We have obtained 5 invention patents and 58 utility model patents. The products conform to the China National Standard strictly and have obtained certificates of Anatel, CE, RoHs, Reach, ISO9001, ISO14004 and OHSAS1801 and so on.
Our service
We cooperate with the friends both domestic and overseas.
Tag: All dielectric cable, Fiber Cable, Aerial Cable.
Features
- Suitable for use on distribution and high voltage transmission lines
- Requires no messenger wire -- fully self-supporting
- Single pass installation -- no messenger, no lashing wire -- faster and lower cost
- Cable is water-blocked using dry core technology, therefore no messy flooding compounds

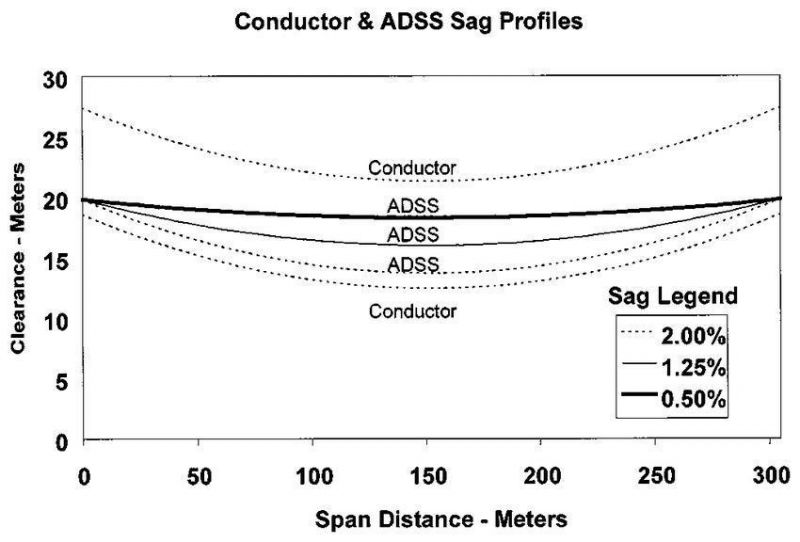

- Design details for span lengths up to 1500ft (457m) and fiber counts up to 432
- The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
- For overhead power lines 10kv and 35kv, PE outer sheath is applied.
- For power lines 110kV and 220KV, AT outer sheath is applied.
- The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Product structure
Production Line
Product qualification
We have obtained 5 invention patents and 58 utility model patents. The products conform to the China National Standard strictly and have obtained certificates of Anatel, CE, RoHs, Reach, ISO9001, ISO14004 and OHSAS1801 and so on.
Our service
We cooperate with the friends both domestic and overseas.
- China Mobile, China Telecom, China Unicom, Sinopec, State Grid
- Europe, Africa, Middle East, South America, Southwest of Asia
Tag: All dielectric cable, Fiber Cable, Aerial Cable.
