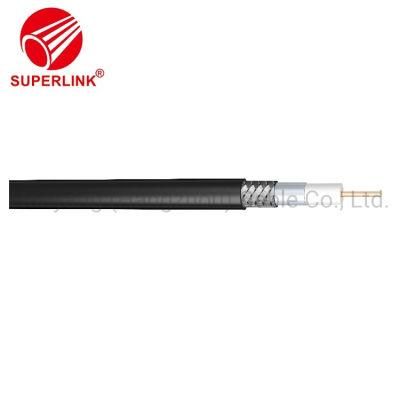

• Model NO.：television wire
• Type：Rg59+Power Cable
• Material Shape：Round Wire
• Conductor Type：Stranded
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：HYA
• Brand：OEM
• Cable Conductor：1.02mm
• RG6：Local Communication Cable, Coaxial Cable, LAN Cab
• Transport Package：Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
• Specification：18AWG
• Trademark：FUU
• Origin：Made in China
• HS Code：8544200000
• Production Capacity：3000km,Month
• Package size per unit product：12.00cm * 15.00cm * 1.00cm
• Gross weight per unit product：0.500kg

CostructionDiameter MaterialCenter conductor1.02mmCCSDielectric4.57mmFoam PE1st Shield18mm widthAl foil. bonded1st Braiding64*0.16mm  60%  coverageAL2nd Shield Optional 2nd Braiding Optional Jelly Optional Jacket6.91mmPVCMessenger  Optional



Electrical Characteristics

1) Characteristics Impedance:                          75+/- 3 Ohms 2) Capacitance Conductor to Shield:               53.1 pF/m 3) Velocity of Propagation :                                 82% 4) Delay:                                                                 4.065 ns/m 5) Min.Structural Return Loss (5-3000MHz) :  20 dB 6) Max. Attenuation :   @ Frequency (MHz)dB/100 ft (MAX.)dB/100 meters(MAX)5 MHz0.58 dB1.90 dB55 MHz1.60 dB5.25 dB211 MHz1.95 dB10.00 dB250 MHz2.85 dB10.82 dB270 MHz3.05 dB11.04 dB300 MHz3.30 dB11.64 dB330 MHz3.55 dB12.26 dB350 MHz3.85 dB12.63 dB400 MHz4.15 dB13.61 dB450 MHz4.40 dB14.43 dB500 MHz4.66 dB15.29 dB550 MHz4.90 dB16.08 dB600 MHz5.10 dB16.73 dB750 MHz5.65 dB18.54 dB870 MHz6.10 dB20.04 dB1000 MHz6.55 dB21.46 dB1300 MHz7.46 dB24.49 dB1450 MHz7.89 dB25.89 dB1750 MHz8.74 dB28.67 dB2150 MHz9.69 dB31.79 dB2600 MHz10.76 dB35.30 dB2832 MHz11.55 dB37.74 dB3000 MHz11.84 dB38.84 dB

Application

1. Cable coaxial for  CATV,CCTV systems 2. Plus  F  as connection cable3. For satellite systems
