1.5c-2V 2.5c-2V 3c-2V 5c-2V Coaxial Cable for Auto Antenna
Jiangsu Elesun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC,PE,TPU,LSZH
- Type：75 Ohm RF Coaxial Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：3c-2v
- Wire Core Material：Bare Copper Wire

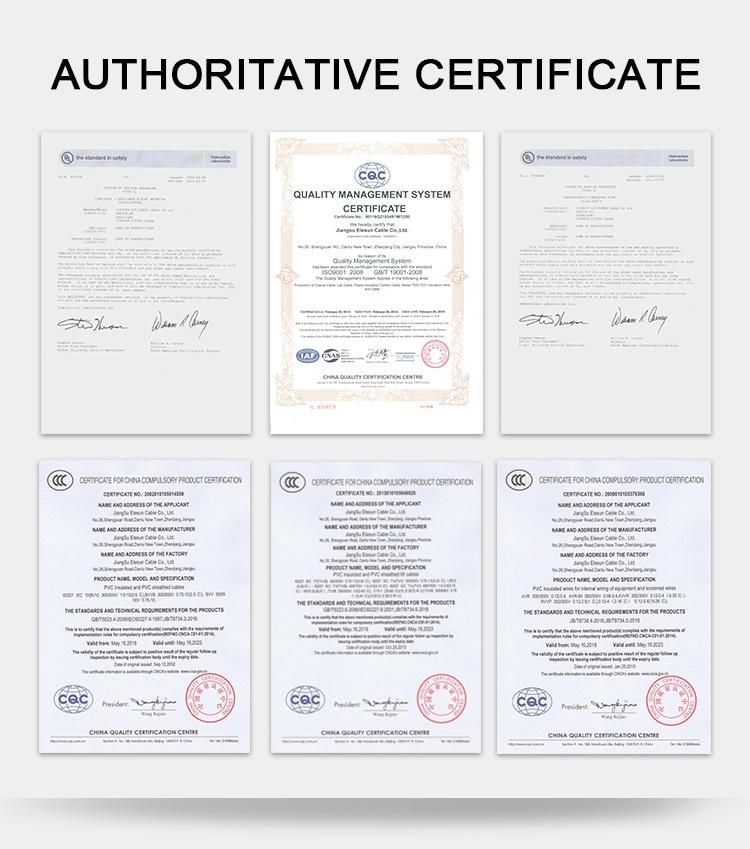

- Certification：CE, ISO, RoHS, CCC, UL
- Model：3c-2V
- Brand：Elesun
- Inner Coductor：Single Core
- Shield：90% Coverage
- Jacket Color：Customized
- MOQ：1000m
- Print Text：Customized

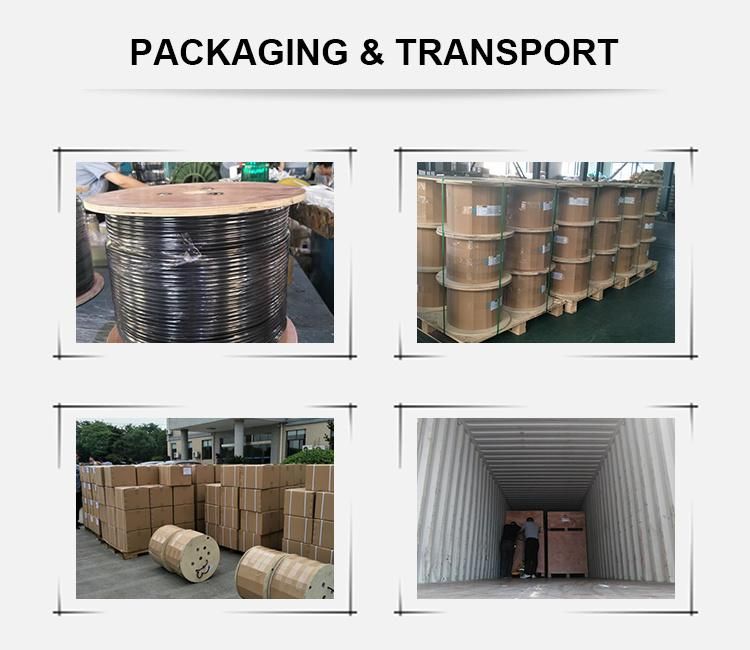

- Transport Package：Box ,Wooden Reel
- Specification：1000m,reel 500m,reel
- Trademark：Elesun
- Origin：Jiangsu Pr
- HS Code：8544200000
- Production Capacity：1000km,Month
Description

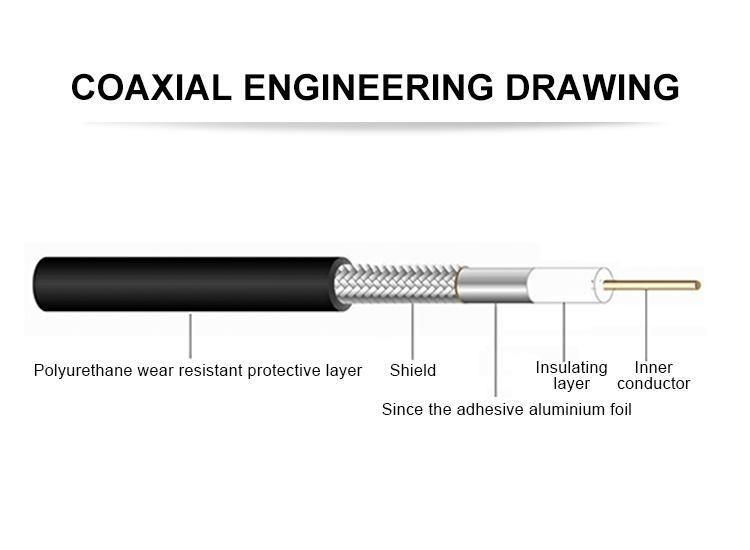

3c-2v coaxial cable specifications
Material of Inner Conductor
Bare Copper / Tinned copper
Structure of Inner Conductor
1/0.5 mm
Material of Insulation
Solid PE
Diameter of Insulation
3.0 mm
Material of Braiding(Shielding)
CCA, Bare Copper, Tinned Copper
Structure of Braiding(Shielding)
112*0.12 mm
Material of Jacket
PVC
Diameter of Jacket
5.0mm
Working temp
-40ºC/80ºC
Impedance
75Ω±2
Voltage
4000V
Weight
40KG/KM
1.5c-2V 2.5c-2V 3c-2V 5c-2V Coaxial Cable can be connected F connector
F male connector Electrical characteristic
Characteristic Impedance 75 ohm
Frequency Range DC-3GHz
VSWR ≤ 1.10(2.7G)
Insertion loss ≤ 0.15dB
PIM ≤ -155dBc
Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance Center Contact ≤1.0 mΩ
Outer Contact ≤1.0 m
