Price Per Meter Thwn Thw House PVC Copper Electrical Cable Electric Wiring Wire
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Solid or Stranded
- Application：Overhead, Heating, Underground, House and Building
- Conductor Material：Copper or Aluminium or Aluminium Alloy
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：Wire Cable
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Rmjt
- Product Name：Thwn Thw PVC Electrical House Wire
- Voltage：300,300V 300,500V 450,750V
- Insulation Color：Red, Black, Yellow, Blue, Green, Grey and So on
- Standard：IEC, UL, BS, VDE, AS,NZS or According to You.
- Conductor Class：Calss 1, Class2, Class 5, Class6
- Transport Package：100m,Roll or Bag
- Specification：1.5mm2-800mm2
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：5000000000000000000km,Month
Description
Nominal sectional area mm2Conductor No/Dia. Mm Nominal Insulated thick mm Max overall Dia. Mm Condcutor Resistance at 20 Min insulated resistance at 70MΩ/km Weight
Kg/km Cu Al Cu Al 1.5 1/1.38 0.7 3.3 12.1 - 0.011 19.2 - 1.5 7/0.52 0.7 3.5 12.1 - 0.01 20.6 - 2.5 1/1.78 0.8 3.9 7.41 11.8 0.01 30.8 15 4 1/2.25 0.8 4.4 4.61 7.39 0.0085 45.5 21 6 1/2.76 0.8 4.9 3.08 4.91 0.007 65 29 10 7/1.35 1 7 1.83 3.08 0.0065 110 52 16 7/1.70 1 8 1.15 1.91 0.005 170 70 25 7/2.14 1.2 10 0.727 1.2 0.005 270 110 35 7/2.52 1.2 11.5 0.524 0.868 0.004 364 150 50 19/1.78 1.4 13 0.387 0.641 0.0045 500 200 70 19/2.14 1.4 15 0.268 0.443 0.0035 688 269 95 19/2.52 1.6 17.5 0.193 0.32 0.0035 953 360 120 37/2.03 1.6 19 0.153 0.253 0.0032 1168 449 150 37/2.25 1.8 21 0.124 0.206 0.0032 1466 551 185 37/2.52 2 32.5 0.099 0.164 0.0032 1808 668
Notice
In addition, we have other models and sizes, please contact us if you need, thank you.
Packaging and Shipping
Our Company

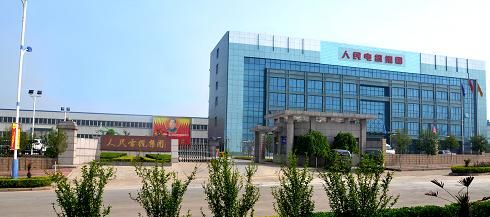

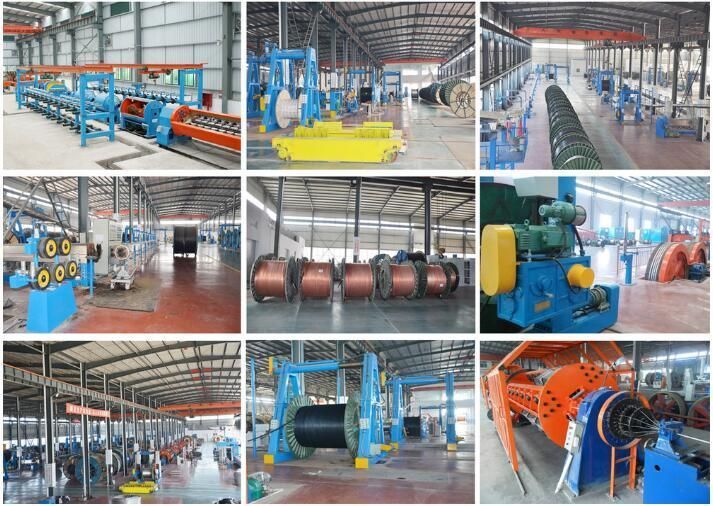

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad
aluminum),CCS(copper clad steel).
2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.
3.Rubber cable like welding cable, mining cable, control cable and so on.
4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.
5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.
