High Quality Steel Flange Process Bobbin, Bobbin for Cable Wire / Steel Wire, Metal Cable Wire Reels~
Alpha Technical Industrial Co., Ltd.- Type:Customized
- Certification:CE, RoHS, CCC, ISO
- Customized:Customized
- Condition:New
- for Cable:Steel Roper, Copper, Aluminium and Welding Wires
- Dimension:Customized
Base Info
- Model NO.:Alpha
- Strandard:GB4004-83, Jb,T8997.4-1999, DIN46395
- Material:Cable, Steel Wire, Steel Rope, Copper, Aluminium,
- Application:Process, One-Way or Shipping Bobbin
- Lead Time:20 Days
- MOQ:50 PCS
- Sample:Available
- Certificate:ISO9001′2000
- Color:Customized
- Transport Package:Standard Seaworthy Package
- Specification:According to customer′s
- Trademark:Alpha
- Origin:China
- HS Code:7326901900
- Production Capacity:10000 Piece,Pieces Per Month
Description
Basic Info.
Model NO. Alpha Strandard GB4004-83, Jb/T8997.4-1999, DIN46395 Material Cable, Steel Wire, Steel Rope, Copper, Aluminium, Application Process, One-Way or Shipping Bobbin Lead Time 20 Days MOQ 50 PCS Sample Available Certificate ISO9001′2000 Color Customized Transport Package Standard Seaworthy Package Specification According to customer′s Trademark Alpha Origin China HS Code 7326901900 Production Capacity 10000 Piece/Pieces Per MonthProduct Description

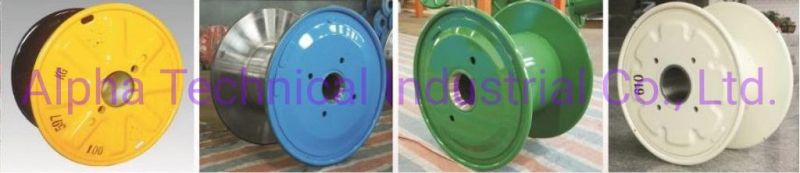

High Quality Steel Flange Process Bobbin, Bobbin for Cable Wire / Steel Wire, Metal Cable Wire Reels~Double layer high speed bobbin:
Pressed steel flanges.Dimension either according to customer's specification or GB4004-83,JB/T8997.4-1999,DIN46395/DIN46397 stanard.
Dynamically balanced for speed from 25m/s to 50m/s
For cable/ferrous and non-ferrous wire.

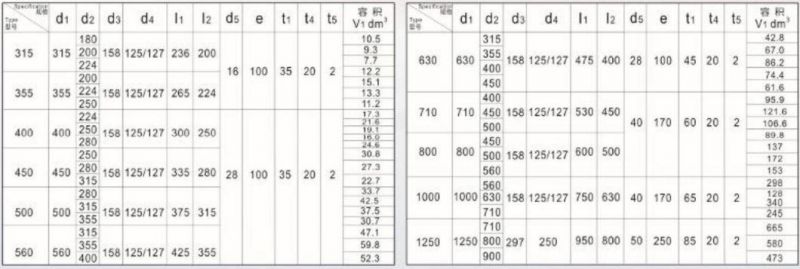

For drawing/stranding and bunching machinesSpecification

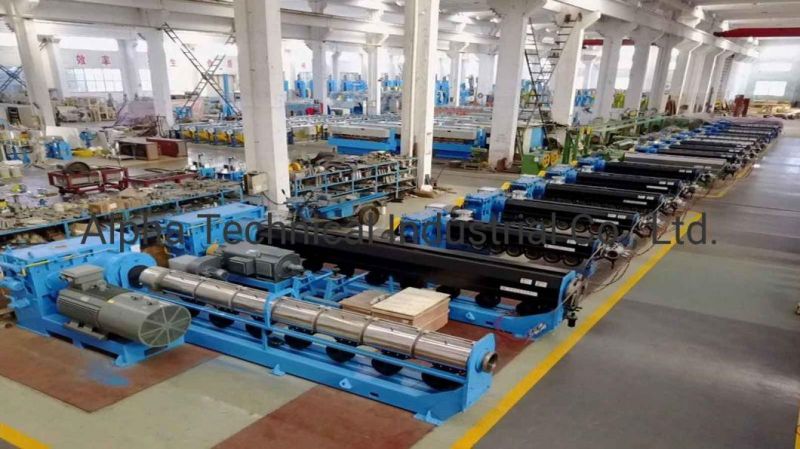

Factory show
Alpha Technical Industrial Co., Ltd is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt puller, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.
Our team

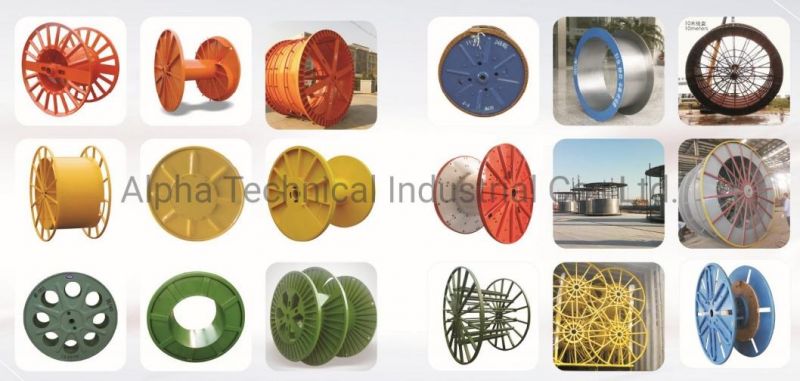

Relevant machinery

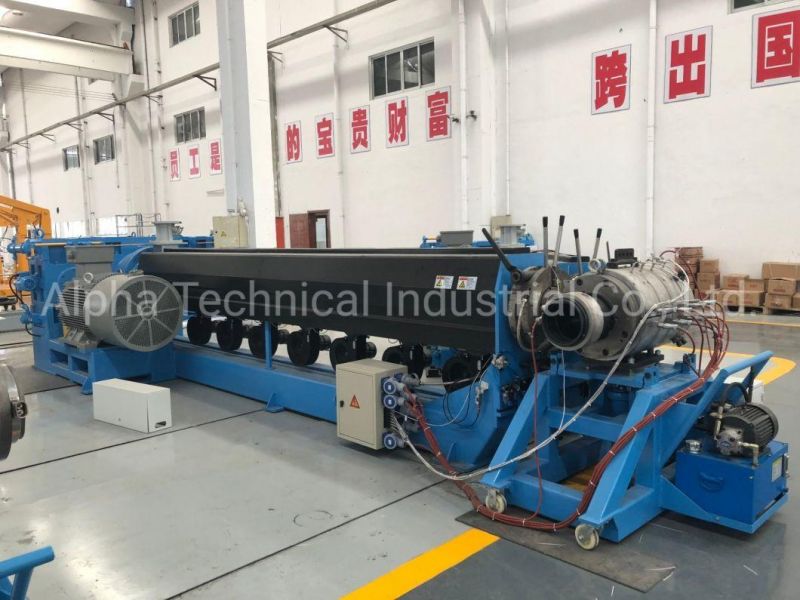

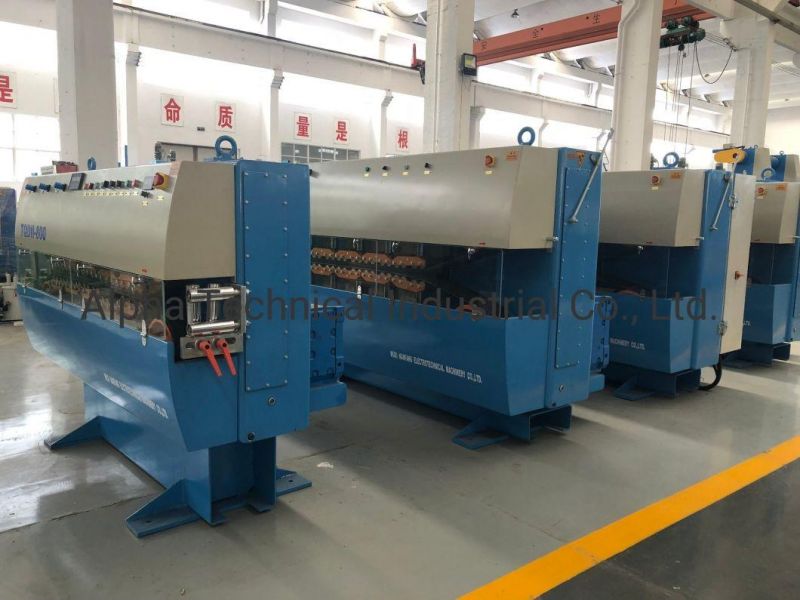

- Cable extrusion machine
A.Description
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter
Type & Size | Screw Dia. (mm) | L/D ratio | Screw speed (rpm) | Main motor (kw) | Barrel heating power (kw) | Temp. contr. zones (body/cross head) | Max. output capacity (PVC) (kg/h) |
SJ30X25 | 20 | 25:1 | 5-150 | 11 | 3.6 | 3/2 | 20 |
SJ45X25 | 45 | 25:1 | 10-120 | 15 | 9 | 3/2 | 50 |
SJ65X25 | 65 | 25:1 | 10-100 | 30 | 16 | 4/4 | 120 |
SJ90X25 | 90 | 25:1 | 10-100 | 90 | 30 | 4/4 | 280 |
SJ120X25 | 120 | 25:1 | 7-68 | 132 | 54 | 6/4 | 580 |
SJ150X25 | 150 | 25:1 | 6-60 | 185 | 88 | 6/4 | 880 |
SJ200X25 | 200 | 25:1 | 4-40 | 250 | 140 | 7/4 | 1100 |

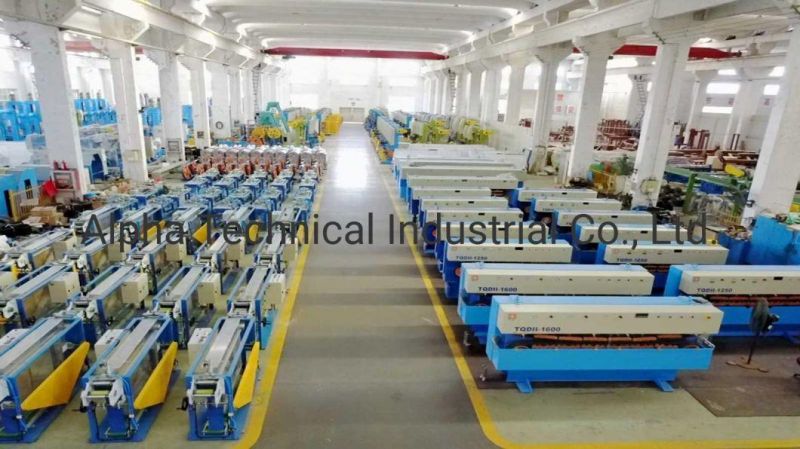

-Cable puller
Mainly used for various cable production lines for single machine or front and rear double traction.

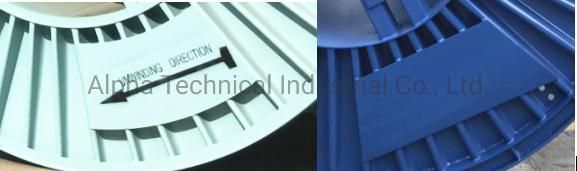

Machine details

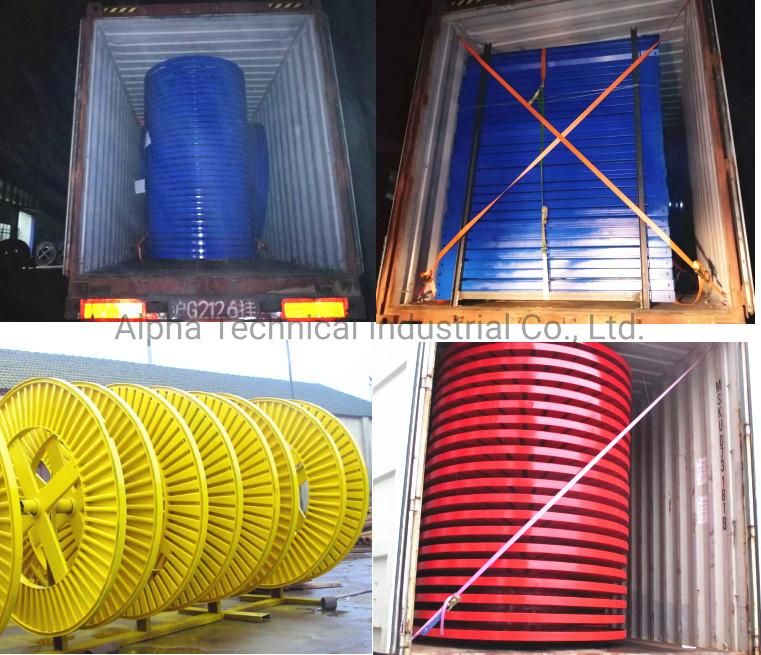

Package And Delivery

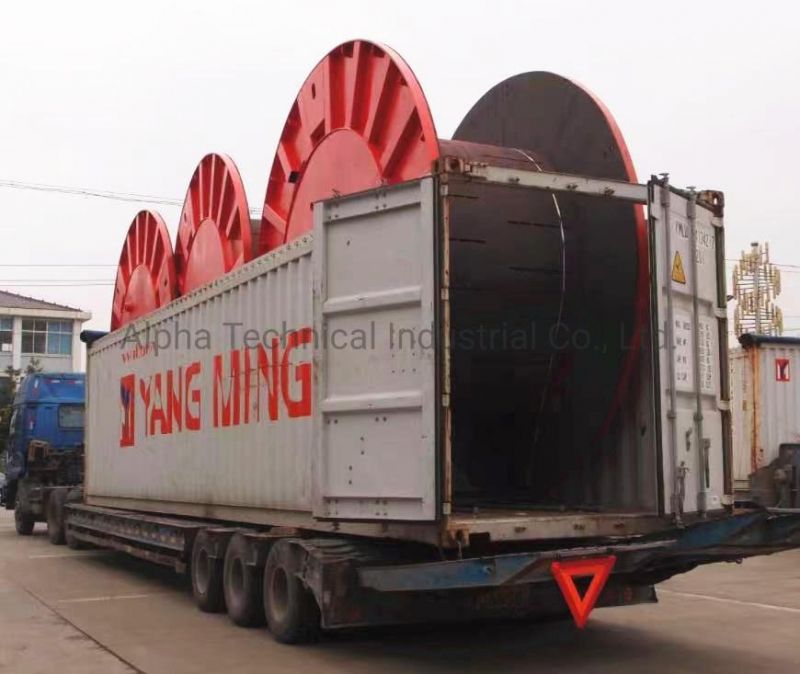

100 containers steel reel/bobbin exported to AustraliaWe are professional bobbin manufacturer with more than 25 years experience.Our company has a technical administration team whom engages bobbin/reel industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement win the trust from our domestic and overseas customers, the products are exported to United States, France,Spain,Portugal, New Zealand,Brazil, Mexico, Chile,South Africa, Zambia, Egypt, South Korea,Singapore, Indonesia,Thailand, Iran, etc.
Split Type Disposable(single-use) Steel Reel/Bobbin Ready For Delivery

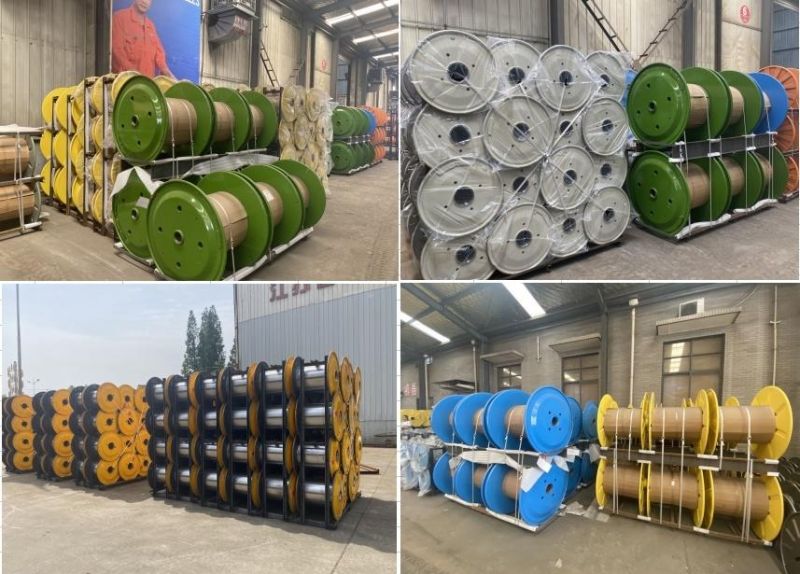

Steel Reel/Bobbin Ready For Delivery At Warehouse
Design Name Plate For Customers(OEM)
FAQ
Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.
− Q: What is your company's main production?
A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Bobbin/Reels,Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
RFQ1.Bobbin/Reel Technical drawing like below picture
2.Quantity you need to purchase
