• Model NO.：UEW,155

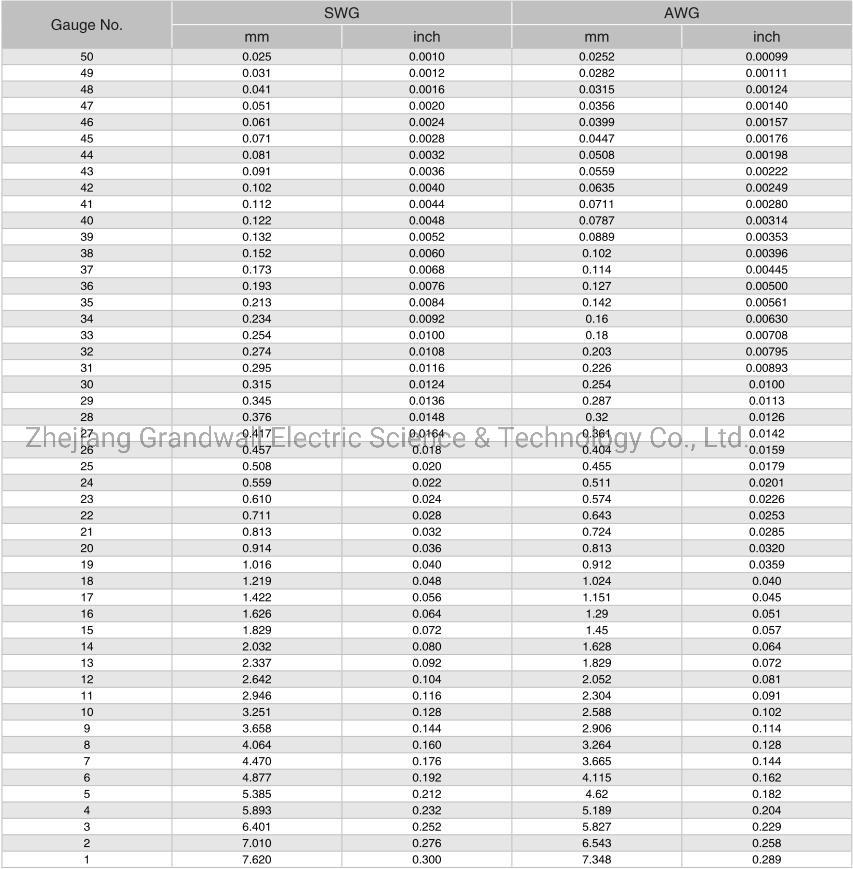

• Diameter：0.06-4.5
• UL No.：E206121
• Standard：IEC;JIS C;NEMA;GB
• Transport Packing：Wooden Box;Pallet
• H S Code：8544110000
• Thermal：155
• Conductor Type：Solid
• Enamelled Types：Enamelled Types
• Product Name：Uew,155
• Transport Package：Cartons, Wooden Box
• Specification：IEC60317-20 JIS C3202 MW79-C
• Trademark：n,n
• Origin：China
• HS Code：854411
• Production Capacity：50000 Tons

Basic Info.

Model NO. UEW/155 Diameter 0.06-4.5 UL No. E206121 Standard IEC;JIS C;NEMA;GB Transport Packing Wooden Box;Pallet H S Code 8544110000 Thermal 155 Conductor Type Solid Enamelled Types Enamelled Types Product Name Uew/155 Transport Package Cartons, Wooden Box Specification IEC60317-20 JIS C3202 MW79-C Trademark n/n Origin China HS Code 854411 Production Capacity 50000 Tons

Product Description

 UEW's insulation layer-polyurethane resin is composed of Polyisocyanate & Polyol. It has good direct solderability at 360 ºC ~ 400 ºC and is widely used in coils and motor windings.

Characteristic :
Excellent solderability. High heat resistance
(1) It has good straight solderability. During the winding process, it can avoid the action of peeling the film, effectively improving the work efficiency.
(2) At high frequencies, it has good ""Q"" value characteristics.
(3) Has good adhesion and winding properties.
(4) It has good solvent resistance to the solvents and hardeners commonly used for impregnating vanilla water, and dyes can be added to facilitate identification.

Typical Applications:
Apply to relays, micro-motors, transformers, instrumentation and various kinds of electronic components and with for coils. High frequency coil and transformer, relay, magnetizing coil, screw coil, micro motor, ignition coil
