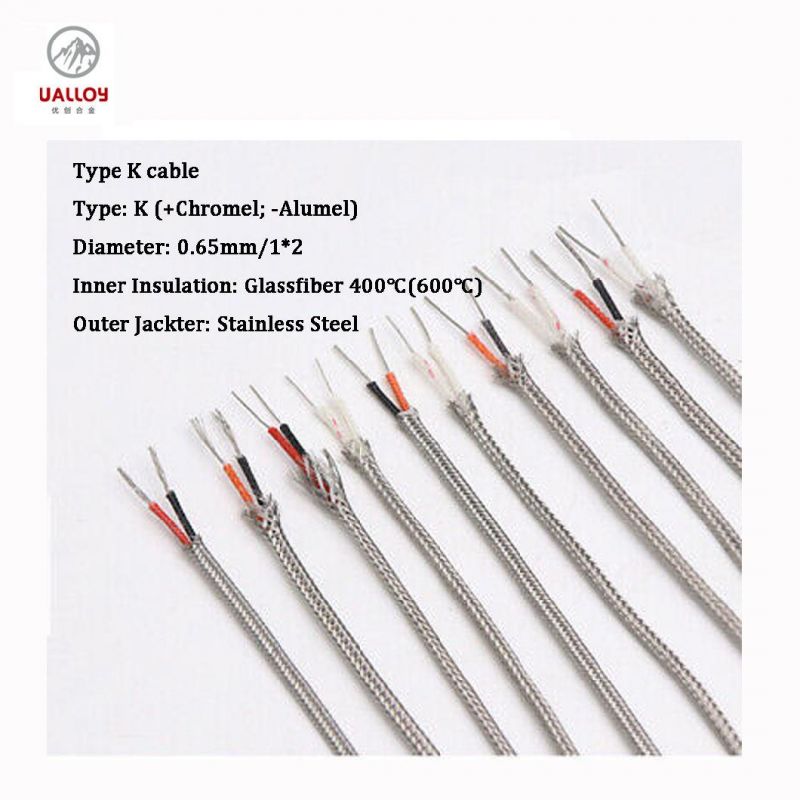

K-Bl-Ss-0.65 Glass Fiber Insulated Stainless Shield Thermocouple Extension Cable

Hangzhou Ualloy Material Co., Ltd.

Conductor Type：Stranded
Application：Overhead, Heating, Underground

Base Info

Model NO.：K
Conductor Material：Chromel Alumel
Sheath Material：Fiberglass
Insulation Material：Stainless Steel
Material Shape：Round Wire
Range of Application：Mine
Certification：ISO9001, RoHS
Positive Pole：Chromel
Negative Pole：Alumel
Sample：Available
Types：Any Type Available
Transport Package：Roll,Wooden Case
Specification：0.3mm-3.2mm
Trademark：Ualloy
Origin：Zhejiang China
HS Code：9025900090
Production Capacity：10000m,Week
Package size per unit product：30.00cm * 30.00cm * 30.00cm
Gross weight per unit product：20.000kg

Description

Type KConductor Material+NiCr10, -NiSi3Insulation Material FiberglassJacketStainless SteelConductor Diameter0.08-3.0mmTemperature Range-40~1300ºCStandardANSI Standard K-Bl-Ss-0.65 Glass Fiber Insulated Stainless Shield Thermocouple Extension Cable

K-Bl-Ss-0.65 Glass Fiber Insulated Stainless Shield Thermocouple Extension Cable

K-Bl-Ss-0.65 Glass Fiber Insulated Stainless Shield Thermocouple Extension Cable

K-Bl-Ss-0.65 Glass Fiber Insulated Stainless Shield Thermocouple Extension Cable

K-Bl-Ss-0.65 Glass Fiber Insulated Stainless Shield Thermocouple Extension Cable
