Double Jacket 23AWG CAT6 LAN Cable with Certificate
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Bc,CCA,Tc,Cu,CCS
- Cover Material：PVC,PE,LSZH
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：SFTP CAT6
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, ETL SGS CPR
- Model：UTP CAT6
- Brand：Risun or OEM
- Cores/Pairs：8,4
- 1st Shieled：Polyester Tape +Aluminum Foil
- 2ND Shield：40% Tinned Copper
- Drain Wire：26AWG Tinned Copper
- Transport Package：305m,Wooden Reel,CTN
- Specification：ETL, CE, ROHS, ISO9001
- Trademark：RISUN or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description

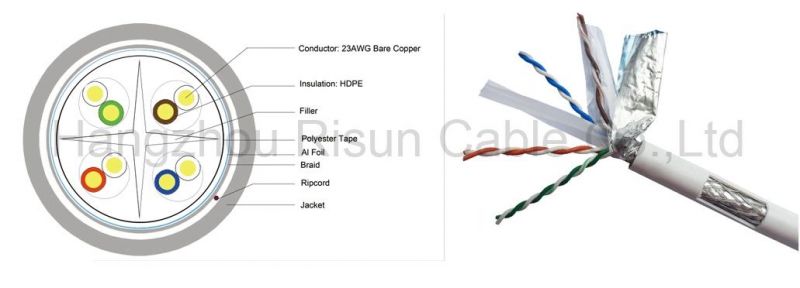

ConstructionConductor 23AWG (Solid or Strand) CU/CCA/CCS Insulation HDPE1.04±0.03mm Cores/Pairs 8/4 Drain Wire 26AWG Tinnned Copper Elongation Min. 300% Temperature Range -20 up to +75°C Tensile strength Min. 1.68Kg/mm2 Conductor Resistance Max. 9.38 ohm/100m Resistance Unbalance Max. 2% Insulation Resistance 150 ohm/KM Mutual Capacitance Max. 5600pF/100m Cpacitance Unbalance Max. 330pF/100m Impendance 100±15 ohm Spark Test 2000V Velocity Propagation 67% Attenuation RL Next PS Next (MHz) (db/100m) (db) (db) (db/100m) 1MHz 2.0 20 65.3 63.5 4MHz 4.1 23 56.3 54.2 8MHz 5.8 24.5 52.4 50.5 10MHz 6.6 25 51.3 49.2 16MHz 8.2 25 49.3 47.4 20MHz 9.3 25 48.8 46.9 25MHz 10.4 24 45.3 43.4 31.25MHz 11.7 23 43.0 41.8 62.5MHz 17.0 21 39.2 37.2 100MHz 22.0 20 36.3 34.4 155MHz 28.1 19 35.5 33.6 200MHz 32.4 19 31.8 29.9 240MHz 36.0 18 30.6 28.7 300MHz 41.0 18 29.2 27 350MHz 44.9 17 28.0 25.6
FAQ
Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.
Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.
By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.
Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.
Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
