0.6/1kv ABC Electric Cable with Bare AAAC Neutral Messenger
People's Cable Group Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：Electric Cable
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, CCC, BV
- Brand：Rmjt
- Voltage：High Voltage
- Structure：1*3 1*7 1*19 1*37
- Customized：Yes
- Usage：Power Transimision
- Transport Package：Wooden Drum
- Specification：ASTM BS GB IEC DIN
- Trademark：RMJT
- Origin：China
- HS Code：8544492100
- Production Capacity：1000000000000000meters,Year
Description
Covered line Wire ( Bare Overhead Conductor )Code Name Size No. of wires Insulation Thickness (mm) Overall
Diameter
(mm) Rated Strength (kg) Nominal Weight (kg/km) Allowable Ampacity+
A AWG or kcmil Aluminum LDPE HDPE XLPE AAC Plum 6 7 0.762 6.198 255 36.61 50.66 51.27 51.27 100 Apricot 4 7 0.762 7.239 400 58.19 75.57 76.33 76.33 135 Peach 2 7 1.143 9.703 612 92.56 126.09 127.55 127.55 180 Nectarine 1 7 1.143 11.481 789 116.67 167.31 169.52 169.52 210 Quince 1/0 7 1.524 12.395 903 147.48 203.7 206.14 206.14 240 Haw 1/0 19 1.524 12.522 980 147.48 204.49 206.96 206.96 240 Orange 2/0 7 1.524 14.834 1139 186.02 257.9 261.02 261.02 280 Ironwood 2/0 19 1.524 13.691 1211 186.02 250.41 253.21 253.21 280 Fig 3/0 7 1.524 16.307 1377 233.64 315.53 319.08 319.08 320 Lemon 3/0 19 1.524 14.986 1501 233.64 306.53 309.7 309.7 320 Olive 4/0 7 1.524 16.307 1728 296.14 378.04 381.58 381.58 370 Pomegranate 4/0 19 1.524 16.459 1823 296.14 379.09 382.69 382.69 370 Sassalras 250 19 1.524 17.628 2043 348.68 439.88 443.84 443.84 420 Mulberry 266.8 19 1.524 17.653 2182 372.19 463.59 467.55 467.55 430 Basswood 300 19 1.524 18.999 2404 419.66 520.91 525.3 525.3 478 Anona 336.4 19 1.524 19.964 2697 469.51 578.04 582.75 582.75 495 Chinquapin 350 19 1.524 20.269 2790 488.12 598.98 603.79 603.79 525 Molles 397.5 19 2.032 22.454 3123 555.08 707.29 713.88 713.88 550 Sumac 450 37 2.032 23.673 3719 628 791.79 798.89 798.89 600 Huckleberry 477 37 2.032 24.257 3810 665.21 834.63 841.98 841.98 610 ACSR Walnut 6 6/1 0.762 6.553 540 36.64 69.94 71.43 71.43 105 Butternut 4 6/1 0.762 7.874 844 58.04 107.15 107.15 107.15 135 Hickory 4 7/1 0.762 8.052 1070 58.04 120.54 122.03 122.03 135 Pignut 2 6/1 1.143 10.312 1293 92.27 175.6 177.09 177.09 180 Beech 2 7/1 1.143 10.643 1651 92.27 199.41 199.41 199.41 180 Chestnut 1 6/1 1.143 11.303 1610 116.37 17.27 218.76 218.76 210 Almond 1/0 6/1 1.524 13.157 1987 146.73 282.75 284.24 284.24 235 Pecan 2/0 6/1 1.524 14.402 2404 184.98 348.23 349.72 349.72 290 Filbert 3/0 6/1 1.524 15.799 3003 233.34 430.08 433.05 433.05 305 Buckeye 4/0 6/1 1.524 17.348 3787 394.21 531.27 535.74 535.74 345 Hackberry 266.8 18/1 1.524 18.517 3121 372.63 525.32 528.3 528.3 356 AAAC Maple 6 7 0.762 6.553 503 42.41 59.53 61.01 61.01 78 Hornbeam 4 7 0.762 7.874 798 67.56 89.29 90.78 90.78 145 Linden 2 7 1.143 10.312 1270 107.44 147.33 147.33 147.33 190 Oilnut 1/0 7 1.524 11.887 2023 170.99 238.11 247.03 247.03 250 Waterash 2/0 7 1.524 14.402 2445 215.63 291.68 302.01 302.01 290 Shellbark 3/0 7 1.524 15.799 3080 271.59 358.65 370.55 370.55 335
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Production process:

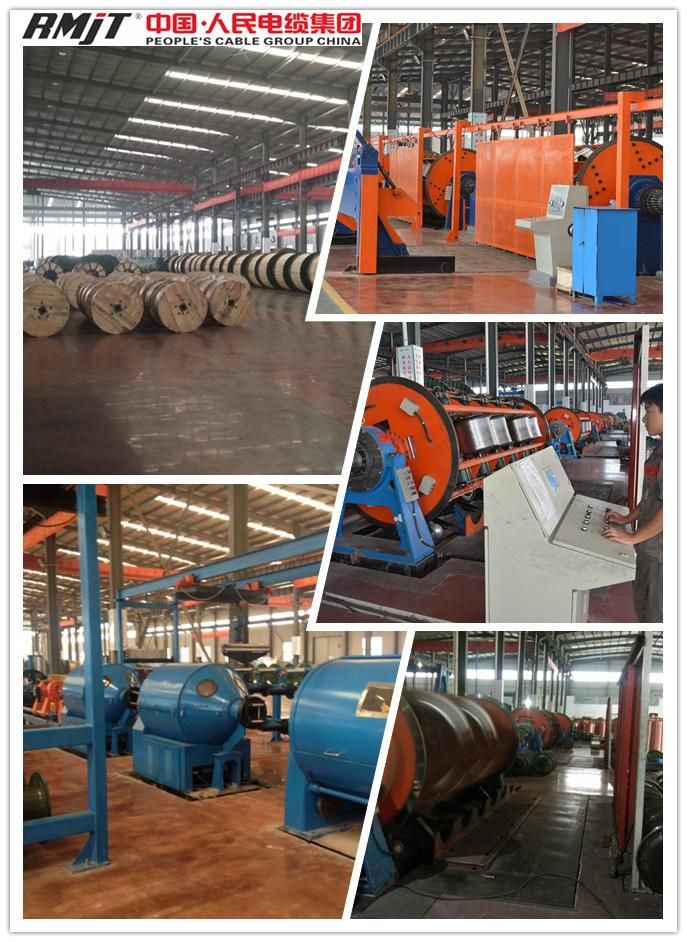

ABC cable producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
