450V/750V Tinned Copper Conductor Silicone Rubber Wire VDE H05ss-F Dw12
Dongguan Dewei Wire Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：Silicone Rubber
- Insulation Material：Silicone Rubber
Base Info
- Model NO.：VDE H05SS
- Material Shape：Round Wire
- Range of Application：Cold-Resistant
- Certification：ISO9001, UL, RoHS
- Brand：Dewei
- Silicone Rubber Cable：VDE H05ss
- Transport Package：50mt,Coils
- Specification：VDE SGS iSO9001
- Trademark：DEWEI
- Origin：Dongguan China
- HS Code：8544492100
- Production Capacity：10000m,Day
Description
Overview
Insulator Packing Section(mm) Compos NO*ømm Diameter(mm) Insulator Thickness(mm) Cora Dianeter(mm) Jacket Thickness(mm) Over Diameter(mm) Mt/coils 0.5*2C 16*0.20 0.92 0.60 2.12 0.80 5.84 100 0.75*2C 24*0.20 1.13 0.60 2.33 0.80 6.26 100 1.00*2C 32*0.20 1.31 0.60 2.51 0.90 6.82 50 1.50*2C 30*0.25 1.58 0.80 3.18 1.00 8.36 50 4.0*2C 53*0.31 2.61 1.00 4.61 1.20 11.6 50 6.0*2C 80*0.31 3.20 1.00 5.20 1.40 13.2 50 0.50*3C 16*0.20 0.92 0.60 2.12 0.80 5.84 50 0.75*3C 24*0.20 1.13 0.60 2.33 0.90 6.46 100 1.0*3C 32*0.20 1.31 0.60 2.51 0.90 6.82 50 1.5*3C 30*0.25 1.58 0.80 3.18 1.00 8.36 50 0.5*4C 16*0.20 0.92 0.60 2.12 0.90 6.70 50 0.75*4C 24*0.20 1.13 0.60 2.33 0.90 7.18 50 1.00*4C 32*0.20 1.31 0.60 2.51 0.90 7.60 50 1.50*4C 30*0.25 1.58 0.80 3.18 1.10 9.55 50 0.50*5C 16*0.20 0.92 0.60 2.13 1.00 7.48 50 4.0*5C 53*0.31 2.61 1.00 4.61 1.40 14.71 50 1,All raw material we selected the high quality one.
2,Professional & Skilful workers care every details in handling the producing.
3,Quality Control Department specially responsible for quality checking in each process.
Specification
Product Description
Conductor

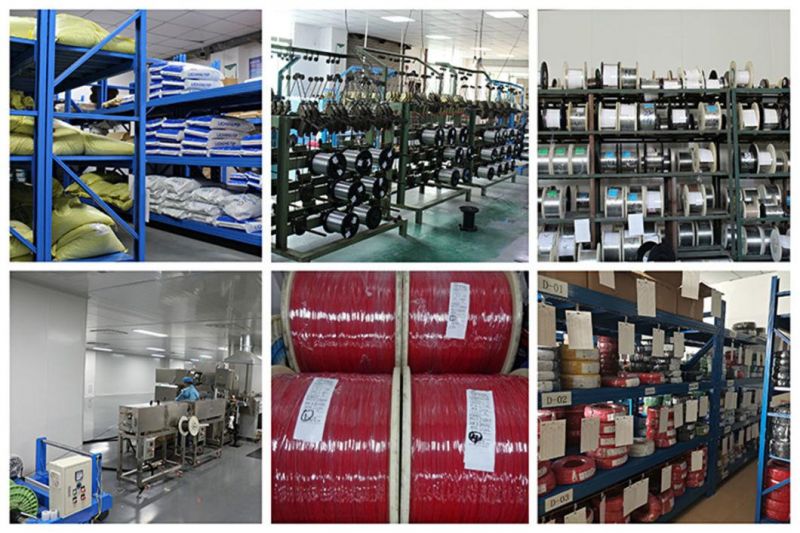

Manufacturing Shop

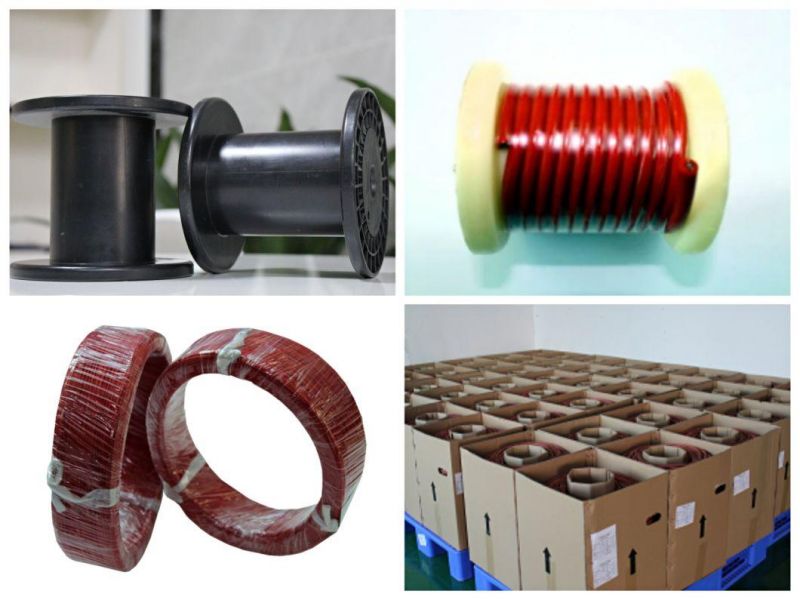

Packaging & Shipping
Certifications
FAQ
2,Professional & Skilful workers care every details in handling the producing.
3,Quality Control Department specially responsible for quality checking in each process.
