• Model NO.：RG59 Coaxial Cable with Power
• Wire Core Material：Bc,CCS,CCA
• Certification：CE, ISO, RoHS, UL, ETL
• Model：Rg59 Coaxial Cable with Power
• Brand：OEM
• Impedance：75± 2ohm
• Insulation：Foam PE
• Braid Coverage：Bc, Tc, CCA, CCS, Al-Mg (60%-95%)
• Jacket：PVC,PE
• Color：Black or Per Customers′ Special Requirement
• Length：100m,200m,305m,500m,1000m

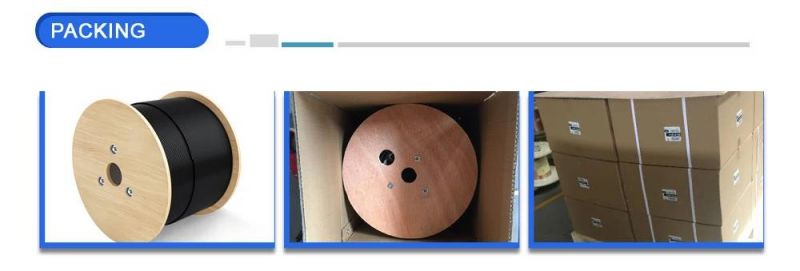

• Transport Package：305m,Wooden Reel,Carton
• Specification：37x37x27cm
• Trademark：OEM
• Origin：China,Zhejiang
• HS Code：854420000
• Production Capacity：10000reels,Month

Basic Info.

Model NO. RG59 Coaxial Cable with Power Wire Core Material Bc,CCS,CCA Certification CE, ISO, RoHS, UL, ETL Model Rg59 Coaxial Cable with Power Brand OEM Impedance 75± 2ohm Insulation Foam PE Braid Coverage Bc, Tc, CCA, CCS, Al-Mg (60%-95%) Jacket PVC/PE Color Black or Per Customers′ Special Requirement Length 100m/200m/305m/500m/1000m Transport Package 305m/Wooden Reel/Carton Specification 37x37x27cm Trademark OEM Origin China/Zhejiang HS Code 854420000 Production Capacity 10000reels/Month

Product Description

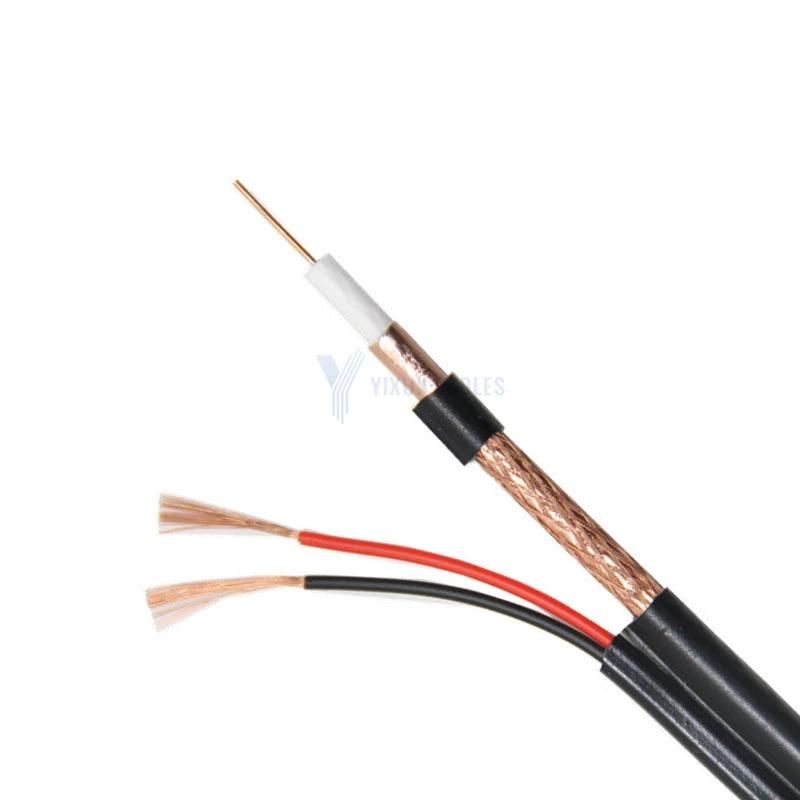

 Rg59 Coaxial Cable with Power

Appliacation
Mainly used for the distribution and access of electronic communication equipment, RF transmitter unit of communication system, building cabling and CATV; the most striking features are broadband and high speed; currently, also widely used in the multimedia transmission field; conforms to RG59.

Features
Minimum Bend Radius: 10.2mm(0.253")
Maximum Pulling Tension: 10.2mm(0.253")
Capacitance: 15.3+/-0.1 pF/feet,(50+/-3 nF/km)
Impedance: 75±2ohms
Velocity of Propagation: 88% (Nominal)
Maximum DC Loop Resistance:
1.61 ohms/1000 feet (2.52 ohms/km)
Attenuation:@68 F(20°C)

Construction Characteristics

RG59 Series	Center Conductor	Dielectric	Foil Shield	Braid Shield	Foil Shield	Braid Shield	Jacket	Messenger
RG59	0.81mm BC or CCS	3.66mm Fomaed PE	AL Foil Bonded or Unbonded	AL or BC or TC 45-70% Coverage	Non	Non	6.1mm PVC	1.3mm Steel
RG59 Tri	0.81mm BC or CCS	3.66mm Fomaed PE	AL or BC or TC 45-70% Coverage	AL Foil Unbonded	AL Foil Unbonded	Non	6.15mm PVC	1.3mm Steel
RG59 Quad	0.81mm BC or CCS	3.66mm Fomaed PE	AL Foil Unbonded	AL 60% Coverage	AL Foil Unbonded	AL 40% Coverage	6.50mm PVC	1.3mm Steel
RG59 B/U 95%	0.81mm BC or CCS	3.66mm Fomaed PE	Non	BC 95% Coverage	Non	Non	6.1mm PVC	Non

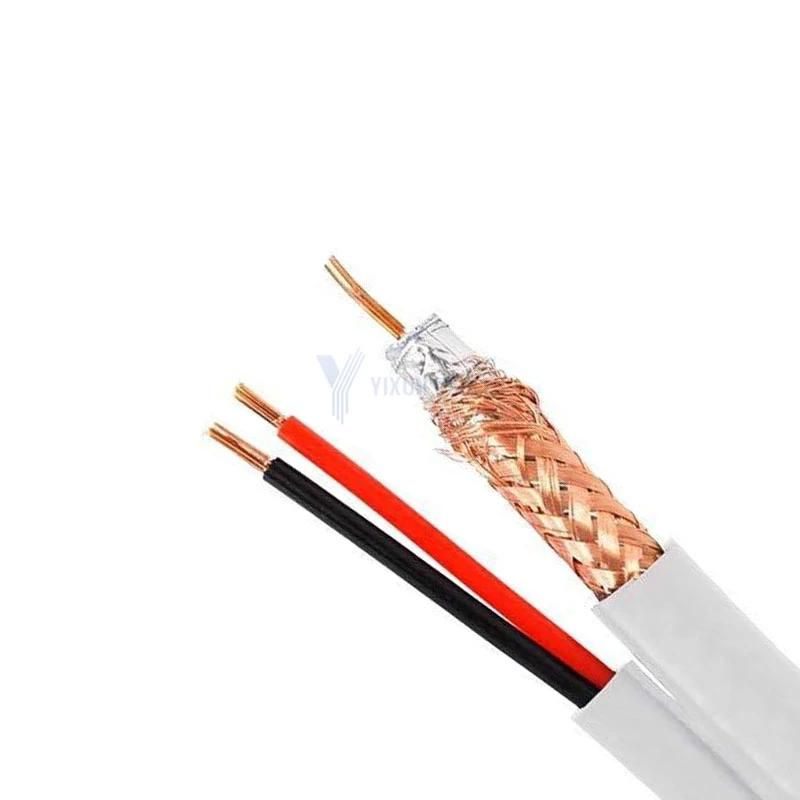

RG59 B/U 95% Siamese	0.81mm BC or CCS	3.66mm Fomaed PE or Solid	Non	BC 95% Coverage	Non	Non	6.1mm PVC	2pair 18Awg cable

Technical Performance

Frequency(MHz)	Maximum(dB/100ft)	Maximum(dB/100m)
55	2.05	6.73
211	3.8	12.47
350	4.8	15.75
450	5.4	17.72
550	5.95	19.52
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

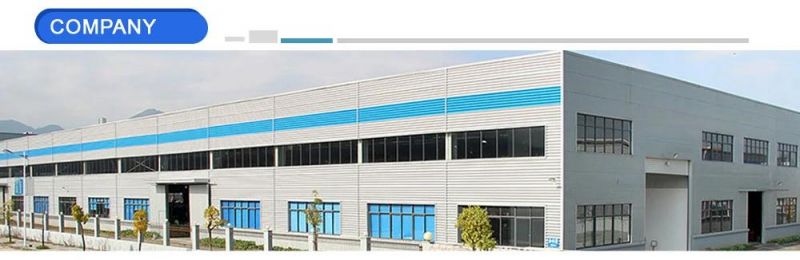

<sub>YIXUN is professional supplier and exporter with 12 years Experience in Communication Industry.
Manufacture Lan Cable, Coaxial Cable, Fiber Optic Cable, Telephone cable, Alarm cable and Accessories,
with Certificates of ISO9001, CPR, UL, CE, RoHS, ETL.
In the past 10 years, We export to more than 70 countries, entered into the market of Europe, Australia, South America and Southeast Asia.

Our products have been widely installed in Telecom companies and many distributors around the world.
We're a business dedicated to offer you superior customer service, applying educated business principles to
keep our business as well as our clients companies. With understanding the needs of each one of our customers,YIXUN is entirely committed to meeting individual customer needs.</sub>


 Why Choose Us
YIXUN knows deep down that our purpose is to meet the needs of our customers.We learn about the supply chain and know that the difficulties we are facing are also the same as those of our customers.In this way, by understanding what our own needs are, we can think outside the box to understand the needs of our customers.

If you talk with YIXUN, we will do exactly according to documents: How to find an honest supplier? (We will send you if you need).
We hope that customers can feel relaxed and happy when negotiating with our company, not only can complete the procurement work efficiently and worry-free but also to improve your ability of re-sell.

What kind of service we can provide?
1.Latest market information per month
2.Market research report
3.Solutions of supplier's dishonest problem
4.Solutions of supplier's poor service
5.Soulutions of supplier's quality control problem
6.Soulutions of supplier's lead time problem
7.Support solutions replace price list
8.Channels for complaints
9.25 Years of quality warranty assurance.
10.Market protection.
11.Solutions of order follow-up.
12.Support sales methods and strategies.


FAQ
 (1)Q: Are you a manufacturer or a trading company?
     A: We are a Industry and trade integration with 12 years production experience.
(2)Q: Can you print our logo or company name in cable?
     A: Yes,we can print your logo or company name on products.
(3)Q:Can you accept customize or design for us?
     A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(4)Q:Is it possible to get a free sample ?
     A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(5)Q:What is your MOQ ?
     A: Usually, MOQ is 100 thousand meters.
(6)Q:If I want to purchase,how to pay?
     A: Usually, we do T/T in 30% deposit before production,70% balance against copy of B/L. Also payment terms are negotiable depending on customer's request.
