as Per IEC 60228 Copper Conductor Bare Copper Earthing Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Bare
- Application：Overhead, Heating, Underground, Building Wire
- Conductor Material：Copper
- Material Shape：Round Wire
- Range of Application：Power Transmission
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE, TUV
Base Info
- Model NO.：Bare conductor
- Brand：Fengda
- Colour：Red,Green,Blue,Black,White,as Request
- Flame Test：Yes
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Factory Type：Manufacturer
- Transport Package：Rolls or According to Cusotmers′ Reques
- Specification：0.5 to 300mm2
- Trademark：FengDa
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description
Application
Copper conductors are used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete.
Bare stranded copper cable is available in a range of sizes to meet differing current ratings (see product information table). Additional sizes are also available on request.
Product Details
- Highly conductive soft or hard drawn stranded copper cable
- Tinned soft drawn stranded copper cable available on request
- Bare stranded copper cable supplied unbranded
Earthing Standards
- BS EN 60228 (soft drawn)
- BS 7884 (hard drawn)
BARE STRANDED COPPER CABLE

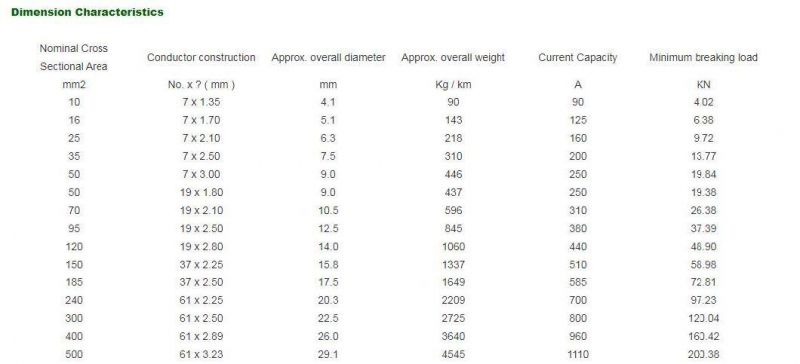

The following table enables the selection of bare stranded copper cable manufactured by Feiya - should you require any further information please do not hesitate to contact us.
CONDUCTORS
Earthing conductors are available in high conductivity copper and aluminium as bare, tinned or lead with PVC or LSOH (Low Smoke Zero Halogen) covering - conductors are used to prevent large transients entering a buildings power distribution system safely dispersing the electrical currents.
