• Model NO.：1x95mm2 ABC Cable
• Material Shape：Round Wire
• Range of Application：Overhead
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Hnbf Cable
• Colour：Black or as Required
• Transport Package：Exported Wooden Drum or Rolls
• Specification：ABC Cable
• Trademark：HNBF Cable
• Origin：China
• HS Code：8544492100
• Production Capacity：900000m,Month

Basic Info.

Model NO. 1x95mm2 ABC Cable Material Shape Round Wire Range of Application Overhead Certification ISO9001, CE, CCC, RoHS Brand Hnbf Cable Colour Black or as Required Transport Package Exported Wooden Drum or Rolls Specification ABC Cable Trademark HNBF Cable Origin China HS Code 8544492100 Production Capacity 900000m/Month

Product Description

Product Discription

Application

Aerial Bundled Cable-Triplex Service Drop Aluminum Conductor

To supply 120/220V aerial service for temporary service at construction sites, as a service drop(power pole to service entrance) as a secondary cable(pole to pole), or street lighting. For service at 600V or lower at a maximum conductor temperature of 75ºC for polyethylene insulated cables or 90ºC for XLPE insulation. Rated Voltage: 600V or lower Maximum conductor operating temperature: PE insulation conductor: 75ºC XLPE insulation conductor: 90ºC Colour of insulation: Black and customer designated.

Part of Technical Data:

Goods Name	Specification	Conductor	Insulation Thickness	Cable Overall Diameter	20oC Conductor DC Resistance	Cable Weight
0.6/1kV	mm2	No./mm	mm	mm	Ω/km	kg/km
Aluminum	1x10	7/1.35	1.0	5.8	3.08	41
Conductor	1x16	7/1.71	1.2	7.2	1.91	65
XLPE	1x25	7/2.16	1.2	8.4	1.2	93
Insulation	1x35	7/2.55	1.4	9.8	0.868	129
ABC	1x50	7/3.00	1.4	11.1	0.641	170
Cable	1x70	19/2.16	1.4	12.8	0.443	233
Aerial	1x95	19/2.55	1.6	14.8	0.320	316
Bundled	1x120	37/2.05	1.6	16.2	0.253	388
Cable	1x150	37/2.28	1.8	18.1	0.206	485
	1x185	37/2.56	2.0	20.2	0.164	600
	1x240	37/2.95	2.2	22.8	0.125	783

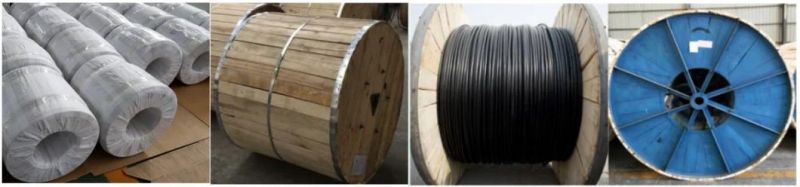

Packing and Delivery


Woven Bag wrapping(soft packing/rolls) size:
Advantages: low price, light weight and space saving.
Disadvantages: workers are inconvenient to use (cannot roll), production is slightly troublesome, and labor costs are slightly higher.

Wooden Drum Packing Details: The wooden drum will be fumigated. In order to prevent rolling, it will also be reinforced with environmentally friendly materials. This packaging method is easy to construct, easy to install, easy to produce, but slightly more expensive.

Wooden Steel Drum:  Packing Details: This wooden-steel drum is suitable for cables with an outer diameter of more than 30mm. Packing Details: Usually use international wooden drums and rolls, can also as buyer's requirements. The Package size will according to the cable's size.

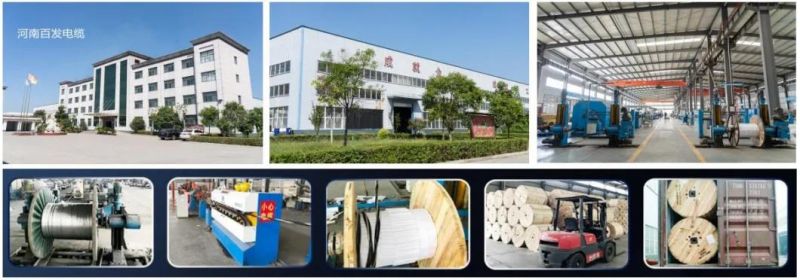

Our Factory

The annual production capacity is 1,450,000.00 km cables and wires. In our factory, there are above 300 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation. Our main products are Bare Conductor(acsr, acar, aaac, aac), ABC Cable(aerial bundled cable), Electrical Wire, and Power Cable.



Certifications

Our company has passed ISO 9000 quality management system certification, ISO 9000 occupational health and safety management system certification, ISO 9000 environmental management system certification, CCC China National Compulsory Product Certification, CE Certificate of Conformity, and Rohs.




International Fair
We participate in the Canton Fair and foreign exhibitions every year. Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like South America, North America, Latin America, South Asia, Southeast Asia, Africa, and Europe etc.



Why Choose Us?

Our advantages
* Advanced production and testing equipment.
* Strict controlling of raw materials.
* Raw material origin, factory direct sales, competitive price.
* Inquiry and consulting support.
* Free sample and sample testing support.
* Fast delivery.
* Good pre-sale and after-sale services.
