DIN Standard All Aluminum Alloy Conductor 95mm AAAC Conductor
HENAN BAOFENG CABLE CO., LTD.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：All Aluminum Alloy
- Sheath Material：No Sheath
- Insulation Material：Bare
Base Info
- Model NO.：DIN AAAC Conductor
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Hnbf Cable
- Certifications：ISO9001, Ce, CCC, ISO14001, Pccc
- Standard：ASTM, IEC, BS, NFC, Icea
- Delivery Time：15 Days
- Shipping Term：Express or Sea
- Experience：More Than 20 Years
- Trade Term：Fob, CIF, CFR
- Transport Package：Wooden Drum
- Specification：IEC AAAC 500mm2 Conductor
- Trademark：HNBF Cable
- Origin：Henan, China
- HS Code：7614900000
- Production Capacity：2500km,Month
Description
Code Number Max.D.C. Resistance of Conductor at 20ºC Number of Wires Diameter of Wires Diameter of Conductor Approx. Weight Rated Strength mm² - mm mm kg/km daN Ω/km 16 7 1.83 5.49 50.4 5.43 1.7896 25 7 2.29 6.87 78.7 8.49 1.1453 40 7 2.89 8.67 125.9 13.58 0.7158 63 7 3.63 10.8 198.3 21.39 0.4545 100 19 2.78 13.9 316.3 33.95 0.2877 125 19 3.1 15.5 395.4 42.44 0.2302 160 19 3.51 17.55 506.1 54.32 0.1798 200 19 3.93 19.65 623.7 67.91 0.1439 250 19 4.39 21.95 790.8 84.68 0.1151 315 37 3.53 24.71 998.9 106.95 0.0916 400 37 3.98 27.86 1268.4 135.81 0.0721 450 37 4.22 29.54 1426.9 152.79 0.0641 500 37 4.45 31.15 1585.5 169.76 0.0577 560 61 3.67 33.03 1778.4 190.14 0.0516 630 61 3.89 35.01 2000.7 213.9 0.0458 710 61 4.13 37.17 2254.8 241.07 0.0407 800 61 4.38 39.42 2540.6 271.62 0.0361 900 91 3.81 41.91 2861.1 305.58 0.0321 1000 91 4.01 44.11 3179 339.53 0.0289 1120 91 4.25 46.75 3560.5 380.27 0 0258 1250 91 4.49 49.39 3973.7 424.41 0.0231
Product SpecificationsShort name Description Chinese type AAC All Aluminumn JL AAAC All Aluminumn Alloy JLHA1 JLHA2 ACSR Aluminum Conductor Steel Reinforced JL/G1A AACSR Aluminum Alloy Conductor Steel Reinforced JLHA1/G1A ACAR Aluminum Conductor Alloy Reinforced JL/LHA1 All Aluminum Clad Steel Conductor JLB1A JLB1B ACSR/AW Aluminum Conductor Aluminum Clad Steel Reinforced JL/LB1A AACSR/AW Aluminum Alloy Conductor Aluminum Clad Steel Reinforced JLHA1/LB1A BCC Bare Copper Stranded Conductor TJ Greased Conductor Anti-corrosive Stranded Conductor JL/G1AF
Packing and Delivery
There are three ways of packing: wooden-drum, steel-wooden drum or steel drum, or according to your request. The wooden drum is lighter, but it`s load bearing is limited, so generally choose the wooden drum when the cable outer diameter is small and the weight is light, choose the wood-steel drum when the cable outer diameter is big and the weight is heavy. But we can design drum sizes or choose durms according to client`s request like quanity or weight of per drum.
Company Profile

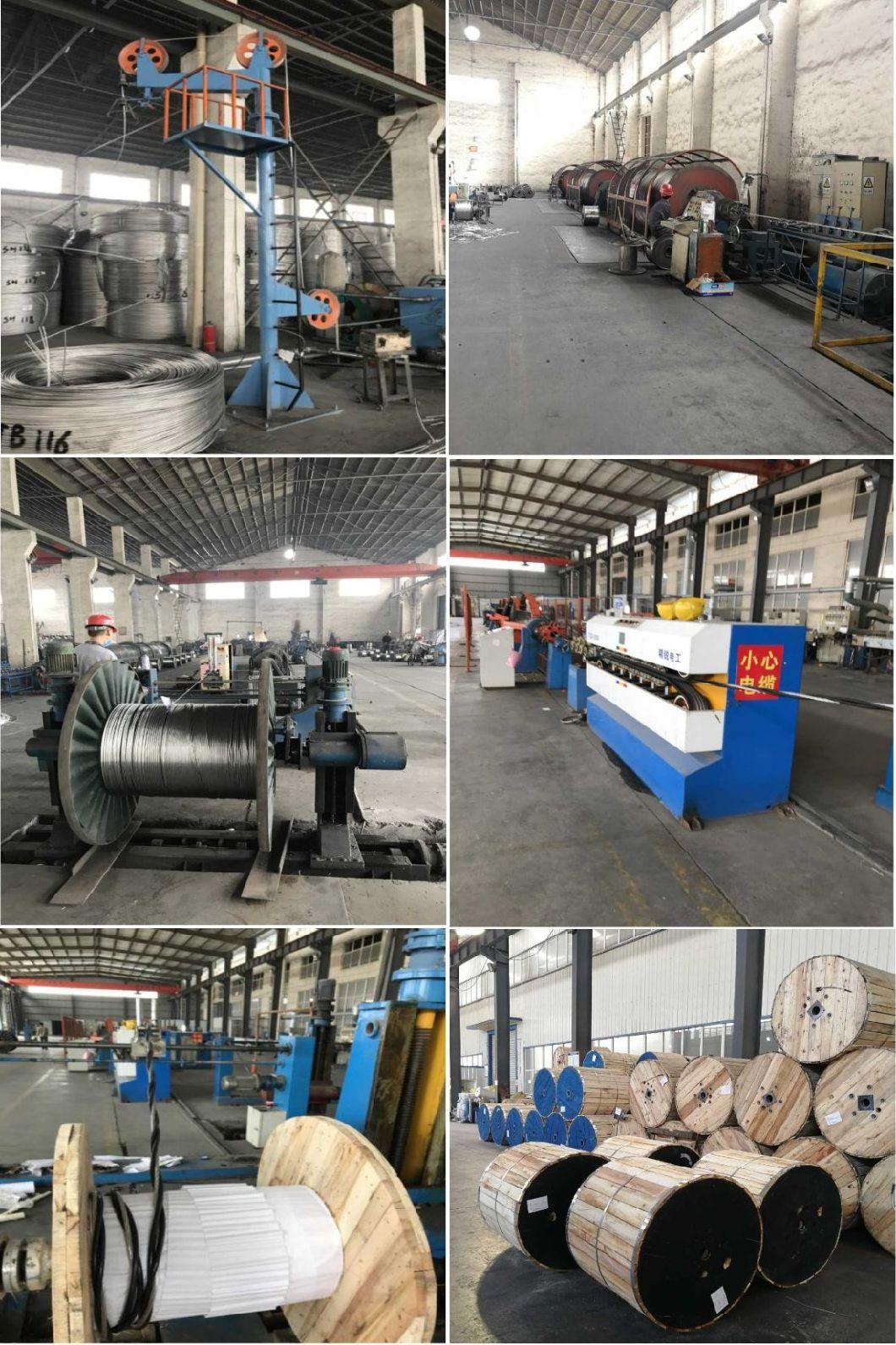

We(Henan Baofeng CaBLE Co., Ltd. ) are a professional cable manufacture which integrates production and sales together. Our factory is located in the Science and Technology Industrial Park of Gongyi, Zhengzhou City, Henan Province. We have advanced production and testing equipment, made from domestic and abroad countries. More than 300 staffs working in our factory, we can manufacture 1, 450, 000.00 km cables each year, and we have passed series of quality management system certifications, like ISO9001 CCC CE etc. Products have been sold to many countries like UK, Indonesia, Bangladesh, Tanzania, USA, Canada, Madagascar, South Africa etc.
Our principle is quality first, to make customers satisfied.
Our goal is to build a long-term and steady cooperative relationship with our customers, they can get high-quality products with competitive price, and we can get profits, finally we achieve a win-win situation.
Exhibition
We actively take part in domestic and oversea exhibitions every year, like Canton Fair. Exhibitions are a great opportunity for us to communicate face-to-face with our customers. Customers would have a better understanding of our company and products, we would better know and try to meet their needs, and it is easy to reach cooperation after such communication, so our products have been sold to many contries for oversea marketing.

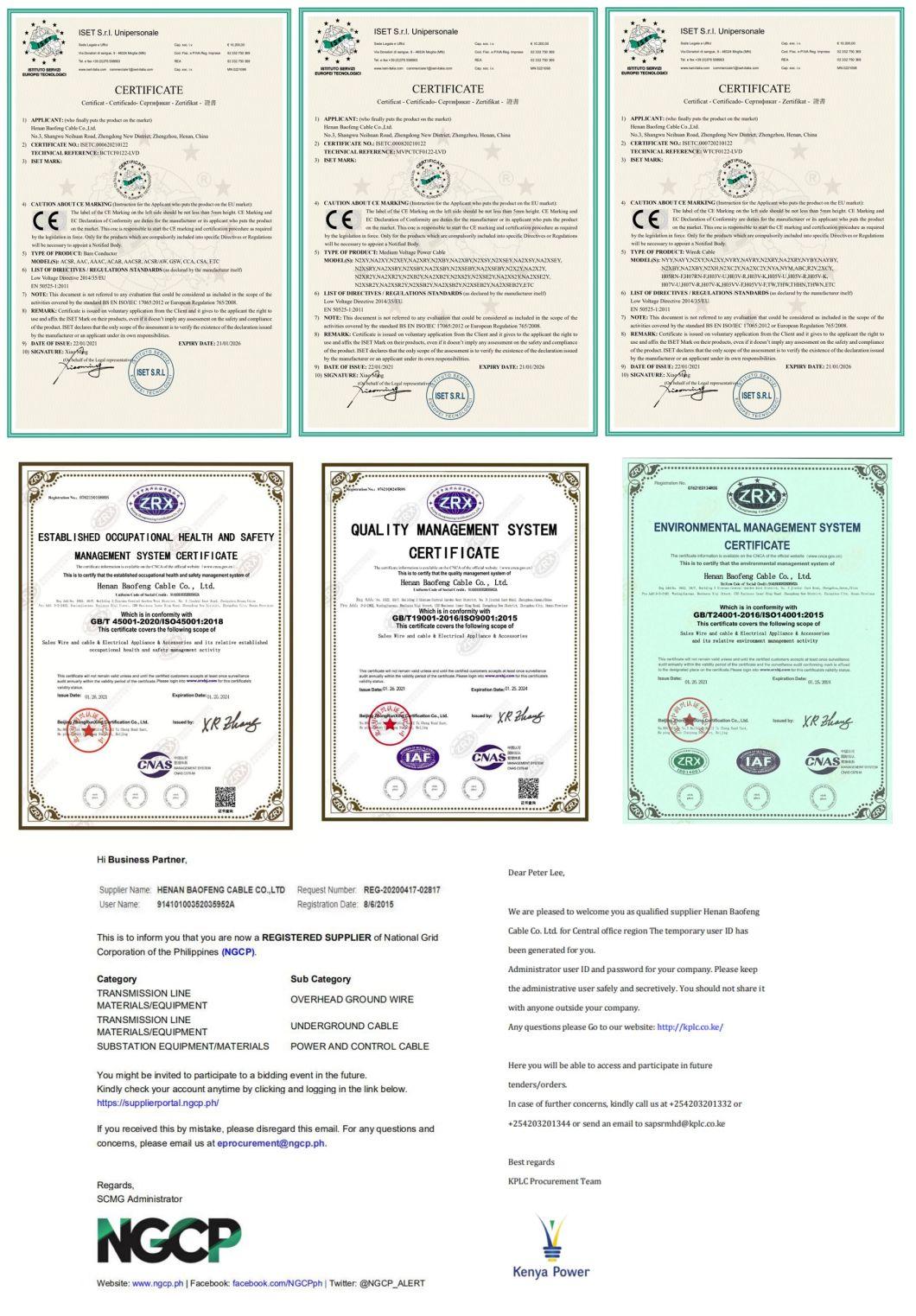

Certifications
Our advantages
* Advanced production and test equipment.
* Strict production quality control system.
* Local raw materials, competitive price.
* The best quality at the same price.
* Fast delivery.
* Good pre-sale and after-sale services.
Product Specifications
Packing and Delivery
There are three ways of packing: wooden-drum, steel-wooden drum or steel drum, or according to your request. The wooden drum is lighter, but it`s load bearing is limited, so generally choose the wooden drum when the cable outer diameter is small and the weight is light, choose the wood-steel drum when the cable outer diameter is big and the weight is heavy. But we can design drum sizes or choose durms according to client`s request like quanity or weight of per drum.
Company Profile
We(Henan Baofeng CaBLE Co., Ltd. ) are a professional cable manufacture which integrates production and sales together. Our factory is located in the Science and Technology Industrial Park of Gongyi, Zhengzhou City, Henan Province. We have advanced production and testing equipment, made from domestic and abroad countries. More than 300 staffs working in our factory, we can manufacture 1, 450, 000.00 km cables each year, and we have passed series of quality management system certifications, like ISO9001 CCC CE etc. Products have been sold to many countries like UK, Indonesia, Bangladesh, Tanzania, USA, Canada, Madagascar, South Africa etc.
Our principle is quality first, to make customers satisfied.
Our goal is to build a long-term and steady cooperative relationship with our customers, they can get high-quality products with competitive price, and we can get profits, finally we achieve a win-win situation.
Exhibition
We actively take part in domestic and oversea exhibitions every year, like Canton Fair. Exhibitions are a great opportunity for us to communicate face-to-face with our customers. Customers would have a better understanding of our company and products, we would better know and try to meet their needs, and it is easy to reach cooperation after such communication, so our products have been sold to many contries for oversea marketing.
Certifications
Our advantages
* Advanced production and test equipment.
* Strict production quality control system.
* Local raw materials, competitive price.
* The best quality at the same price.
* Fast delivery.
* Good pre-sale and after-sale services.
