GYTC8S 2-288 Core Outdoor Installation of Fiber Optic Cable

DONGGUAN TW-SCIE CO., LTD.
  • Application：Communication, Art, Sensor, Medicine, Probe, Fiber Optic Cable
  • Type：Single More or Multimode
  • Connection Structure：Fiber Optic Cable
  • Material Shape：Round Wire
  • Allowed Lateral Pressure：>1000(N,100mm)
  • Allowed Tensile Strength：>10000N

Base Info

  • Model NO.：GYTC8S fiber optical cable
  • Core：Multicore
  • Certification：RoHS, UL, ISO9001, Reach
  • Brand：OEM
  • Sheath Material：PE
  • Place of Origin：China (Mainland)
  • Brand Name：Tw-Scie or OEM
  • Model Number：GYTC8S
  • Installation Style：Aerial
  • Loose Tube Material：PBT with Jelly
  • Waterblocking Material：Water Blocking Tape or Filling Compound
  • Outer Sheath Material：MDPE , HDPE , LSZH
  • Outer Sheath Color：Black
  • Armour Material：Corrugated Steel Tape
  • Transport Package：Wooden Drum
  • Specification：ROHS, CE
  • Trademark：TW-SCIE or OEM
  • Origin：Guangdong Dongguan
  • HS Code：854470000
  • Production Capacity：200km Per Day

Description

Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiberCharacteristicsConditionsSpecified ValuesUnitsOptical Characteristics   Mode field diameter (MFD)1310nm
1550nm9.2±0.4
10.4±0.8µm
µmCut-off wavelength (λcc) ≤1260nmAttenuation coefficient1310nm
1383nm
1550nm<0.35
<0.35
<0.22dB/km
dB/km
dB/kmMacro bending lossφ75mm, 100circles, at 1550nm≤0.1dBAttenuation non-uniformity ≤0.05dBDispersion coefficient1288~1339nm
1271~1360nm
1550nm≤3.5
≤5.3
≤18Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km)Zero dispersion wavelength 1300~1324nmMax zero dispersion slope ≤0.093Ps/(nm2.km)Group index of refraction (typical value)1310nm
1550nm1.466
1.467 Geometric characteristic   Cladding diameter 125.0±1.0µmCore/cladding concentricity error ≤0.8µmCladding non-circularity ≤1.0%Coating diameter 245.0±10µmCladding/coating concentricity error ≤12.0µmCoating non-circularity ≤8%Diameter of colored coating 250.0±15µmMechanical characteristic   Curling (radius) ≥4mProof stress >0.69GpaCoating strip forceAverage value
Peak value1.0-5.0
1.3-8.9N
NDynamic stress corrosion susceptibility parameter (nd value) ≥20
 50/125 MM In cable:
 1300nm

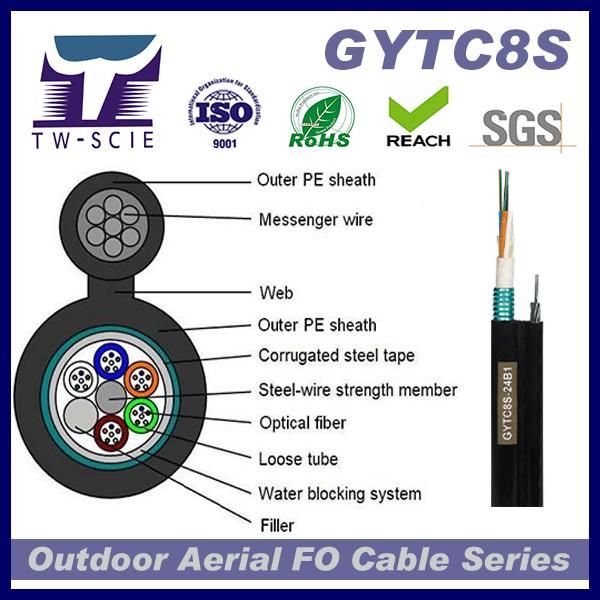

GYTC8S 2-288 Core Outdoor Installation of Fiber Optic Cable

More Pictures:

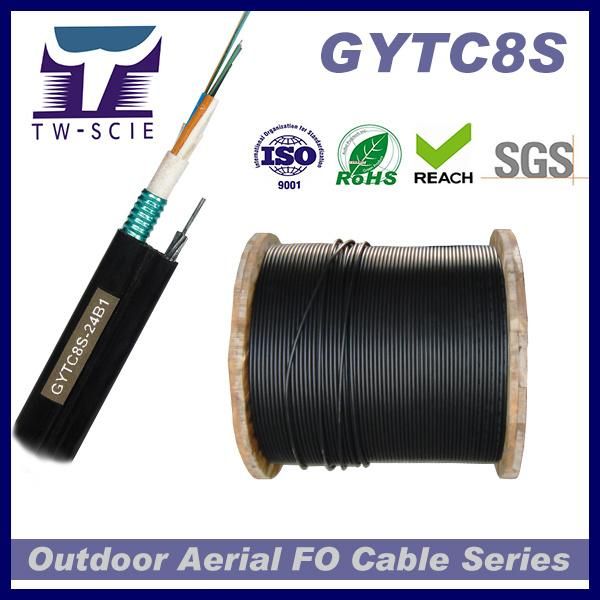

GYTC8S 2-288 Core Outdoor Installation of Fiber Optic Cable
GYTC8S 2-288 Core Outdoor Installation of Fiber Optic Cable

Company Overview:

GYTC8S 2-288 Core Outdoor Installation of Fiber Optic Cable

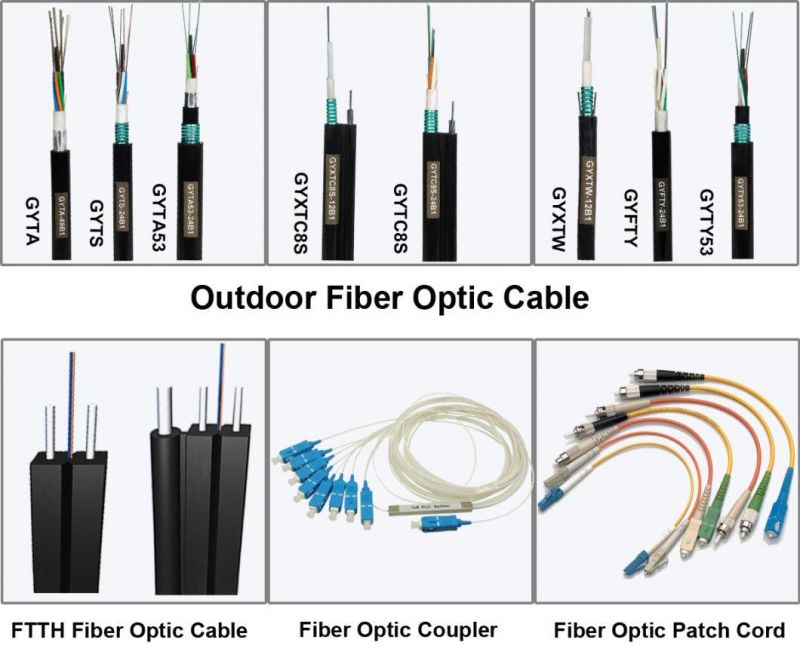

Related Products:

GYTC8S 2-288 Core Outdoor Installation of Fiber Optic Cable

Please contact me for more details and service!

Alina




Any of your inquiry will be replied within 24hrs.

Tag: Armored fiber optic cable, GYTC8S optical fiber cable, Self-support fiber cable, Aerial fiber optic cable
