• Model NO.：YD-GJSFJV
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001
• Brand：OEM
• Sheath Material：PVC
• Keywords1：Fiber Optic Cable
• Keywords2：Gjsfjv
• Keywords3：Fiber Cable
• Keywords4：Optical Fiber Cable
• Trademark：FIBCONET or OEM
• Origin：Ningbo, China
• HS Code：3901100001
• Production Capacity：4, 500km,Month

Basic Info.

Model NO. YD-GJSFJV Core Multicore Certification RoHS, UL, CE, ISO9001 Brand OEM Sheath Material PVC Keywords1 Fiber Optic Cable Keywords2 Gjsfjv Keywords3 Fiber Cable Keywords4 Optical Fiber Cable Trademark FIBCONET or OEM Origin Ningbo, China HS Code 3901100001 Production Capacity 4, 500km/Month

Product Description

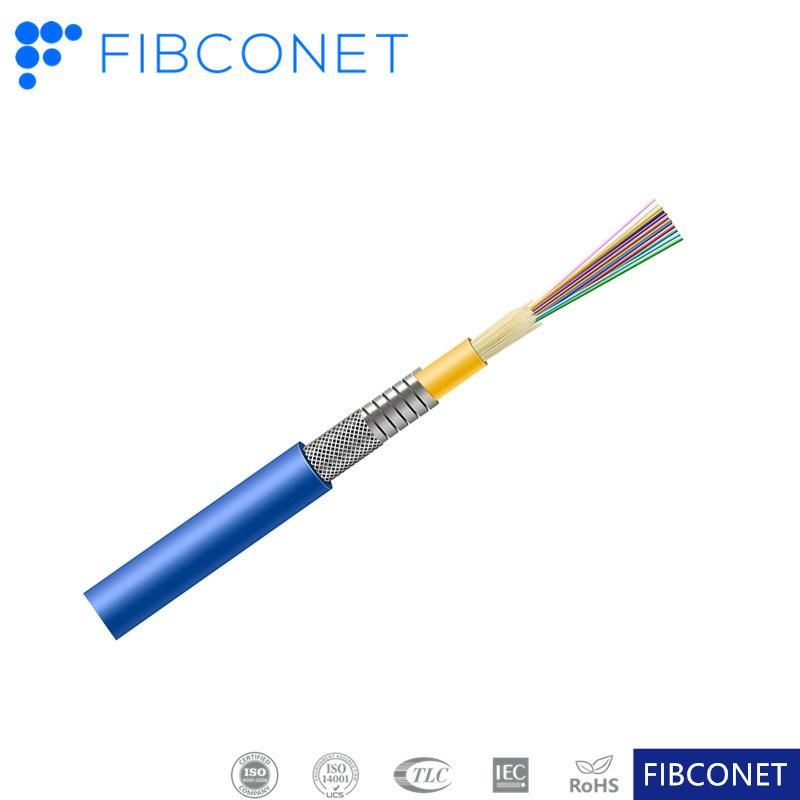

2 cores Indoor Optical Fiber Armored Cable Fiber cable











Distribution Armored GJSFJV

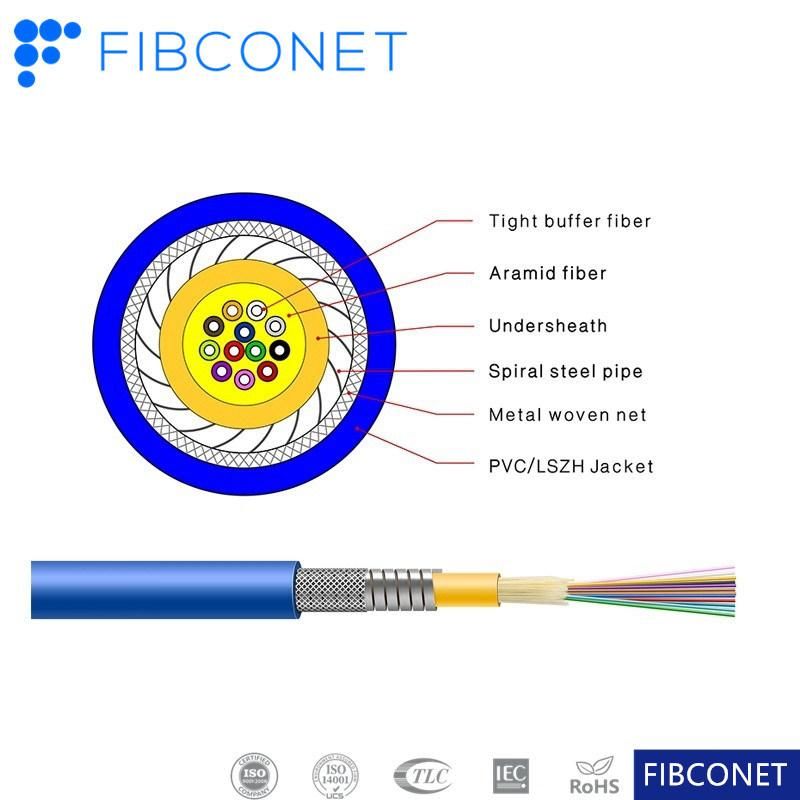

The structure of the cable is put 900μm or 600μm tight buffer fibers with aramid yarn, then covered with a layer of PVC or LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally into fiber optic cable with PVC or LSZH sheath.

Products Features:
·Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn, high performance outer sheath
·Small radius, light weight, lexibility, and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.

Products Application:
·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment, fiber optic patch panel, fiber to the desk, etc
·Fiber optic equipment and instrument
·Indoor cabling, building cabling, LAN, etc
·Long distance, outdoor/indoor cabling, trunking, etc
·Backbone network to the equipment in the building
· Small installation space cabling

Storage/Operating Temperature : -20ºC to + 60ºC


Technical Parameters

Cable Type	Fiber Count	Tight Diameter	Cable Diameter	Cable Weight	Tensile Strength   Long/Short Term	Crush Resistance    Long/Short Term	Bending Radius         Static/Dynamic
		mm	mm	Kg/km	N	N/100m	mm
GJFJV+SV	2	0.6	5	42	300/750	200/1000	20D/10D
GJFJV+SV	4	0.6	6	65	300/750	200/1000	20D/10D
GJFJV+SV	6	0.6	6	66	300/750	200/1000	20D/10D
GJFJV+SV	8	0.6	6	68	300/750	200/1000	20D/10D
GJFJV+SV	12	0.6	6	70	300/750	200/1000	20D/10D

Start with the first switch machine of Huawei in 1994, Fibconet has gone through nearly 20 years in the fiber optic communication area.

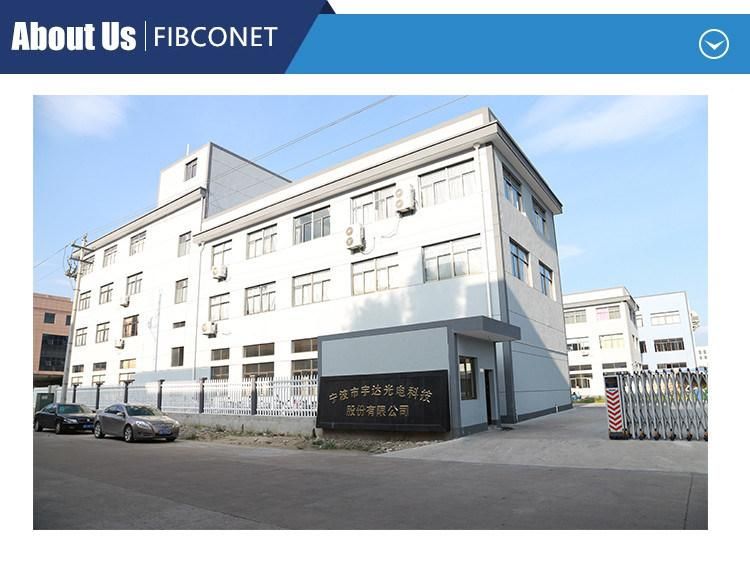

Now Fibconet not only located in Ningbo, where is the FTTH center, but also has new production center in Jilin, covering area nearly 23,000 Sqm, owning 1,500 workers, reaching the production capacity of PLC Splitter in 800,000 pcs and fiber optical connectors in7,000,000 pcs per month. As the national high-tech enterprise, Fibconet's person also striving more efforts on the innovation.50 patents,15 invention patents have been attained.

With the new corporate vision: To be the top one supplier for the fiber optical components, Fibconet update self and have one new logo, Fibconet, which will focus much in the international market with high standard.
