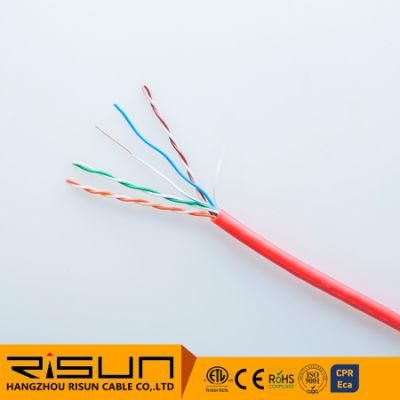

LAN Cable Cat7 600MHz Pass The Fluke Test

Hangzhou Risun Cable Co., Ltd.
  • Type：Bare
  • Conductor Type：Solid
  • Application：LAN Cable
  • Conductor Material：Bc,CCS,CCA,Tc,Cu,Ccag
  • Sheath Material：PVC,PE,LSZH
  • Insulation Material：HDPE

Base Info

  • Model NO.：CAT7
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, RoHS, ETL,CPR,SGS
  • Brand：Risun or OEM
  • UV：Available
  • Waterproof：Available
  • Frame Returdant：Available
  • Indoor/Outdoor：PVC,PE,PVC+PE,PVC+PVC
  • No.of Conductor：8 Core, 4pairs
  • G.W.：10kgs
  • Transport Package：305m,Carton, 45carton,Pallet
  • Specification：ETL, CE, RoHS, SG, ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Mont

Description

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²



Electrical Properties:



Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%



Technical Performance:



          Attenuation         RL    Next        PS Next       (Mhz)          (dB/100M)        (dB)     (dB)      (dB/100m)       1MHz               2.0         20    65.3          63.5       4MHz               4.1         23    56.3          54.2       8MHz               5.8        24.5    52.4          50.5      10MHz               6.6         25    51.3          49.2      16MHz               8.2         25    49.3          47.4      20MHz               9.3         25    48.8          46.9      25MHz              10.4         24    45.3          43.4   31.25MHz              11.7         23    43.0          41.8     62.5MHz              17.0         21    39.2          37.2     100MHz              22.0         20    36.3          34.4



Packing:

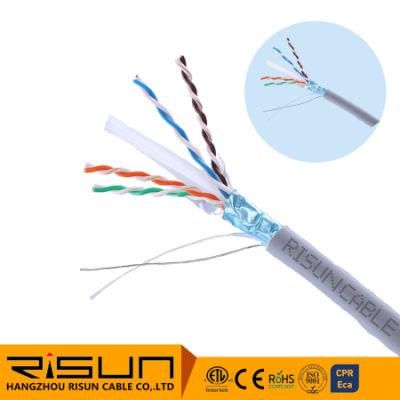

Shielded High Quality Cat7 LAN Cable

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.



Production line:



Shielded High Quality Cat7 LAN Cable

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.


                                                        WELCOME TO RISUN!!!



Our Tenet: If we can not be the best, we be the most suitable.
