Network Cable Paired UTP Cat5e
Hangzhou Risingsun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Long Distance Symmetric Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC,PE,LSZH
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：UTP CAT5e
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, ETL Reach
- Model：LAN Cable
- Brand：RS or OEM
- Color：Grey, Blue, Red, Black etc
- Reference Standard：UL444, Tia,Eia-568b
- UV/Jelly/Fr：Available
- Rip Cord：500d, 1000d
- Foil：Pet Tape+ Drain Wire+Al Foil
- Transport Package：Pull Box,Polybag,Shrink Wrap,Wooden Drum,Pallet
- Specification：BC, CCS, CCA, TC, Al, Foam PE, PVC, PE, LSZH
- Trademark：RS or OEM
- Origin：China
- HS Code：8544491100
- Production Capacity：100000km,Year
Description
Options: Jelly Compound, Jacket: UV, FR, Rohs complied.Mechanical Properties:
Electrical Properties:
Technical Performance:
Applications:
Twisted-pair cable such as Cat5e or Cat6 is a type of cabling that is used for phone systems and most modern
Ethernet networks.
A pair of wires forms a circuit in order to transmit data. The pairs are twisted to provide protection against crosstalk, which is the noise generated by adjacent pairs.
CAT-5e
This cable is used for networks and mulit-line phone systems. It has a maximum frequency of 350 MHz and can transmits up to 10/100/1000Mbps. Category 5 Enhanced (CAT-5 E) will work with ANSI/TIA/EIA 568A and ANSI/TIA/EIA 568B. It is the current standard for installing networks.

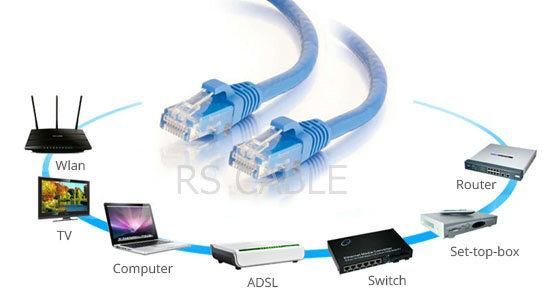

Each cable is fully tested, quality inspected, and meets all TIA/EIA Cat5e standards. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels, and provides universal connectivity for LAN network components such as PCs, computer servers, printers, routers, switch boxes, network media players, NAS, VoIP phones, PoE devices, etc.

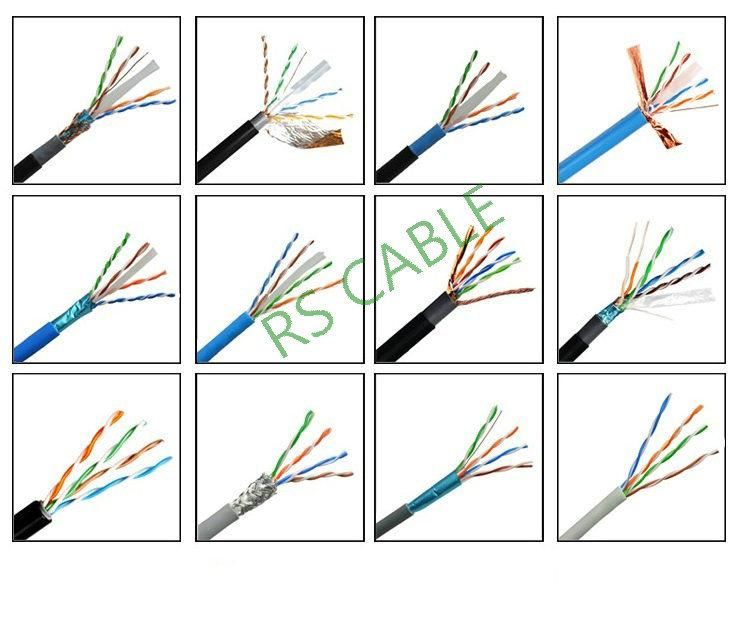

RS Network Lan Cable Specification is accordingly with AMP/SIEMON/IBM/Commscope/GCI/IBDN such as Cat5e Cat6A,CAT7 U/UTP,F/UTP,SFTP,SFTP with Messenger.

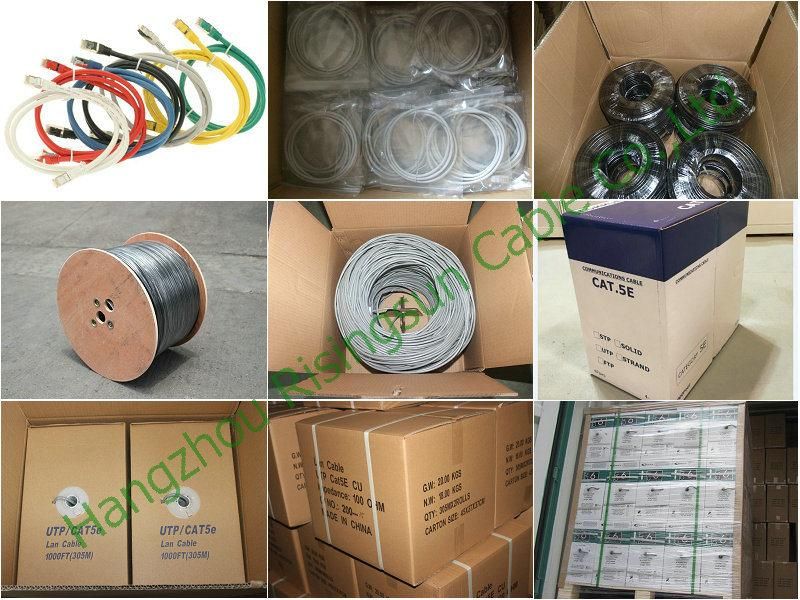

Packing & Shipping
(1) Packing Lengths:3m/5m/10m/20m/50m/100m/200m/305m/500m/1000m etc
(2) Inner Packing:Polybag,Blister,Shrink Wrap,Wooden reel,Plastic reel,or Cardboard drum
(3) Outer Packing:Carton box,Pull out box,Pallet available
(4) Other packing available according to clients' request
(5) Usually we deliver our products by SEA.
Other delivery methods are available upon request from clients.
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.
Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also supply cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A: Our factory is located inLin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
| Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile Strength | Min 1.68kg/mm² |
Electrical Properties:
| Conductor Resistance | Max. 9.5 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Capacitance Unbalance | Max. 330pF/100m |
| Impedance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity of Propagation | 67% |
| Standard | UL444,TIA/EIA568B,ISO/IEC11801 |
| Frenquency | Attenuation | RL | Next | PS Next |
| (Mhz) | (dB/100M) | (dB) | (dB) | (dB/100m) |
| 1MHz | 2.0 | 20.0 | 65.3 | 62.3 |
| 4MHz | 4.1 | 23.0 | 56.3 | 53.3 |
| 8MHz | 5.8 | 24.5 | 51.8 | 48.8 |
| 10MHz | 6.6 | 25.0 | 50.3 | 47.3 |
| 16MHz | 8.2 | 25.0 | 47.3 | 44.3 |
| 20MHz | 9.3 | 25.0 | 45.8 | 42.8 |
| 25MHz | 10.4 | 24.3 | 44.3 | 41.3 |
| 31.25MHz | 11.7 | 23.6 | 42.9 | 39.9 |
| 62.5MHz | 17.0 | 21.5 | 38.4 | 35.4 |
| 100MHz | 22.0 | 20.1 | 35.3 | 32.3 |
