High Tensile Zinc Coated Steel Wire Strand
People's Cable Group Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Galvanized Steel Wire
- Sheath Material：Bare
- Insulation Material：Bare Conductor
Base Info
- Model NO.：galvanized steel wire strand
- Material Shape：Round Wire
- Range of Application：Binding Wire
- Certification：ISO9001, CCC
- Brand：Rmjt
- Size：1.0mm-4.5mm
- Standard：ASTM, IEC,BS
- Tensile Strength：1000MPa--2300MPa
- Delivery：9-20days
- Transport Package：Coil, Spool, Big Coil Packing
- Specification：6.0mm to 23.8mm
- Trademark：RMJT
- Origin：China
- HS Code：7312100000
- Production Capacity：5000000km,Year
Description
Approx. Weight Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300 mm kN kN kN kN kN kN kN kg/km 3/1.80 3.9 2.65 3.66 - - - - - 60 3/2.65 5.7 5.80 7.95 - - - - - 130 3/3.25 7 8.70 11.95 - - - - - 195 3/4.00 8.6 13.20 18.10 - - - - - 295 4/1.80 4.4 3.55 4.90 - - - - - 80 4/2.65 6.4 7.70 10.60 - - - - - 172 4/3.25 7.9 11.60 15.90 - - - - - 260 4/4.00 9.7 17.60 24.10 35.20 - - - - 390 5/1.50 4.1 3.10 4.24 6.18 - - - - 69 5/1.80 4.9 4.45 6.10 8.90 - - - - 95 5/2.65 7.2 9.65 13.25 19.30 - - - - 220 5/3.25 8.8 14.50 19.90 29.00 - - - - 320 5/4.00 10.8 22.00 30.15 43.95 - - - - 490 7/0.56 1.7 0.60 0.83 1.20 - 1.70 1.98 2.24 14 7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.60 28 7/0.85 2.6 1.39 1.90 2.80 - 3.95 4.57 5.15 31 7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.80 35 7/1.00 3 1.92 2.64 3.85 - 5.50 6.32 7.15 43 7/1.25 3.8 3.01 4.10 6.00 - 8.55 9.88 11.15 67 7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14.00 84 7/1.60 4.8 4.90 6.75 9.85 11.95 14.10 16.20 18.30 110 7/1.80 5.4 6.23 8.55 12.45 - 17.80 20.50 23.20 140 7/2.00 6.0 7.70 10.55 15.40 - 22.00 25.30 28.60 170 7/2.36 7.1 10.70 14.70 21.40 - 30.60 35.20 39.80 240 7/2.65 8.0 13.50 18.50 27.00 - 38.60 44.40 50.20 300 7/3.00 9.0 17.30 23.75 34.65 - 49.50 56.90 64.30 392 7/3.15 9.5 19.10 26.20 38.20 - 54.55 62.75 70.90 430 7/3.25 9.8 20.30 27.85 40.65 - 58.05 66.80 75.50 460 7/3.65 11.0 25.60 35.15 51.25 - 73.25 84.20 95.20 570 7/4.00 12.0 30.90 42.20 61.60 - 88.00 101.00 114.00 690 7/4.25 12.8 34.75 47.65 69.50 - 99.30 114.00 129.00 780 7/4.75 14.0 43.40 59.45 86.80 - 124.00 142.70 161.30 970 19/1.00 5.0 5.22 7.16 10.45 - 14.92 17.16 19.40 120 19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180 19/1.40 7.0 10.24 14.04 20.47 - 29.25 33.64 38.02 230 19/1.60 8.0 13.37 18.35 26.75 - 38.20 43.93 49.66 300 19/2.00 10.0 20.90 28.65 41.78 50.74 59.69 68.64 77.60 470 19/2.50 12.5 32.65 44.80 65.29 79.28 93.27 107.30 121.30 730 19/3.00 15.0 47.00 64.50 94.00 114.10 134.30 154.50 174.60 1050 19/3.55 17.8 65.80 90.27 131.60 159.90 188.00 216.30 244.50 1470 19/4.00 20.0 83.55 114.60 167.10 203.00 238.70 274.60 310.40 1870 19/4.75 23.8 117.85 161.40 235.70 286.00 336.70 387.20 437.70 2630
Technical Data

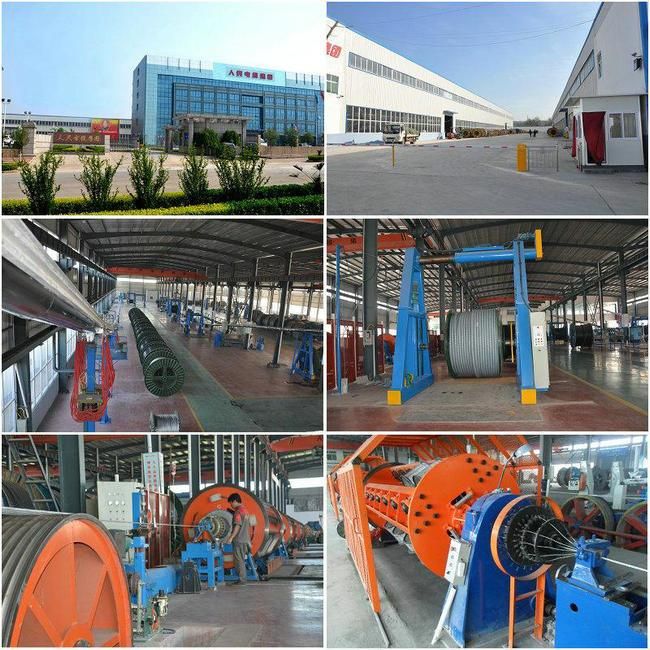

Production process
GSW producing process is drawing stranding and cabling, our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.

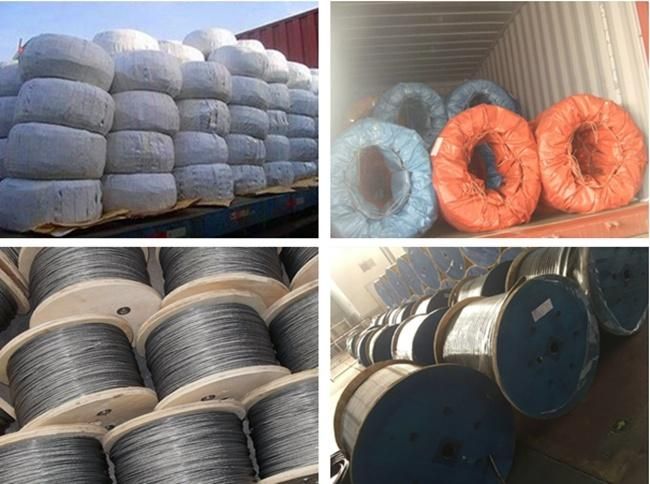

Package
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
About us
People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Our mainly products as follow:
1--pvc insulated electric wire whatever copper conductor,aluminum conductor, CCA(copper clad aluminum), CCS(copper clad steel).
2--pvc and xlpe insulated power cable with or without armor upto 35kv.
3--rubber cable like welding cable, mine cable, EPR cable and so on.
4--aerial bundled cable(ABC cable) up to 10kv.
5--bare conductor like AAC, AAAC, ACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire, PC steel wire and so on.
Certificate
As top rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you.
With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win business relationship!
FAQ
I didn't find the cable which I need in this page?
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Are you a trading company or manufacture?
RMJT is a professional manufacturer in Henan, China.
What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless its customed-made.
Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality.sample is free but the freight charge should be paid.
How long get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days
How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.
How is the payment?
T/T, L/C is accepted.
What is the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your inquiry! Any question please feel free to contact me.
Technical Data
| Intensity level | Wire diameter | Min. tensile strength | Min. stress with 1% extension | Min. extension percentage when L=250 | Min. No. of 3600 twist |
| mm | Mpa | Mpa | % | ||
| General | 1.24~2.25 | 1340 | 1170 | 3.0 | 16 |
| 2.25~2.75 | 1310 | 1140 | 3.0 | 16 | |
| 2.75~3.00 | 1310 | 1140 | 3.5 | 16 | |
| 3.00~3.50 | 1290 | 1100 | 3.5 | 14 | |
| 3.50~4.25 | 1290 | 1100 | 4.0 | 12 | |
| 4.25~4.75 | 1290 | 1100 | 4.0 | 12 | |
| 4.75~5.50 | 1290 | 1100 | 4.0 | 12 | |
| High | 1.24~2.25 | 1450 | 1310 | 2.5 | 16 |
| 2.25~2.75 | 1410 | 1280 | 2.5 | 16 | |
| 2.75~3.00 | 1410 | 1280 | 3.0 | 16 | |
| 3.00~3.50 | 1410 | 1240 | 3.0 | 14 | |
| 3.50~4.25 | 1380 | 1170 | 3.0 | 12 | |
| 4.25~4.75 | 1380 | 1170 | 3.0 | 12 | |
| 4.75~5.50 | 1380 | 1170 | 3.0 | 12 | |
| Very high | 1.24~2.25 | 1620 | 1450 | 2.0 | 14 |
| 2.25~2.75 | 1590 | 1410 | 2.0 | 14 | |
| 2.75~3.00 | 1590 | 1410 | 2.5 | 12 | |
| 3.00~3.50 | 1550 | 1380 | 2.5 | 12 | |
| 3.50~4.25 | 1520 | 1340 | 2.5 | 10 | |
| 4.25~4.75 | 1520 | 1340 | 2.5 | 10 | |
| 4.75~5.50 | 1520 | 1270 | 2.5 | 10 |
