0.6/1kv 4 Core Armoured Cable 120mm PVC Armoured Power Cable

HENAN BAOFENG CABLE CO., LTD.
  • Application：Construction, Underground, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Power Cable
  • Wire Core Material：Red Copper Wire
  • Certification：ISO, CCC, CE, RoHS
  • Model：VV32
  • Brand：Hnbf Cable
  • Colour：Black Red Yellow Green
  • Rated Voltage：0.6,1kv,10kv,11kv
  • Standard：IEC, ASTM, IEC, BS, DIN, GB,T etc
  • Operating Temperature Range：75°c for PE or 90°c for XLPE
  • Number of Cores：1 Core, 2 Core, 3 Core, 3+1 Core, 4 Core, 3+2core
  • Class of Conductor：Class 2
  • Insulation：XLPE,PVC
  • Conductor：Copper,Aluminum
  • Armour：Na,Sta,Swa
  • Sample：Free Sample
  • Transport Package：Wooden,Steel Drum
  • Specification：10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 1
  • Trademark：HNBF Cable
  • Origin：China Henan
  • HS Code：8544492100
  • Production Capacity：500 Kilometer,Kilometers Per Month

Description

1 core (mm2)2 core (mm2)3 core (mm2)3 core + 1 core (mm2)4 core (mm2)3 core+ 2 core (mm2)4 core + 1 core (mm2)5 core (mm2)1×42×43×43×4+1×2.54×43×4+2×1.54×4+1×2.55×2.51×62×63×63×6+1×44×63×6+2×44×6+1×45×41×102×103×103×10+1×64×103×10+2×64×10+1×65×61×162×163×163×16+1×104×163×16+2×104×16+1×105×101×252×253×253×25+1×164×253×25+2×164×25+1×165×161×352×353×353×35+1×164×353×35+2×164×35+1×165×251×502×503×503×50+1×254×503×50+2×254×50+1×255×351×702×703×703×70+1×354×703×70+2×354×70+1×355×501×952×953×953×95+1×504×953×95+2×504×95+1×505×701×1202×1203×1203×120+1×704×1203×120+2×704×120+1×705×951×1502×1503×1503×150+1×704×1503×150+2×704×150+1×70 1×1852×1853×1853×185+1×954×1853×185+2×954×185+1×95 1×240 3×2403×240+1×1204×2403×240+2×1204×240+1×120 1×300 3×3003×300+1×1504×3003×300+2×150  1×400       1×500


Service Conditions And Parameters Of Cable:
The maximum conductor operating temperature: 90ºC;
Short Circuit Temperature      250ºCNot more than 5 secretary
Environmental Temperature of operating
In air: 40ºC,  Underground:  25ºC
Depth of laying in direct: 80cm
Thermal Resistance of soil: 1.2ºC.cm/W
Environment temperature should be no lower than 0ºC for laying the cable.

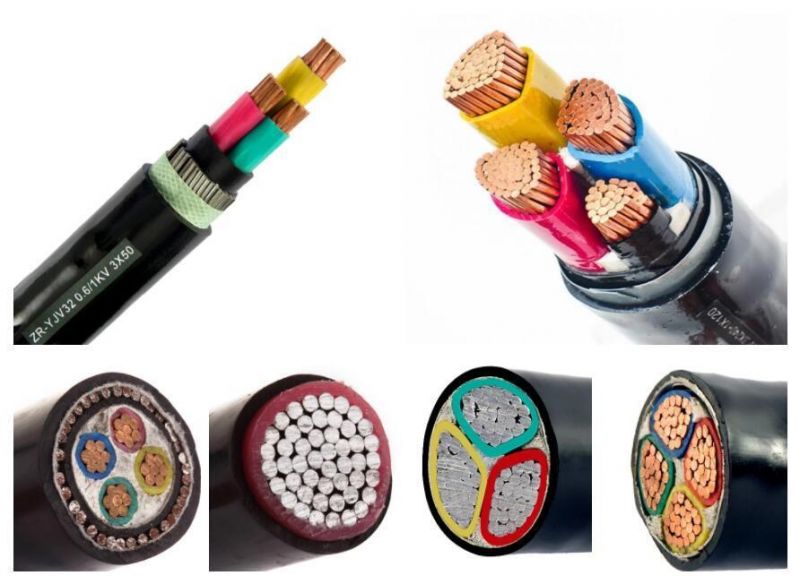

Some pictures of Power Cable

  0.6/1kv 4 Core Armoured Cable 120mm PVC Armoured Power Cable

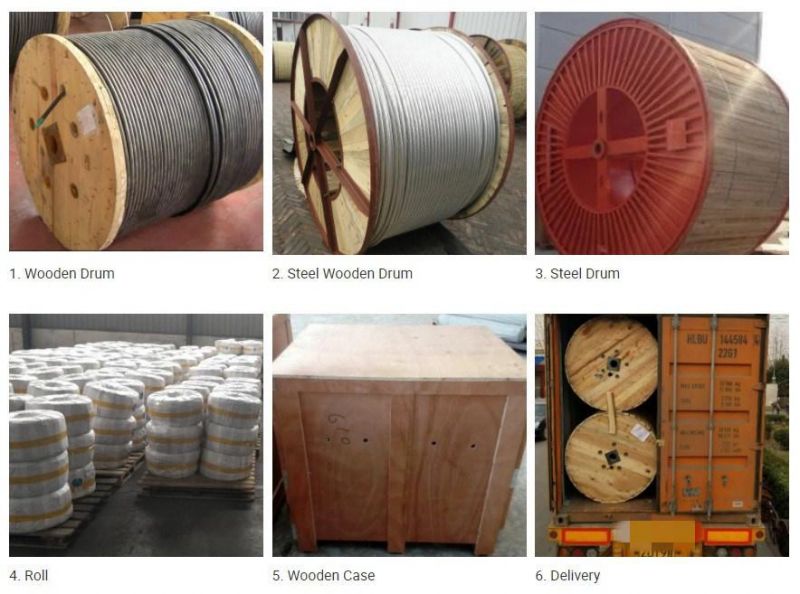

Packaging & Shipping

Packing Details  : Wooden Drum, Steel Wooden Drum, Steel Drum, Roll, Wooden Case or your requirement.

Delivery Details : 3-30 days.
0.6/1kv 4 Core Armoured Cable 120mm PVC Armoured Power Cable

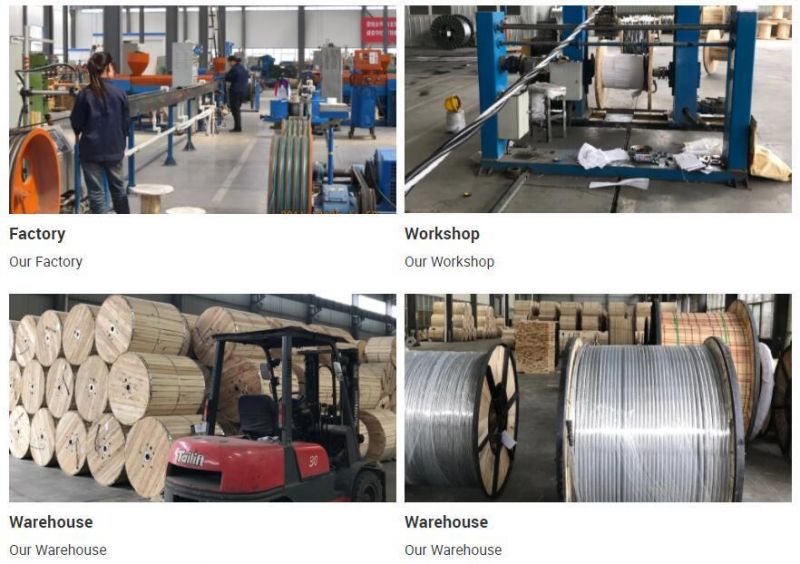

Company Information

Our main products:

* ABC Cables including 1kV, 10kV and 35kV with sizes 10sqmm to 240sqmm, 1 to 5 cores.

* Power Cable including low voltage and high voltage up to 35kV and lower.

Our the other products:

*The other cables including AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW, Guy Wire, Stay Wire, Aluminum Clad Wire, OHGW Wire, Electrical Wire, THW, THHN, THWN etc.
0.6/1kv 4 Core Armoured Cable 120mm PVC Armoured Power Cable

Why Choose Us

1. Strict quality control system, excellent quality with reasonable price.

2. Strong and Professional R&D team to meet your specific needs.

3. Rapid delivery and feedback. Faster lead time than our competitors.

4. OEM service available based on official & legal authorization.

5. Free sample is available.

6. Appointed shipping company is acceptable.
