• Model NO.：ABC cable
• Wire Core Material：Aluminium
• Certification：ISO, CCC, CE, RoHS, UL
• Model：Jklyj
• Brand：Yifang
• Rated Voltage：600V~1kv
• Neutrol Core Insulation：PVC, PE, HDPE, XLPE or Bare
• Neutral Messenger：AAC,AAAC,ACSR
• Number of Core：Multi Core
• Transport Package：Coil, Reel, Drum
• Specification：customized for your requirements
• Trademark：Yifang or customized
• Origin：Henan Zhengzhou
• HS Code：8544492100
• Production Capacity：3000 Km,Year

Basic Info.

Model NO. ABC cable Wire Core Material Aluminium Certification ISO, CCC, CE, RoHS, UL Model Jklyj Brand Yifang Rated Voltage 600V~1kv Neutrol Core Insulation PVC, PE, HDPE, XLPE or Bare Neutral Messenger AAC/AAAC/ACSR Number of Core Multi Core Transport Package Coil, Reel, Drum Specification customized for your requirements Trademark Yifang or customized Origin Henan Zhengzhou HS Code 8544492100 Production Capacity 3000 Km/Year

Product Description

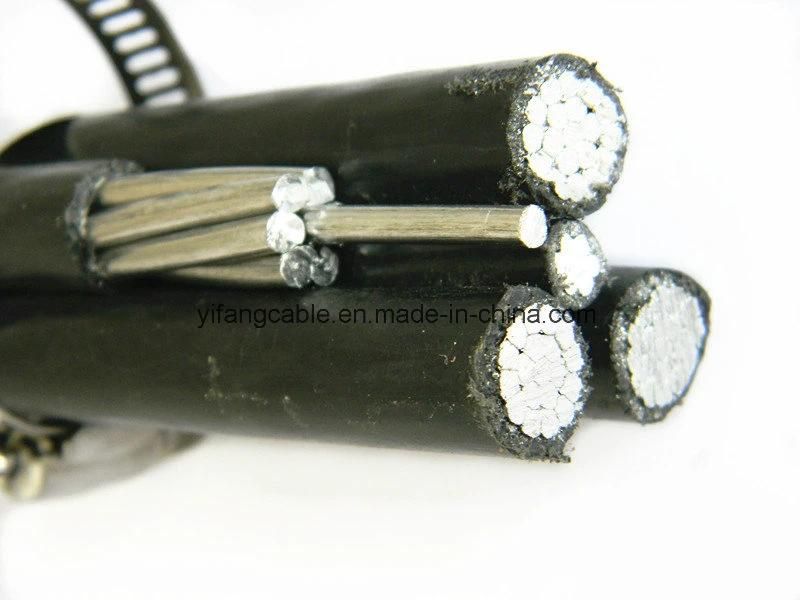

aluminum conductor electrical armoured abc cable factory price
1. 600V PE or XLPE Insulation Service Drop Cable

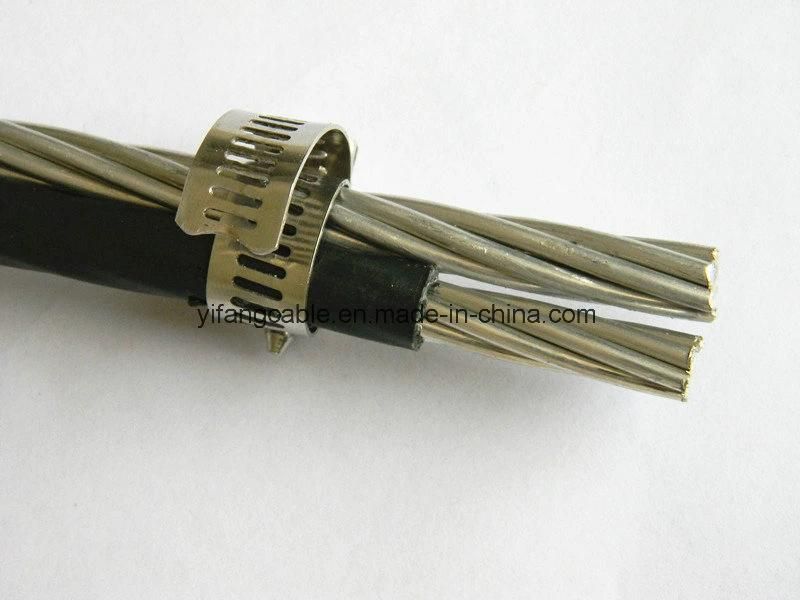

AAC/AAAC/ACSR Duplex Service Drop cable
AAC/AAAC/ACSR Triplex Service Drop cable
AAC/AAAC/ACSR Quadruplex Service Drop cable

2. 0.6/1KV XLPE INsulation Aerial Bundle Cable

All Aluminium Conductor ABC Cable
All ALuminum COnductor AAAC Neutral Conductor

Specifications
Application	To supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to pole), or street lighting. For service at 600V or lower at a maximum conductor temperature of 75ºC for polyethylene insulated cables or 90ºC for XLPE Insulation.
Rated Voltage	1000V or lower
Test Voltage	AC 3500V/1Min
Number of core	1+1core, 2+1 core, 3+1 core, 2Core, 4Core,1+1+K Core, 2+1+K Core, 3+1+K core
Maximum conductor operating temperature	PE Insulation conductor 75ºC XLPE Insulation conductor 90ºC
Color of insulation	Black and customer designated.
Core's identification	The phase of two core or more cable should be distinguished by enduring printing ink number or ridge or colour strip.
Manufactured standards	ANSI/ICEA S-76-474 Neutral-supported power cable assemblies with  weather-resistant extruded insulation rated 600V ASTM B-230 Aluminum wire, 1350-H19 for Electrical Purposes ASTM B-231 Aluminum conductors, concentric lay-stranded ASTM B-232 Aluminum conductor, concentric-lay-stranded, coated steel-reinforced(ACSR) ASTM B-399 Concentric-lay-stranded 6201-T81 aluminum alloy conductor ASTM B-498 Zinc-Coated steel core wire for ACSR NFC 33-209  0.6/1kV rated voltage overhead power system with  XLPE insulation aerial bundled conductor BS 7870.5    Polymeric insulated aerial bundled conductors(ABC) of rated Voltage 0.6/1kv overhead distribution VDE 027-626  Overhead distribution cables of rated voltage U0/U (Um):0,6/1 (1,2) kV
Conductor type	Aluminum 1350-H19, 6201-T81 or ACSR conductor or Phase Conductor: Aluminium Neutral Conductor: Aluminium Alloy or aluminium
Packing	Cable can be supplied in any length required.

Standards

IEC BS DIN VDE ASTM, etc

Other special characterisctic:

We can also design and manufacture according to customer's special requirement


Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
