• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC
• Brand：Rmjt
• Number of Wire：Solid, Two, Three..
• Transport Package：Package in Rolls or as Your Request
• Specification：1.5mm2-400mm2
• Trademark：RMJT
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：5000 Tons Each Month

Basic Info.

Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, CCC Brand Rmjt Number of Wire Solid, Two, Three.. Transport Package Package in Rolls or as Your Request Specification 1.5mm2-400mm2 Trademark RMJT Origin Henan, China HS Code 8544492100 Production Capacity 5000 Tons Each Month

Product Description

Copper Wire with PVC Insulation
 1.Application
PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).

2.Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.

3.Brief construction
1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according to the requirements of customers.

4. Service performance
1) Rated voltage: 450/750V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.

5.Specification and technical data

Type	Name
227 IEC 01 (BV)	Single-core non-sheathed cable with solid conductor for general purposes
227 IEC 02 (RV)	Single-core non-sheathed cable with flexible conductor for general purposes
227 IEC 05 (BV)	Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC
227 IEC 06 (RV)	Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC
227 IEC 07 (BV-90)	Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC
227 IEC 08 (RV-90)	Single-core non- sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC
227 IEC 10 (BVV)	Light PVC sheathed cable
227 IEC 42 (RVB)	Flat non-sheathed flexible cable
227 IEC 52 (RVV)	Light PVC sheathed flexible cable
227 IEC 53 (RVV)	Ordinary PVC sheathed flexible cable
227 IEC 74 (RVVYP)	Oil-proof PVC sheathed, screened flexible cable
227 IEC 75 (RVVY)	Oil-proof PVC sheathed, non screened flexible cable

6.Package



7.About us

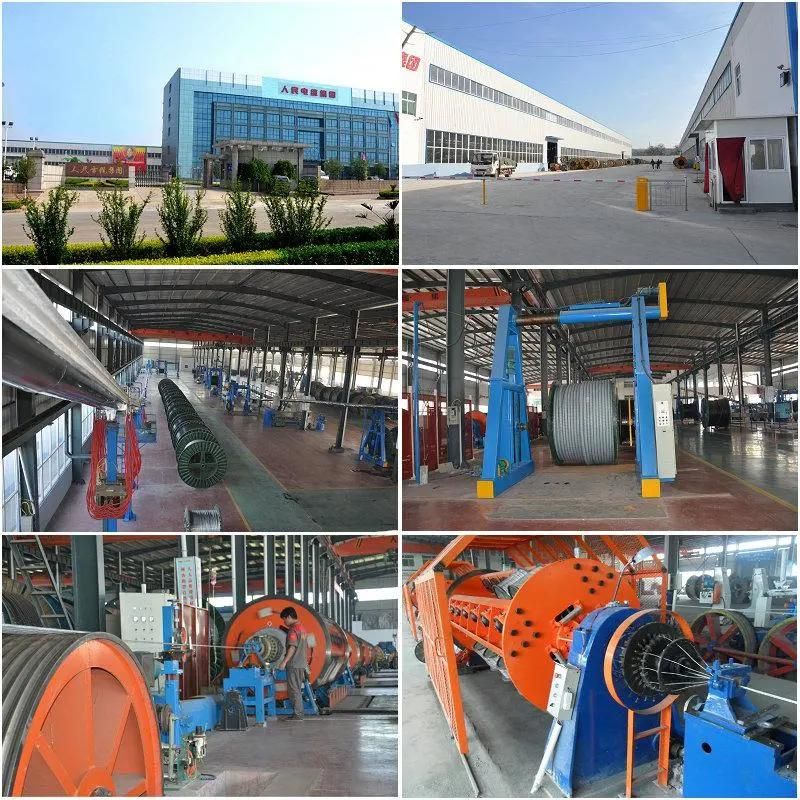

People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
